Operating elements for driving
3.1 Overview of the operating elements
3 - 28 3 112 993 en Operating manual GMK 6400
12.07.2013
3.1.12 Sockets for hand-held control

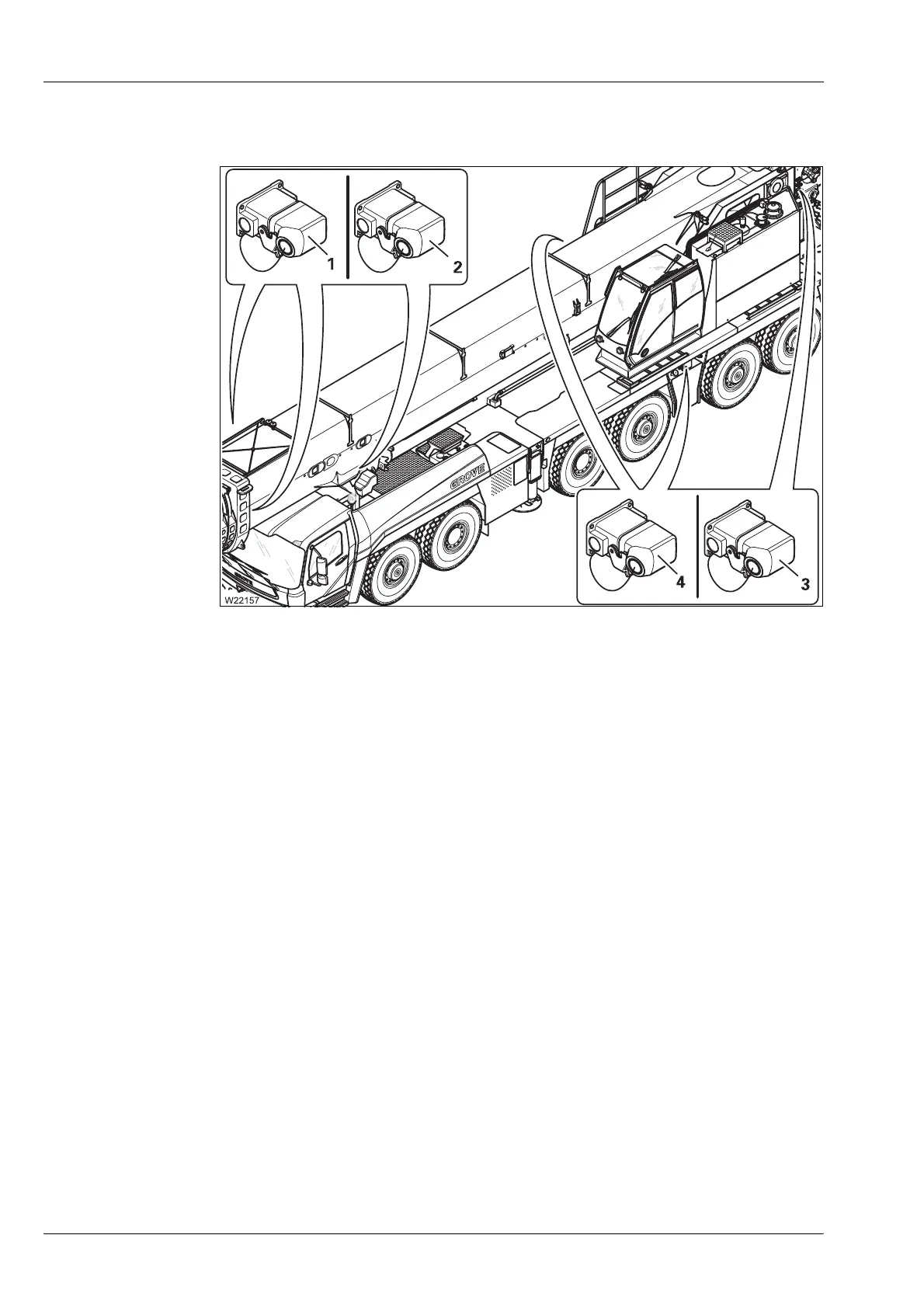

There are sockets (4) on the carrier and sockets (1) to (3) on the superstruc-
ture for the hand-held controls supplied.
The hand-held controls contain the operating elements for the outrigger,
the inclination indicator, for rigging work and for driving the power units in
case of emergency.
Since these operating elements are required for crane operation, they are
described in Part 2
Crane operation; Ã Hand-held controls, p. 9 - 49.
