Driving modes and rigging for on-road driving
6.4 Installing/removing outrigger beams
Operating manual GMK 6400 3 112 993 en 6 - 43
12.07.2013

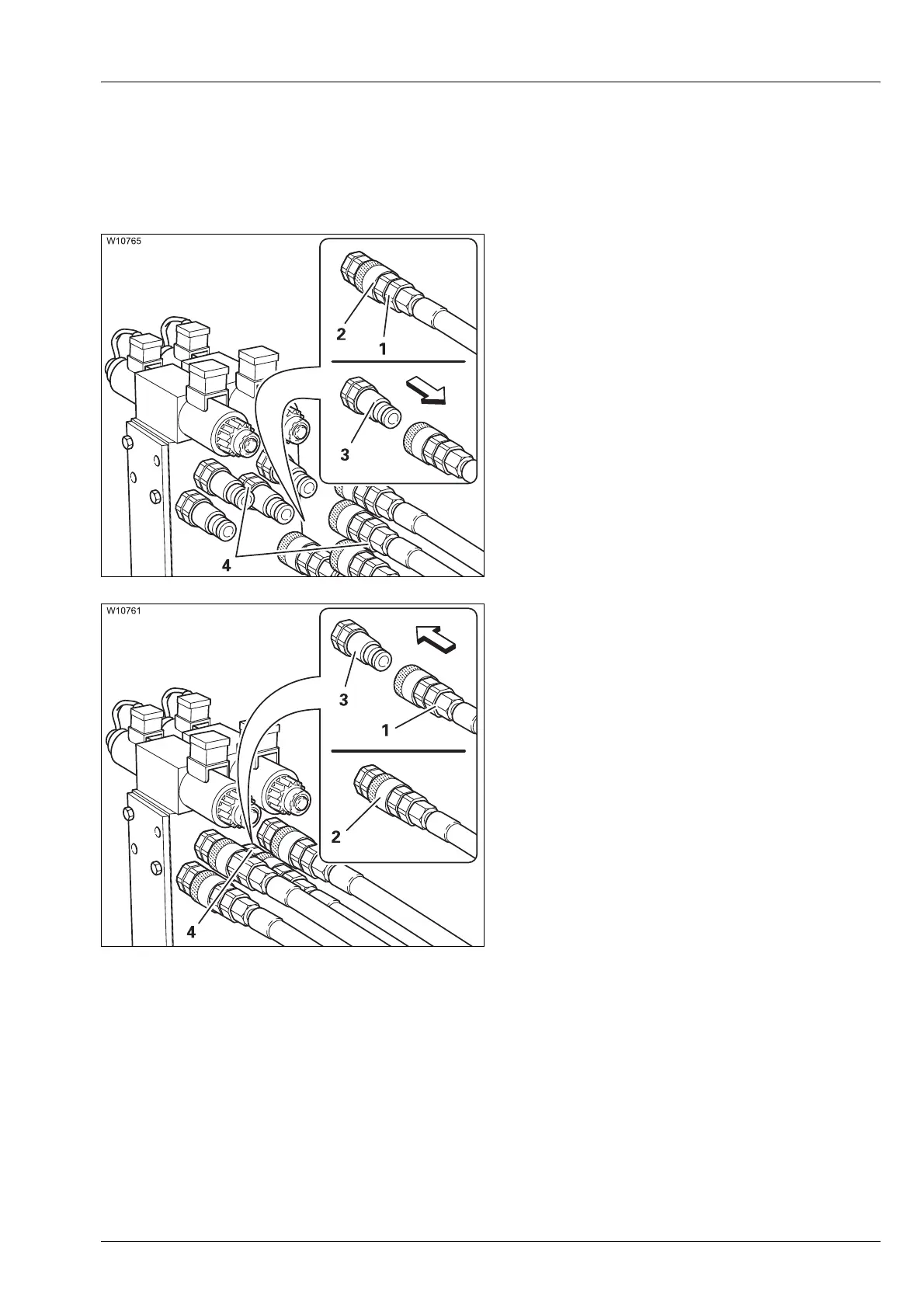

6.4.5 Disconnecting/establishing the hydraulic connection
There is a valve block on each outrigger beam. The position of the valve
block may differ from the drawings, depending on the outrigger beam.
Disconnecting
Always disconnect all connections (4).
• Hold the hose firmly (1).
• Pull the lock (2) against the stop. The hose is
pushed out of the connection (3).
• Seal all connecting points.
Establishing
Always establish all connections (4). The
assignment is differentiated by colour desig-
nations.
• Insert the hose (1) into the connection (3).
• The lock (2) engages.
