Malfunctions during crane operation
14.3 Fuses
Operating manual GMK 6400 3 112 993 en 14 - 11
12.07.2013
14.3.3 RCL fuses
When a fuse is blown, a corresponding error code is displayed; Ã Error
codes table
, p. 14 - 27.

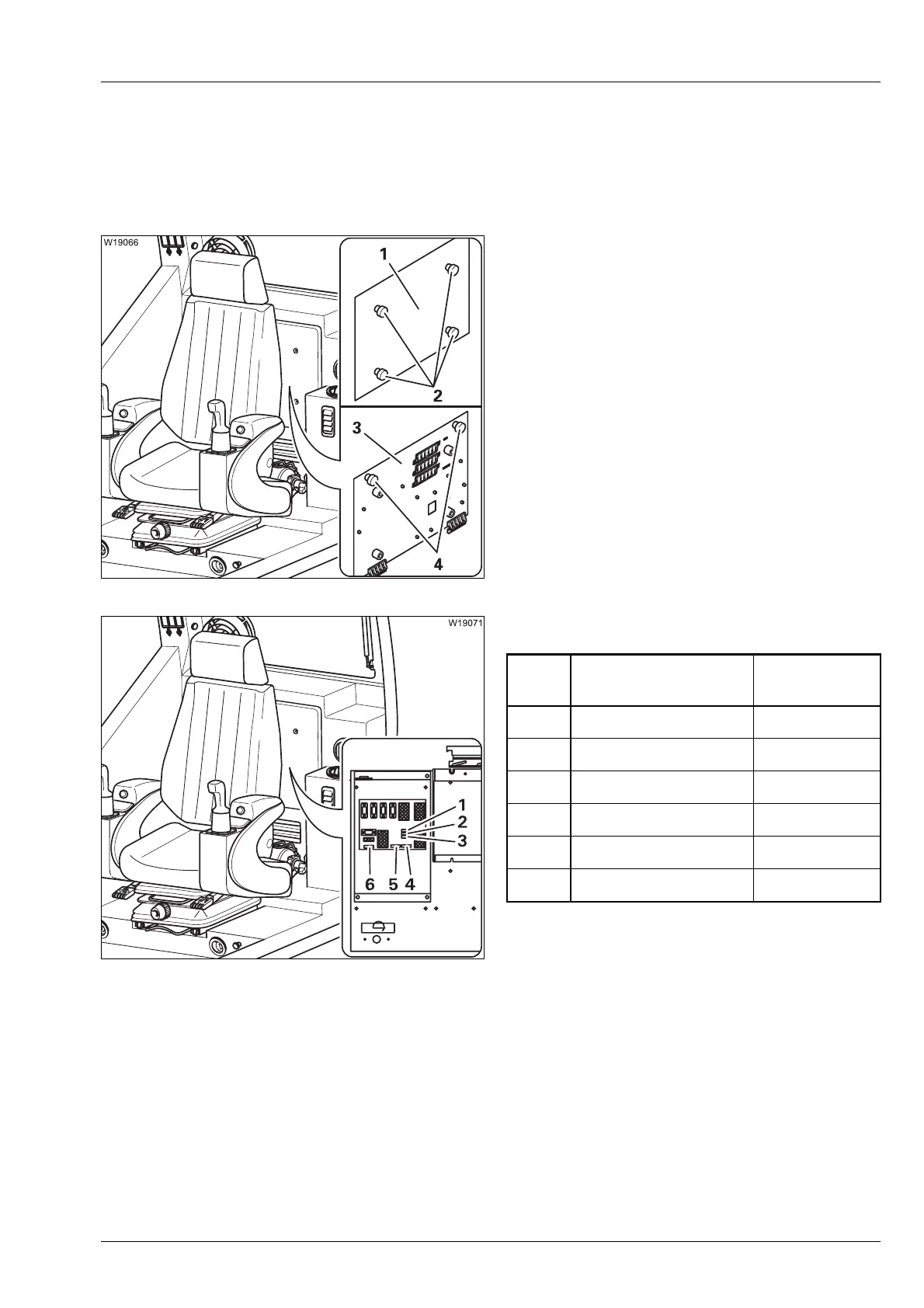

• Loosen the screws (2) and remove the cover
(1).
• Loosen the screws (4) and fold down the
plate (3) to the front.
• Observe the instructions regarding fuse
changes;
à p. 14 - 5.
Fuse arrangement on the RCL control unit:
Pos. Designation Amperage
(A)
1 Fuse F1 5
2 Fuse F2 5
3 Fuse F3 5
4 Fuse F11 5
5 Fuse F12 5
6 Fuse F6 5
