Operating elements for driving
3.2 Short description of the operating elements
Operating manual GMK 6400 3 112 993 en 3 - 47
12.07.2013
3.2.10 Final drive
à Longitudinal and transverse differential locks, p. 5 - 58
Transverse differential locks on/off
Longitudinal differential locks on/off
With additional equipment, the drive of the second axle line is switched on
and off simultaneously.
The current status is shown using different
symbols:
– Switching on: Press button 1 x – dot (1) green, maximum 20 km/h
(12 mph)
– Switching off: Press button 1 x – dot (1) black
– Switching on: Press button 1 x – dot (1) green, maximum 20 km/h
(12 mph)
– Switching off: Press button 1 x – dot (1) black

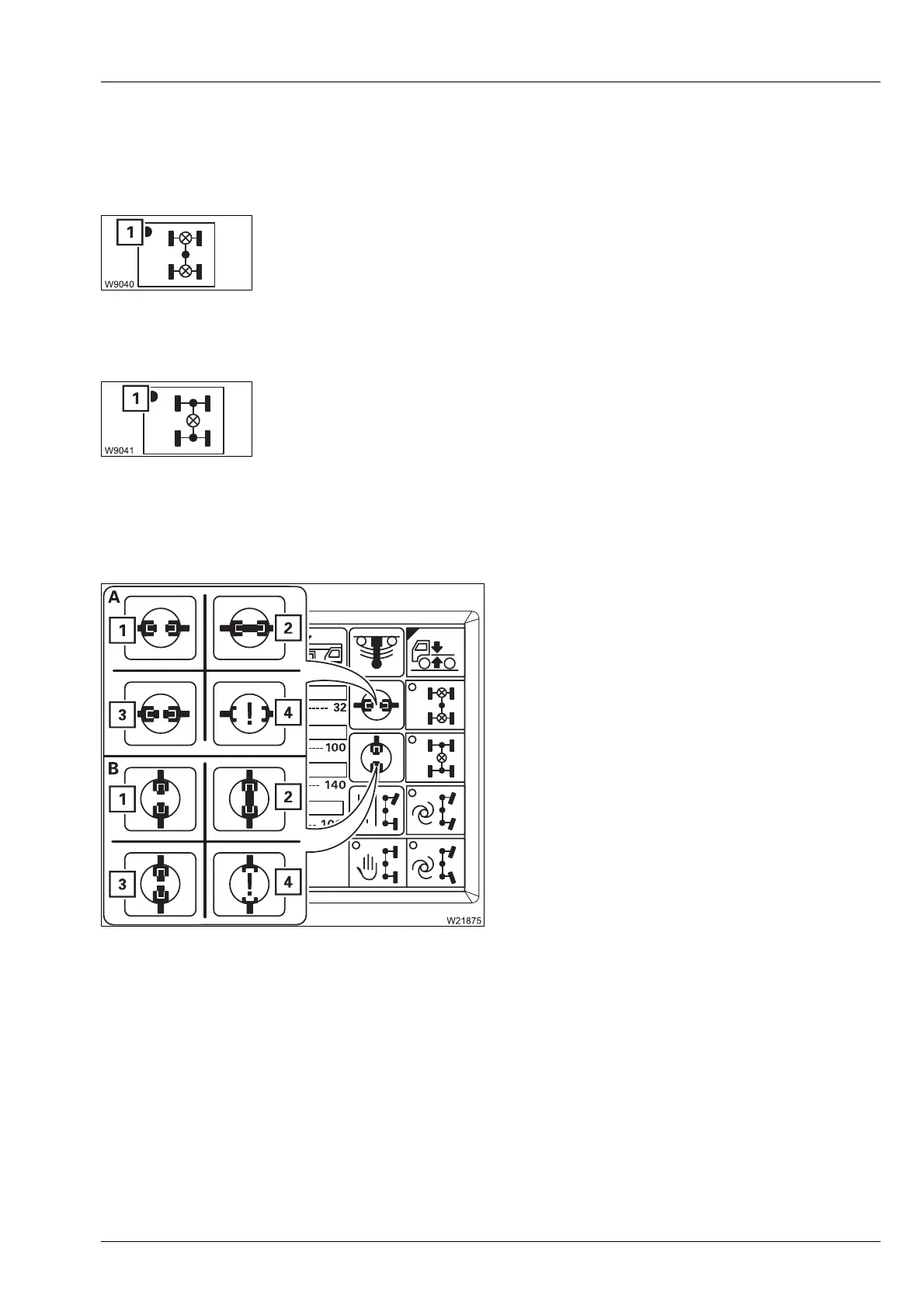

A Transverse differential locks display
B Longitudinal differential locks display
1 Green – locks off
2 Red – locks on
3 Yellow – intermediate position
4 Violet – error
