Rigging work
12.6 Outriggers
Operating manual GMK 6400 3 112 993 en 12 - 31
12.07.2013

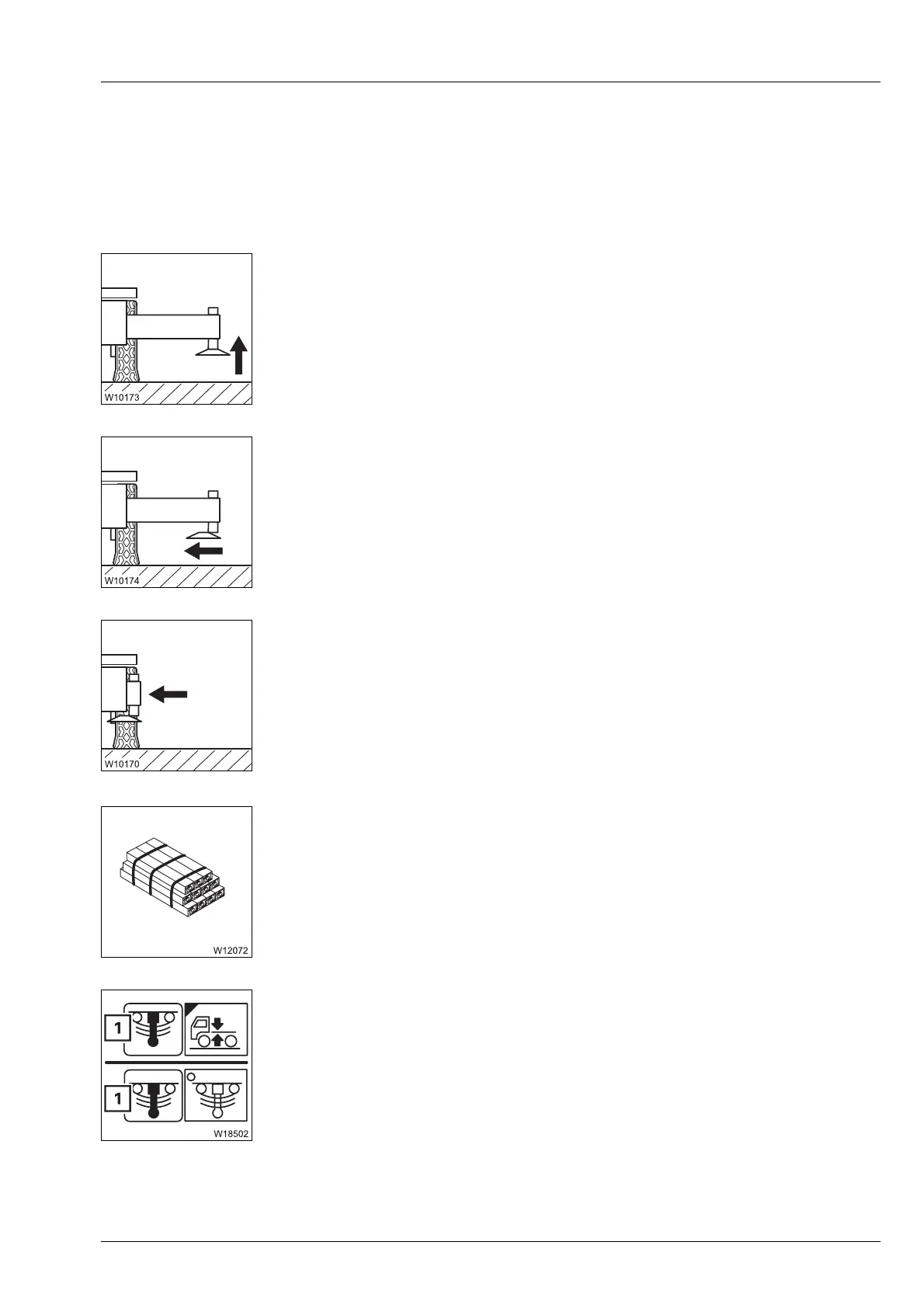

12.6.2 CHECKLIST: Retracting the outriggers
H
This checklist is not a complete operating manual. There are accompanying
operating instructions which are indicated by cross-references.
Observe the warnings and safety instructions specified there.
1. Retract the outrigger cylinders as far as possible;
à p. 12 - 45.
2. Move the outrigger pads into driving position and secure them;
à Moving them into driving position, p. 12 - 43.
3. Fully retract and secure all outrigger beams;
à Permissible outrigger spans, p. 12 - 32,
à For on-road driving, p. 12 - 36,
à Extending/retracting outrigger beams, p. 12 - 37.
4. Stow away packing material safely, if applicable.
5. Activate (unlock) the suspension.
The symbol (1) must be green (suspension on);
à p. 5 - 15.
