Rigging work
12.7 Rigging/unrigging the counterweight
Operating manual GMK 6400 3 112 993 en 12 - 81
12.07.2013

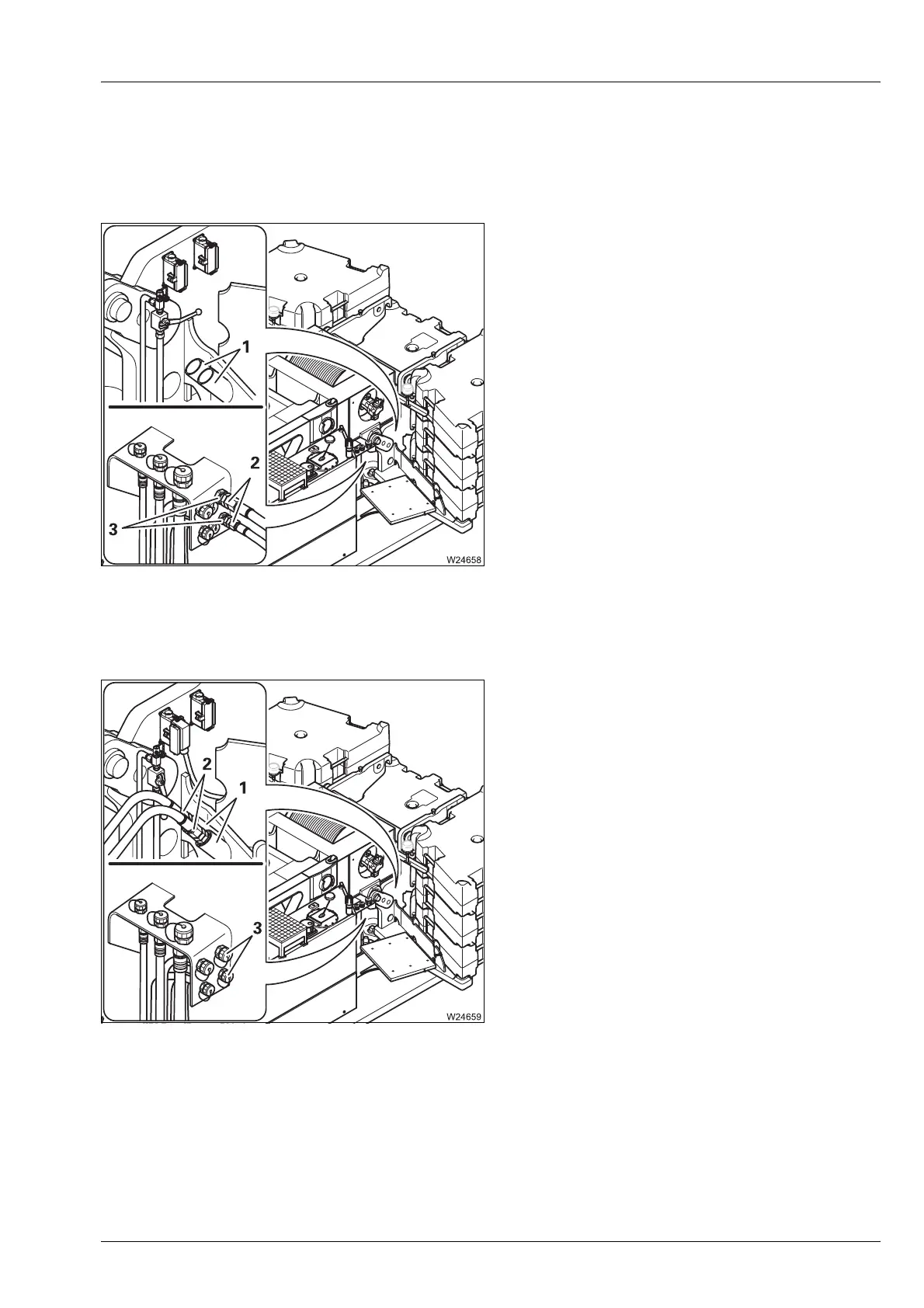

12.7.8 Establishing/disconnecting the hydraulic connection
Establishing
• Remove the caps from the ports (3).
• Remove the hoses (2) from the brackets (1)
and connect them to the ports (3).
Disconnecting You must disconnect the hydraulic connection before lifting the 15-t base
plate from the carrier.
• Remove the hoses (2) from the connections
(3).
• Close all the hoses and connections with the
caps.
• Fit the hoses (2) into the brackets (1).
