Rigging work
12.8 Rigging the auxiliary hoist
12 - 94 3 112 993 en Operating manual GMK 6400
12.07.2013
12.8.3 CHECKLIST: Mounting the auxiliary hoist
H
This checklist is not a complete operating manual. There are accompanying
operating instructions which are indicated by cross-references.
Observe the warnings and safety instructions specified there.
Requirements – The truck crane is stabilised with the outrigger span required for crane
work according to the
Lifting capacity chart; Ã Permissible outrigger spans,
p. 12 - 32,
– The required counterweight version is assembled on the counterweight
platform and is connected electrically and hydraulically;
à CHECKLIST:
Counterweight, rigging
, p. 12 - 62,
– The current rigging code of the truck crane is entered in the RCL;
à Entering the rigging mode, p. 11 - 23.
– The railings on the auxiliary hoist are folded in;
à p. 12 - 106.

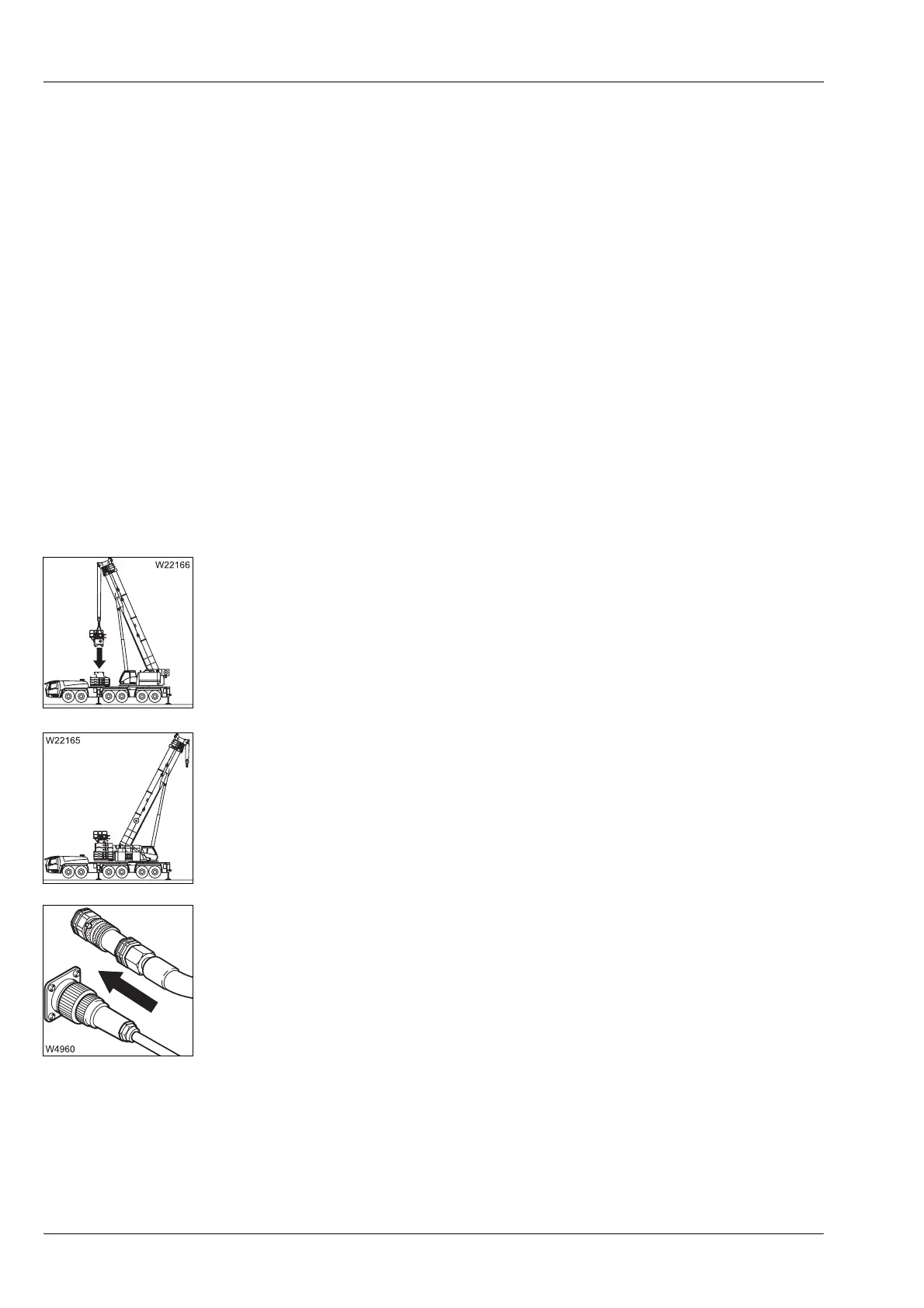

1. Sling the auxiliary hoist with the truck crane and lift up to the 15 t base
plate;
à Slinging points and transport, p. 12 - 92,
à Lifting the auxiliary hoist onto the 15 t base plate, p. 12 - 98.
2. Slew the superstructure to the rear;
à Slewing, p. 11 - 100.
3. – Complete the hydraulic connection of the auxiliary hoist;
à p. 12 - 100,
– Complete the electrical connection of the auxiliary hoist;
à p. 12 - 101.
