Driving modes and rigging for on-road driving
6.5 Installing/removing the supporting box
Operating manual GMK 6400 3 112 993 en 6 - 73
12.07.2013
6.5.12 Transporting the supporting box on the separate vehicle
•
Check that the outrigger beams are secured against extension during
transportation with the locking pin;
à p. 12 - 34.
• Move the outrigger pads into operating position; à p. 12 - 43.
• Load the outrigger box in such a way that no motorists and cyclists are
put at risk.
• Secure the outrigger box and mounting equipment with holding ropes to
prevent them from falling from the transport vehicle, slipping or damag-
ing other parts.
• Load the transport vehicle in such a way that the weight is evenly distrib-
uted.
• Transport the outrigger box only on a separate vehicle of sufficient lifting
capacity;
à Dimensions and weights of removable parts, p. 1 - 10.

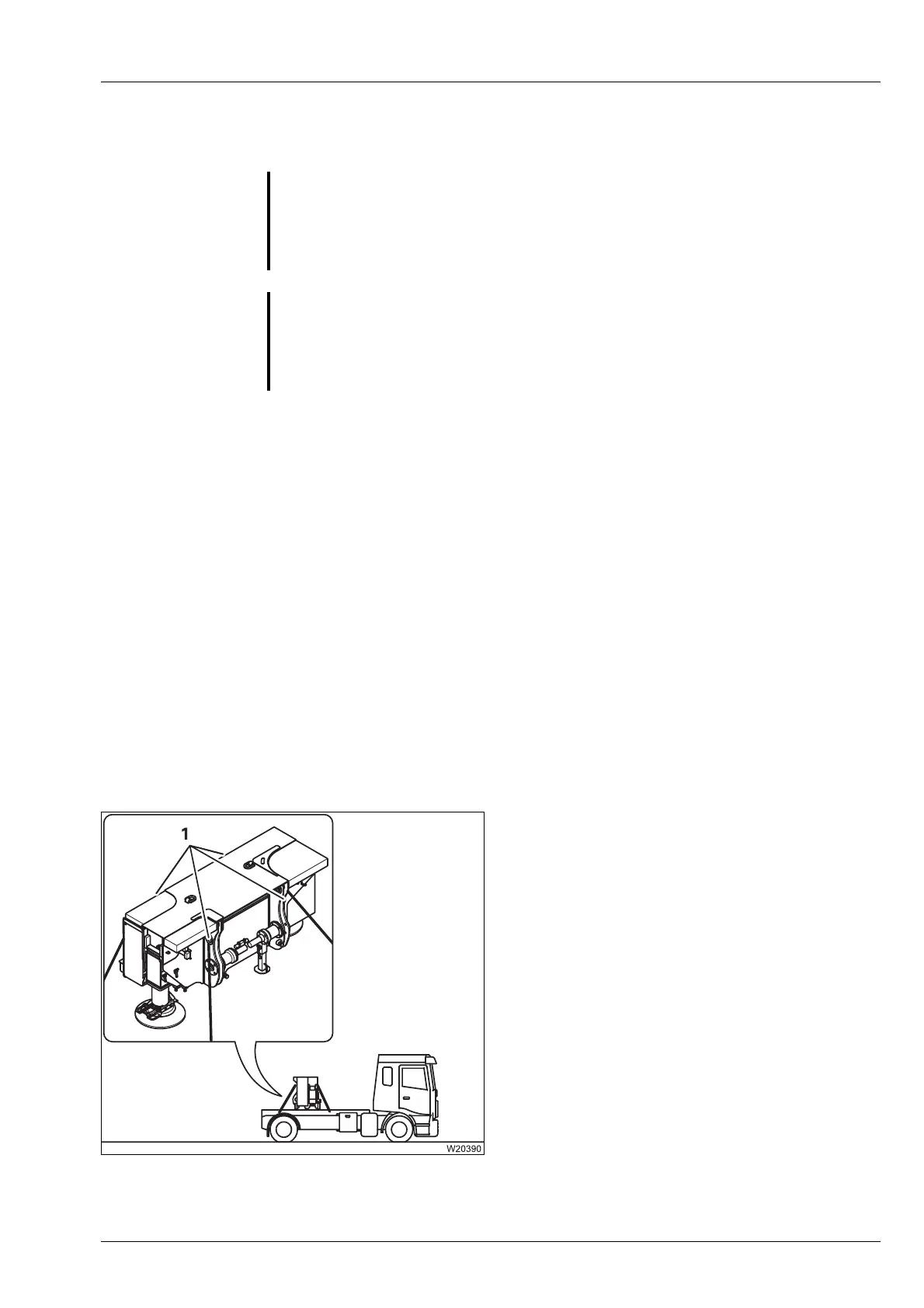

Lashing eyelets
• Fasten the supporting box for the transport
to the lashing eyelets (1) with holding ropes.
S
Risk of damage to add-on parts on the outrigger box and outrigger pads
Always secure the supporting box against slipping and overturning. This
will prevent damage.
G
Risk of accident if used improperly
For transport, attach the supporting box to the provided lashing eyelets
only and only use lifting gear of sufficient lifting capacity.
