Malfunctions during crane operation
14.3 Fuses
Operating manual GMK 6400 3 112 993 en 14 - 9
12.07.2013

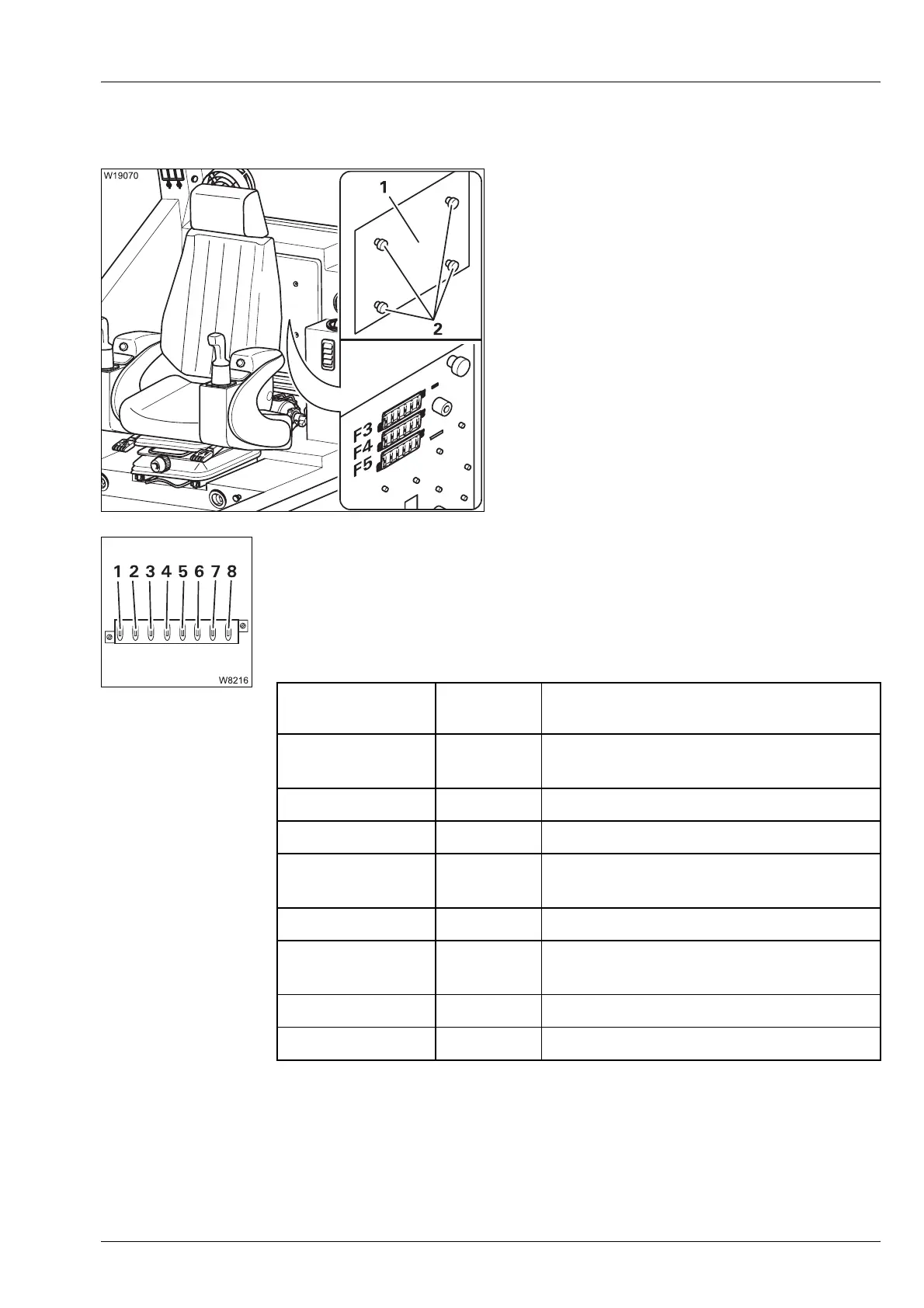

14.3.2 Fuses in the crane cab
•
Loosen the screws (2) and remove the cover
(1).
The fuse groups F3, F4 and F5 consist of eight
fuses each.
The following tables show the designations of
the individual fuses, including their amperage
and functions.
The designations 1 to 8 in the tables correspond to their order from left to
right (fuse 1 is always the left fuse).
• Observe the instructions on changing fuses; à p. 14 - 5.
s
Designation Amperage
(A)
Function
F3/1 3
ESX 2 supply
ECOS control unit supply
F3/2 2 ESX 2 supply
F3/3 10 RCL and RCL control unit supply
F3/4 5
Remote control
1)
Heating system
F3/5 20 ESX 2 supply
F3/6 5
ESX 2 supply
ECOS control unit supply
F3/7 5 Control lever supply
F3/8 5 Engine electronic system (ADM)
1)
Additional equipment
