Crane operation
11.8 CraneSTAR system
Operating manual GMK 6400 3 112 993 en 11 - 143
12.07.2013
11.8 CraneSTAR system
11.8.1 Overview
Your truck crane is equipped with the CraneSTAR system.
The CraneSTAR system is used to transmit crane data via mobile phone or
satellite and thus offers various possibilities for remote diagnostics and for
localising the truck crane.
Transmission is primarily via mobile phone (GSM). If transmission via
mobile phone is disrupted, the device will automatically switch to transmis-
sion via satellite.
The CraneSTAR system works automatically, no controls must be operated.
This document just shows the position of the associated components and
gives tips on troubleshooting.
The CraneStar system will only be activated at the request of the crane oper-
ator.
Information on viewing the transmitted data in the Internet can be found in
the separate
CraneSTAR Operating instructions and at:
www.cranestar.net – here, you will find all of the information about activat-
ing the CraneStar system.
11.8.2 Position of the components
The CraneSTAR system includes two antennas and a TCU (Telematic Con-
trol Unit = control unit for data transmission).

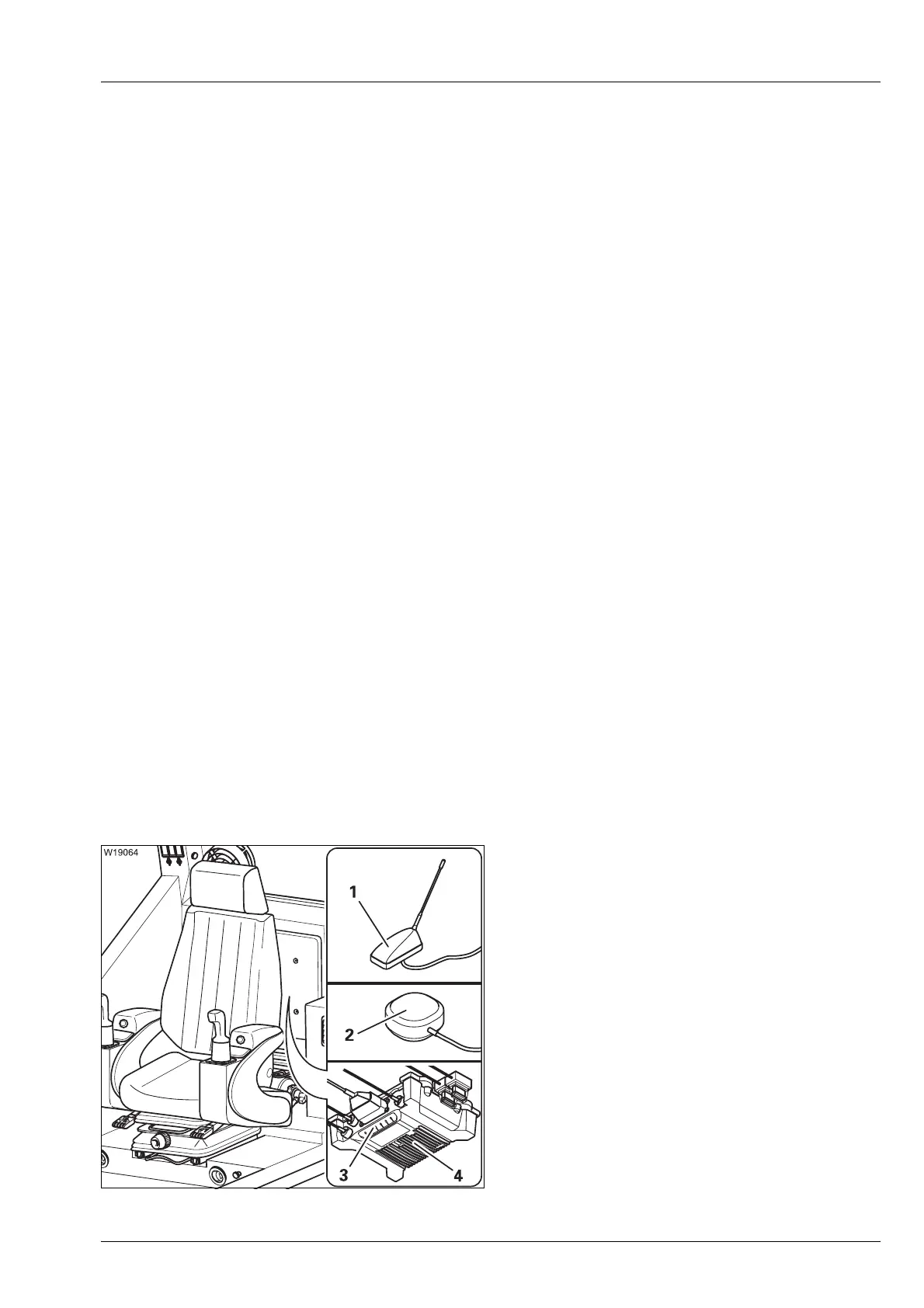

The satellite antenna (1) is located on the rear
right or left of the turntable.
The antenna (2) is a combined GSM/GPS
antenna for transmission via mobile phone
(GSM) and for the navigation system (GPS).
The antennas are connected to the
TCU (4).
The lights (3) are used for troubleshooting;
à p. 14 - 34
