Operating elements for crane operation
9.1 Overview of the operating elements
Operating manual GMK 6400 3 112 993 en 9 - 1
12.07.2013
9 Operating elements for crane operation
All operating elements for driving are described in chapter 3.
9.1 Overview of the operating elements
This section shows the position and designations of the operating elements
for crane operation. This also includes display elements such as lights or
displays.
H
Operating elements only available with additional equipment are desig-
nated accordingly. These designations are made in this section only and are
not repeated in the following sections.

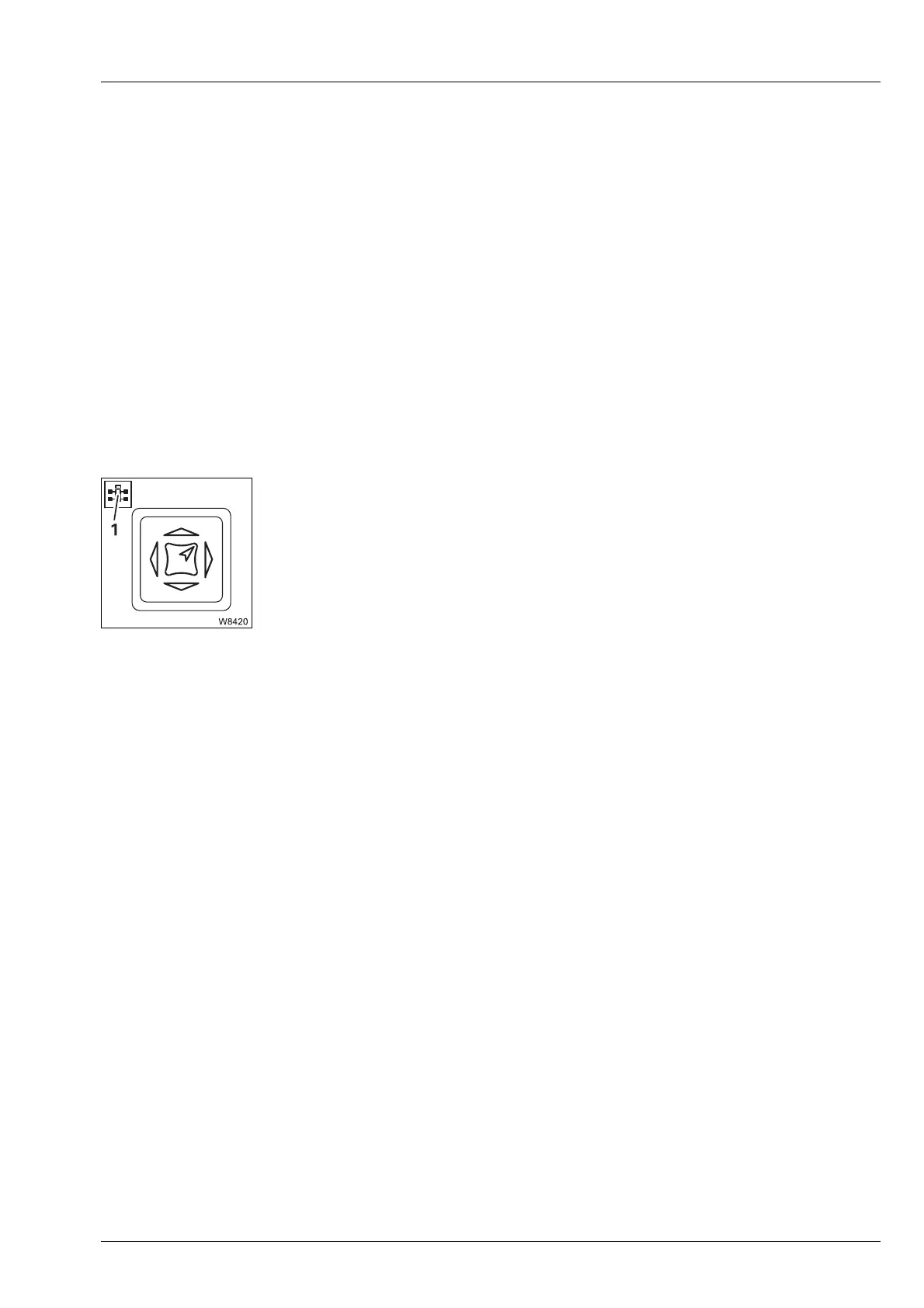

Some figures show details from a different perspective than the general
overview. The perspective is indicated in these figures by the symbol (1).
