Rigging work
12.9 Rigging work on the main boom
12 - 132 3 112 993 en Operating manual GMK 6400
12.07.2013
12.9.7 Anemometer and air traffic control light
Installing The anemometer and the air traffic control light – if provided – are located
on the same rod.

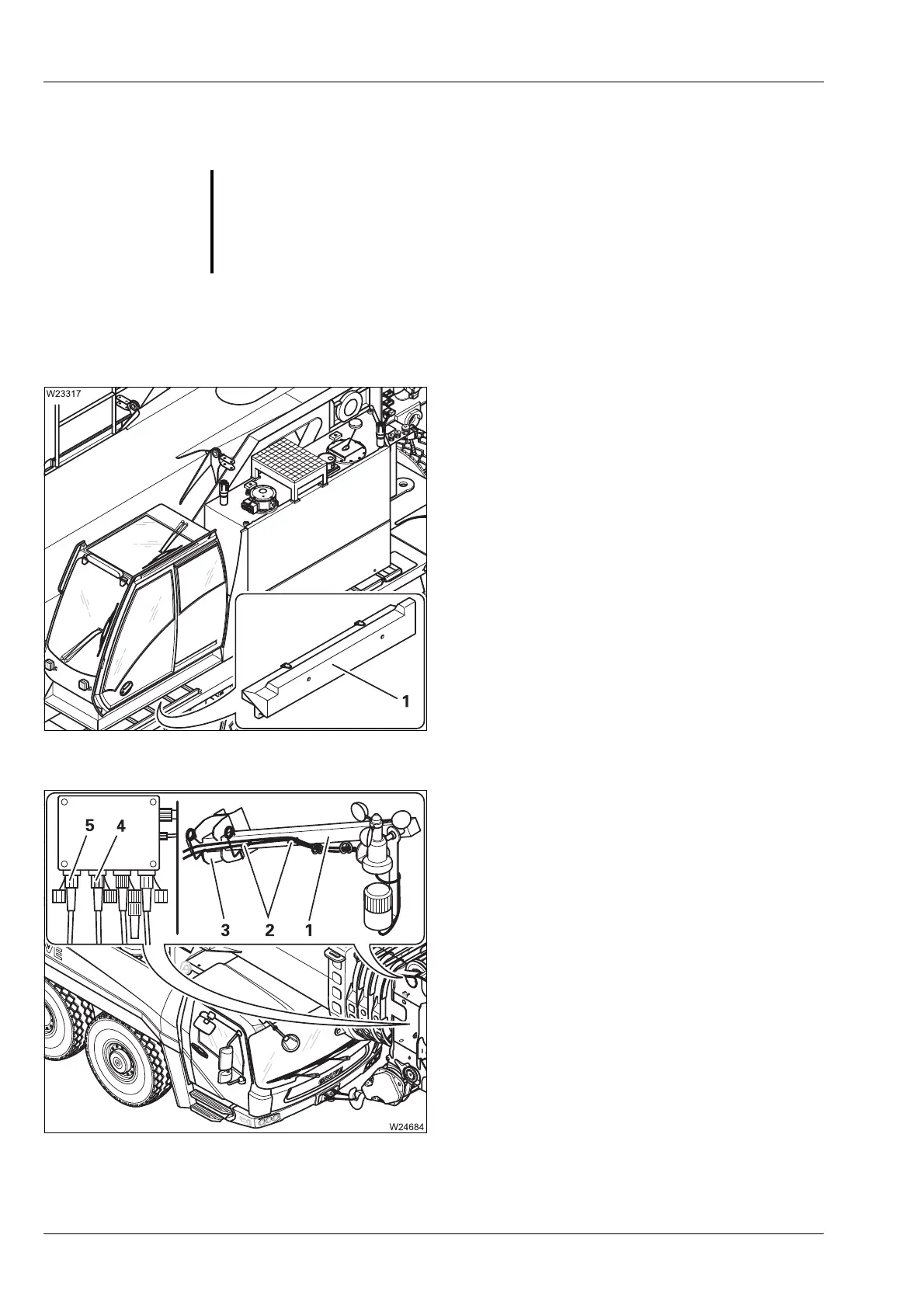

• If necessary, remove the rod out of the stor-
age compartment (1).
• Insert the rod (1) into the clamp (3) and
secure it with the retaining pins.
• Remove the cable from the holders (2) and
connect:
– The anemometer to socket (4)
– The air traffic control light to the socket (5)
• Lay the cables such that they will not be
damaged during crane operation.
• Check that the anemometer is able to swing
so that it hangs vertically even when the
main boom is raised.
S
Risk of damage during on-road driving
Always remove the anemometer and air traffic control light before on-road
driving.
This prevents the specified overall height from being exceeded at on-road
level, and the anemometer from getting damaged due to air currents.
