Operating elements for driving
3.2 Short description of the operating elements
3 - 50 3 112 993 en Operating manual GMK 6400
12.07.2013
3.2.12 Steering/separate steering
à Separate steering, p. 5 - 66

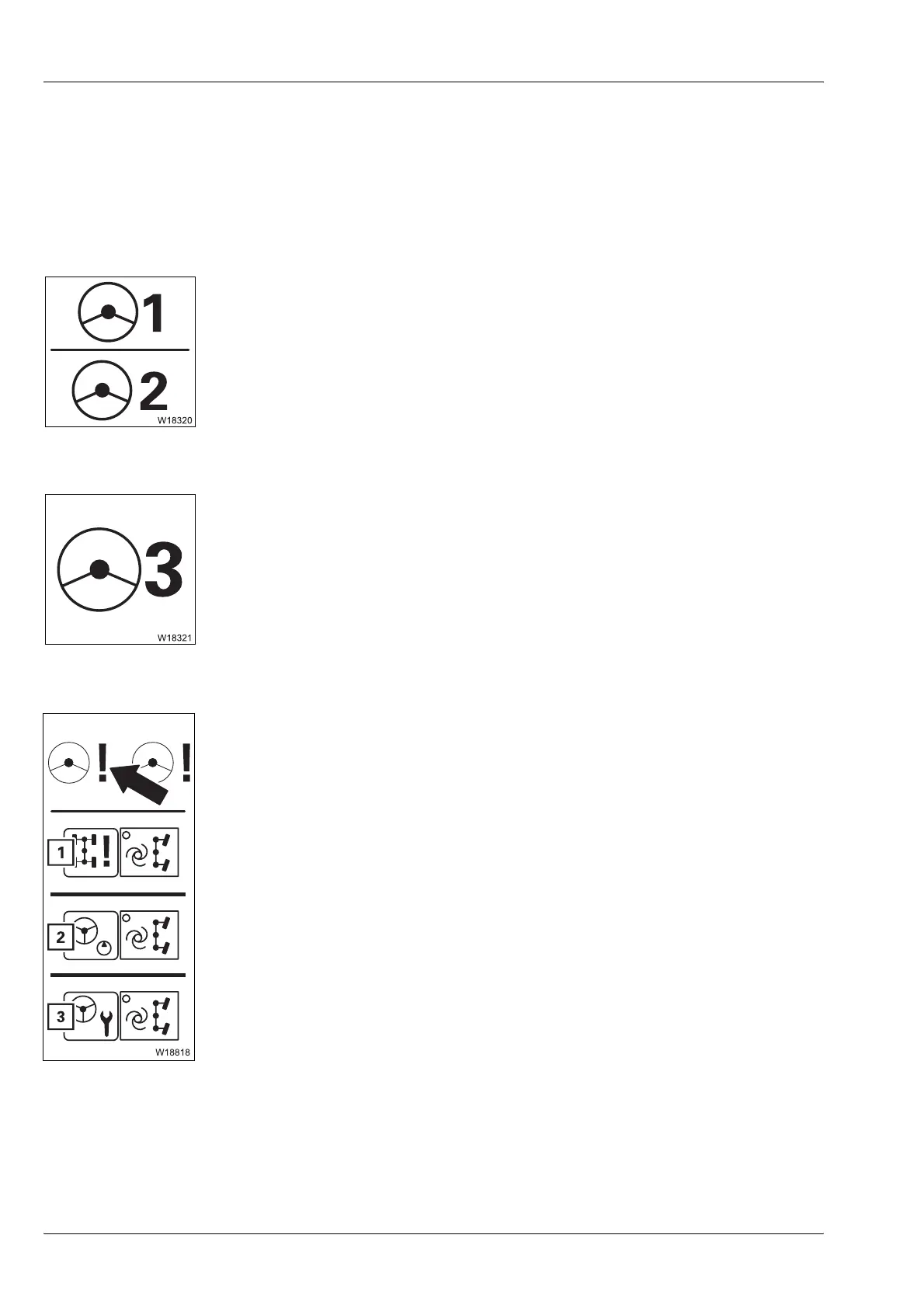

Instrument panel
Steering circuit 1 and 2 warning lamp
Emergency steering pump warning lamp
Error in steering system
–On: Engine off – ignition on
or
Engine on – malfunction, stop – check oil loss
– Off: Engine on – no malfunction
à p. 5 - 37
–On: Approx. 10 km/h (6 mph) not reached
or
Steering malfunction – stop and check for oil loss
– Off: Emergency steering pump ready to function
à p. 5 - 37
–On: Engine off – ignition on:
– Display symbol (2) – goes out after engine start
– Display symbol (3) – ignition off/on, symbol goes out
While driving:
– Display symbol (1) – 5th and 6th axle still in straight run-
ning position, forward drive possible
– Flashing: After engine start:
Steering angle on the 5th and 6th axle incorrect,
Steer front axle lines – steering angle is adapted
– Off: No error in the steering system
After engine start;
à p. 4 - 20
While driving;
à p. 5 - 37
