Driving modes and rigging for on-road driving
6.3 Removing/installing main boom
Operating manual GMK 6400 3 112 993 en 6 - 31
12.07.2013

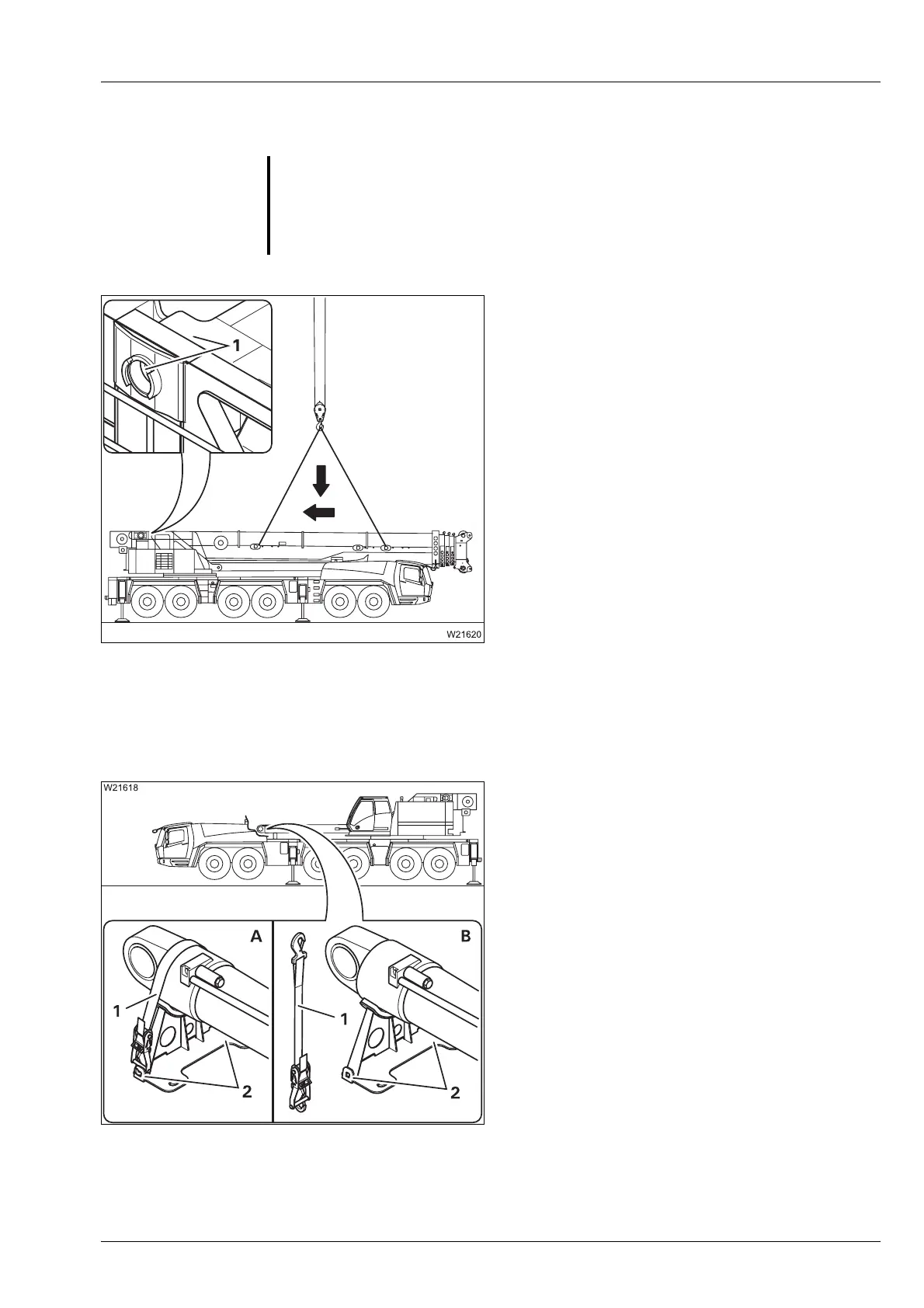

6.3.8 Aligning the connecting points
Aligning the connecting points
• Lay the hoses into the turntable in such as
way that they are not damaged during align-
ment.
• Align the main boom so that the boom pivot
pin is aligned with the bearing points (1) in
the turntable.
• Hold the main boom in this position until the
pivot pin is pushed in.
6.3.9 Securing/releasing the derricking cylinder
(A) – Securing
• Place the tightening belt (1) over the derrick-
ing cylinder and fasten it onto the
holders (2).
• Tighten the tightening belt so that the der-
ricking cylinder is secure within the support.
(B) – Releasing
• Loosen the tightening belt (1) and remove it
from the holders (2).
• Stow the tightening belt away.
S
Risk of damage to the turntable and the connection lines
Make sure that the connection lines are located within the turntable and
that the main boom does not swing when you raise it for insertion into the
turntable.
