Driving modes and rigging for on-road driving
6.3 Removing/installing main boom
Operating manual GMK 6400 3 112 993 en 6 - 15
12.07.2013

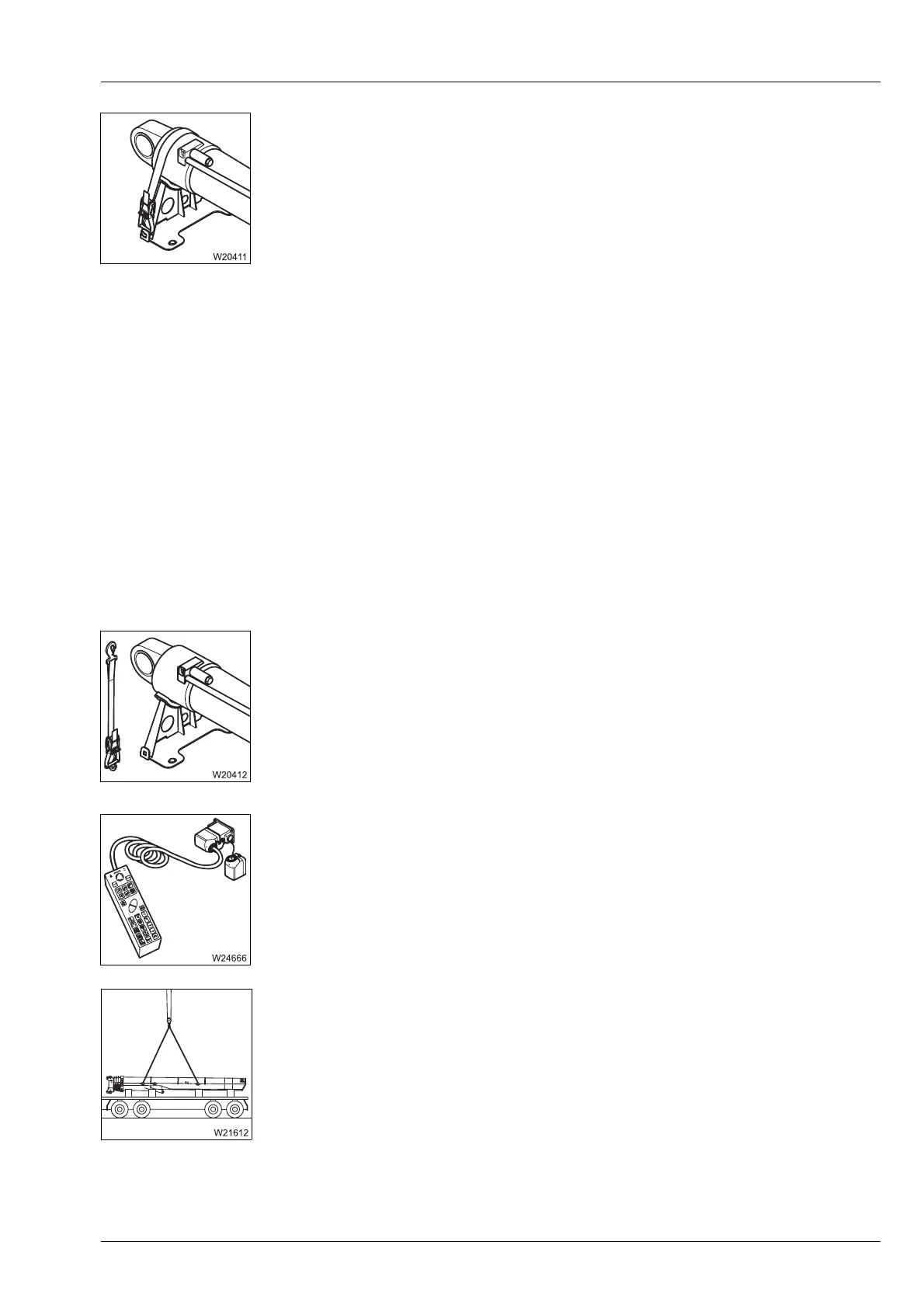

10. Secure the derricking cylinder with a tightening belt; Ã p. 6 - 31.
6.3.2 CHECKLIST: Installing the main boom
H
This checklist is not a complete operating manual. There are accompanying
operating instructions which are indicated by cross-references.
Observe the warnings and safety instructions specified there.
Requirements The truck crane is supported by an outrigger span of at least 8.70 x 2.71 m
(28.5 x 8.9 ft).
Checklist
1. Remove the tightening belt from the derricking cylinder;
à p. 6 - 31.
2. Connect the hand-held control on the turntable;
à Connecting/discon-
necting the hand-held control
, p. 12 - 21.
3. Sling the main boom to an auxiliary crane;
à p. 6 - 18.
s
