Driving modes and rigging for on-road driving
6.4 Installing/removing outrigger beams
Operating manual GMK 6400 3 112 993 en 6 - 45
12.07.2013
6.4.7 Unscrewing/screwing in the spacers
There are two spacers for each outrigger beam:
– In the outrigger box,
– In the outrigger beam on the opposite side.

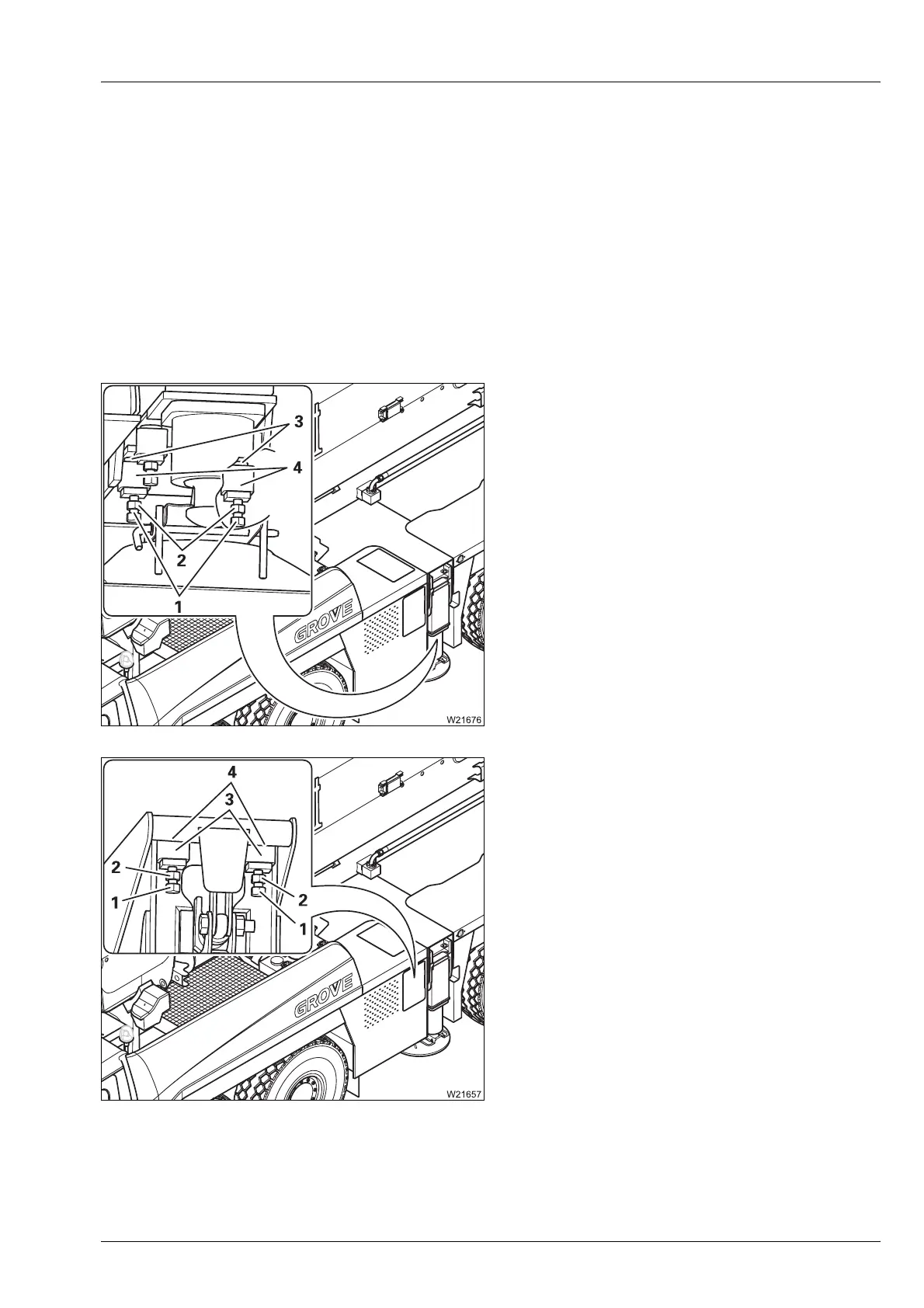

The illustrations show as an example the spacers for the outrigger beams
on the rear right hand side.
Unscrewing Before you pull out the outrigger beams, you must unscrew the spacers.
At the outrigger box
• Undo the lug nuts (2).
• Unscrew the bolts (1) until the spacers (3)
are screwed into the outrigger box (4) com-
pletely.
At the outriggers
• Undo the lug nuts (2).
• Unscrew the bolts (1) until the spacers (3)
are screwed into the outrigger beam (4)
completely.
