Rigging work
12.6 Outriggers
12 - 32 3 112 993 en Operating manual GMK 6400
12.07.2013
6. Turn off the engine:
– After operating it from the control units;
à p. 4 - 25.
– After operating it from the crane cab or using the hand-held control;
à p. 10 - 17.
7. If necessary, disconnect the hand-held control and stow it away;
à p. 12 - 22.

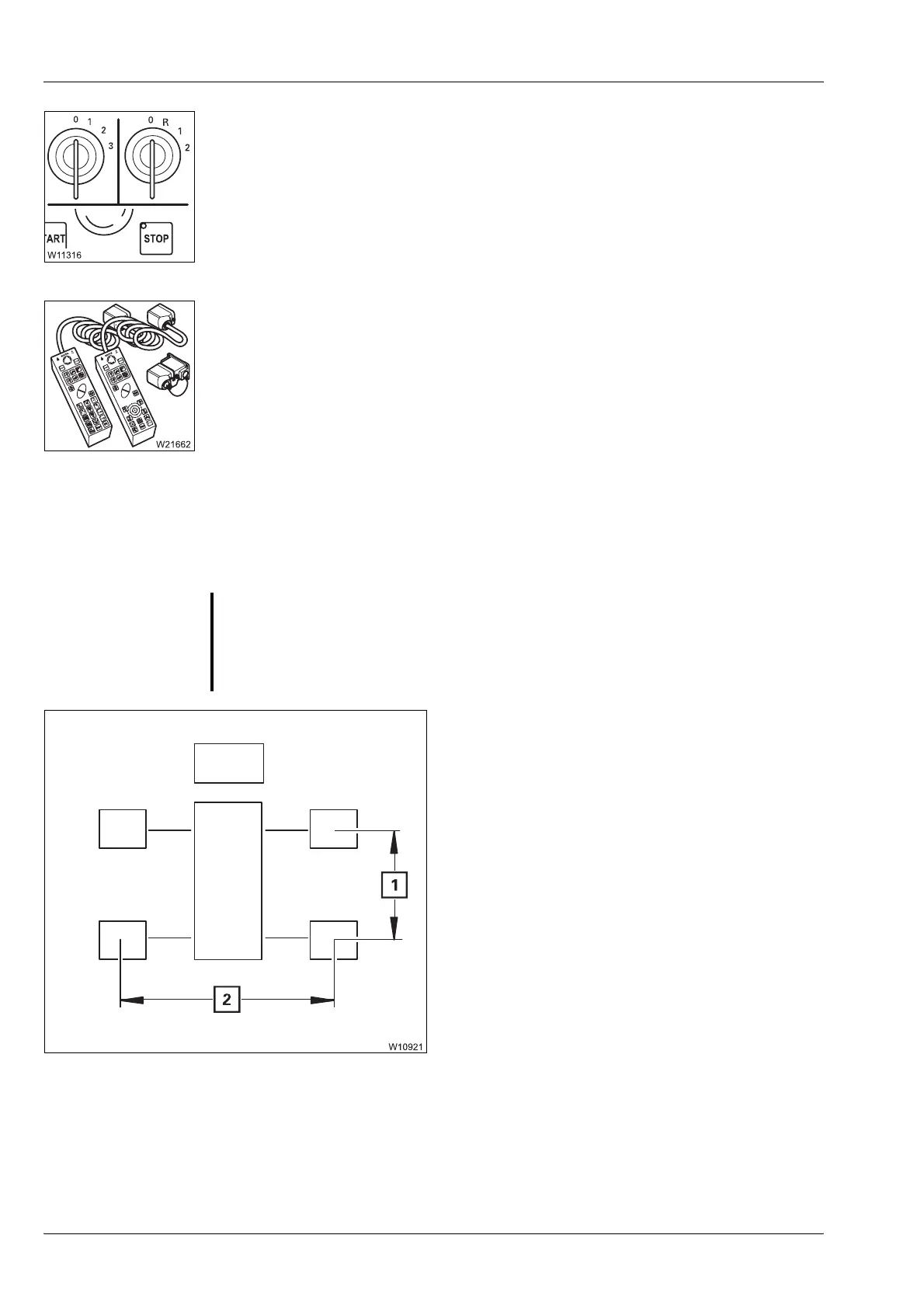

12.6.3 Permissible outrigger spans
The Lifting capacity table specifies the permissi-
ble outrigger spans in metre x metre
(feet x feet):
The first value represents the outrigger length
(1), e.g. 8.70 m (28.5 ft).
The second value specifies the required out-
rigger span (2), e.g. 8.50 m (27.9 ft).
G
Risk of overturning when slewing the superstructure
With some outrigger spans, slewing is only permissible with certain coun-
terweight combinations and boom positions;
à Slewing with rigged counter-
weight
, p. 12 - 89.
A 8.70 x 8.50 m (28.5 x 27.9 ft)
B 8.70 x 7.40 m (28.5 x 24.3 ft)
C 8.70 x 6.30 m (28.5 x 20.4 ft)
D 8.70 x 5.00 m (28.5 x 16.4 ft)
M 8.70 x 2.71 m (28.5 x 8.9 ft)
7.98 x 8.50/1.00 m (26.1 x 27.9/3.3 ft) (rear
outriggers)
