Manitowoc GROVE GMK 6400 User Manual

Rigging work
12.7 Rigging/unrigging the counterweight
Operating manual GMK 6400 3 112 993 en 12 - 61
12.07.2013

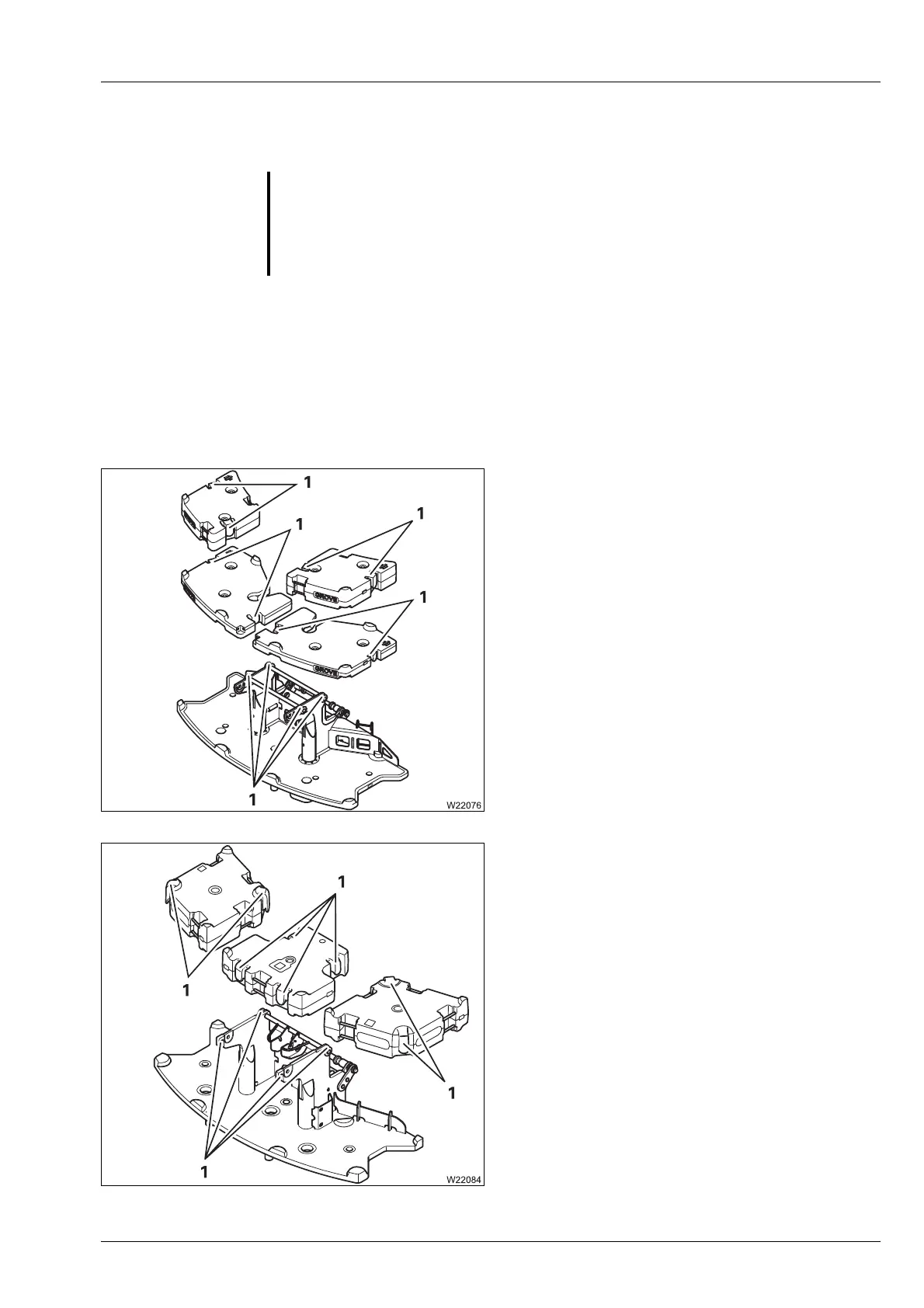

12.7.3 Slinging points on the counterweight sections
•
Only use lifting gear of sufficient lifting capacity
Weights:
–
à Counterweightsections version A, p. 1 - 12
–
à Counterweightsections version B, p. 1 - 12
In versions A and B the slinging points (1) are designed differently.
Version A
• Attach the counterweight sections to the
slinging points (1).
Version B
• Attach the counterweight sections to the
slinging points (1).
G
Risk of accident if used improperly
Attach the various counterweight sections only to the intended slinging
points and use lifting gear of sufficient lifting capacity.
Only lift the sections one by one, since the slinging points are not designed
for lifting stacked sections.
