Operating elements for crane operation
9.2 Short description of the operating elements
9 - 76 3 112 993 en Operating manual GMK 6400
12.07.2013

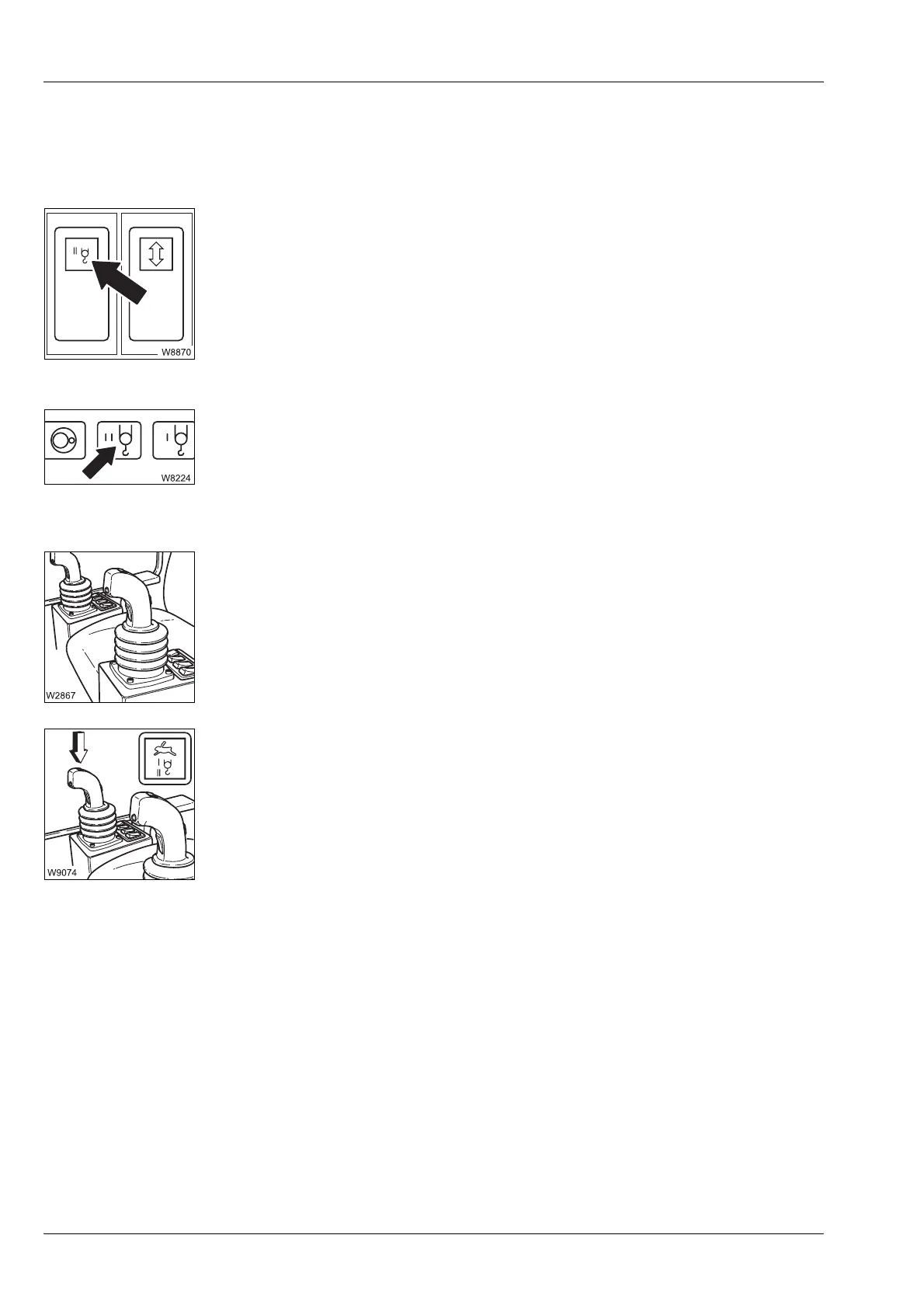

9.2.12 Auxiliary hoist
à Auxiliary hoist, p. 11 - 59.
Auxiliary hoist on/off
There is a lamp in the button.
Power units display
Left control lever
Button and lamp for hoist high-speed mode
Short description with main hoist;
à p. 9 - 76
Warning lamp for lifting limit switch shutdown
#
Short description with main hoist
– Press 1 x: – Lamp bright – auxiliary hoist on
– Lamp dim – auxiliary hoist off
à p. 11 - 59
–Green: Auxiliary hoist on
–Red: Auxiliary hoist off
– Back: Lift
–Forward: Lower
à p. 11 - 60
