Manitowoc GROVE GMK 6400 User Manual

Operating elements for crane operation
9.1 Overview of the operating elements
9 - 14 3 112 993 en Operating manual GMK 6400
12.07.2013

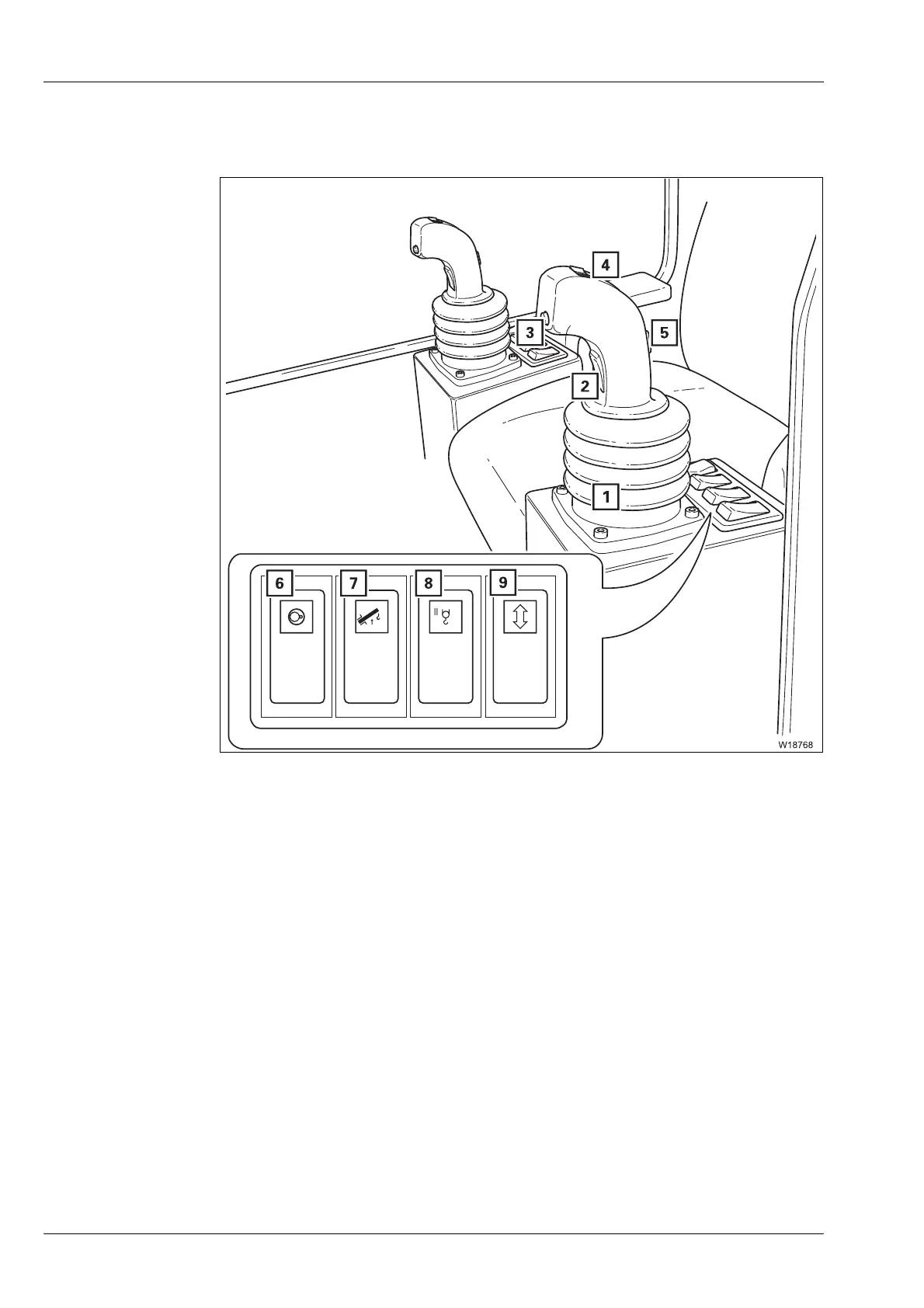

. 9.1.5 Control panels
Left
1 Left control lever (configuration according to version)
à p. 9 - 16
2 Dead man's switch
à p. 9 - 63
3 Horn button
or
Slewing gear freewheel
1)
à p. 9 - 78
4 Depending on which function is activated, button for:
– Derricking gear/telescoping mechanism high-
speed mode on/off
à p. 9 - 80
5 Auxiliary hoist slewing indicator
à p. 11 - 60
6 Slewing gear on/off
à p. 9 - 78
7 Raise switch
à p. 9 - 81
8 Auxiliary hoist on/off
1)
à p. 9 - 77
9 Inclining the crane cab
1)
à p. 9 - 88
1)
Additional equipment
