Crane operation
11.2 Operation of the rated capacity limiter
Operating manual GMK 6400 3 112 993 en 11 - 23
12.07.2013
11.2.2 Entering the rigging mode
For a complete rigging mode input, you must enter, confirm and accept the
rigging mode and the reeving.

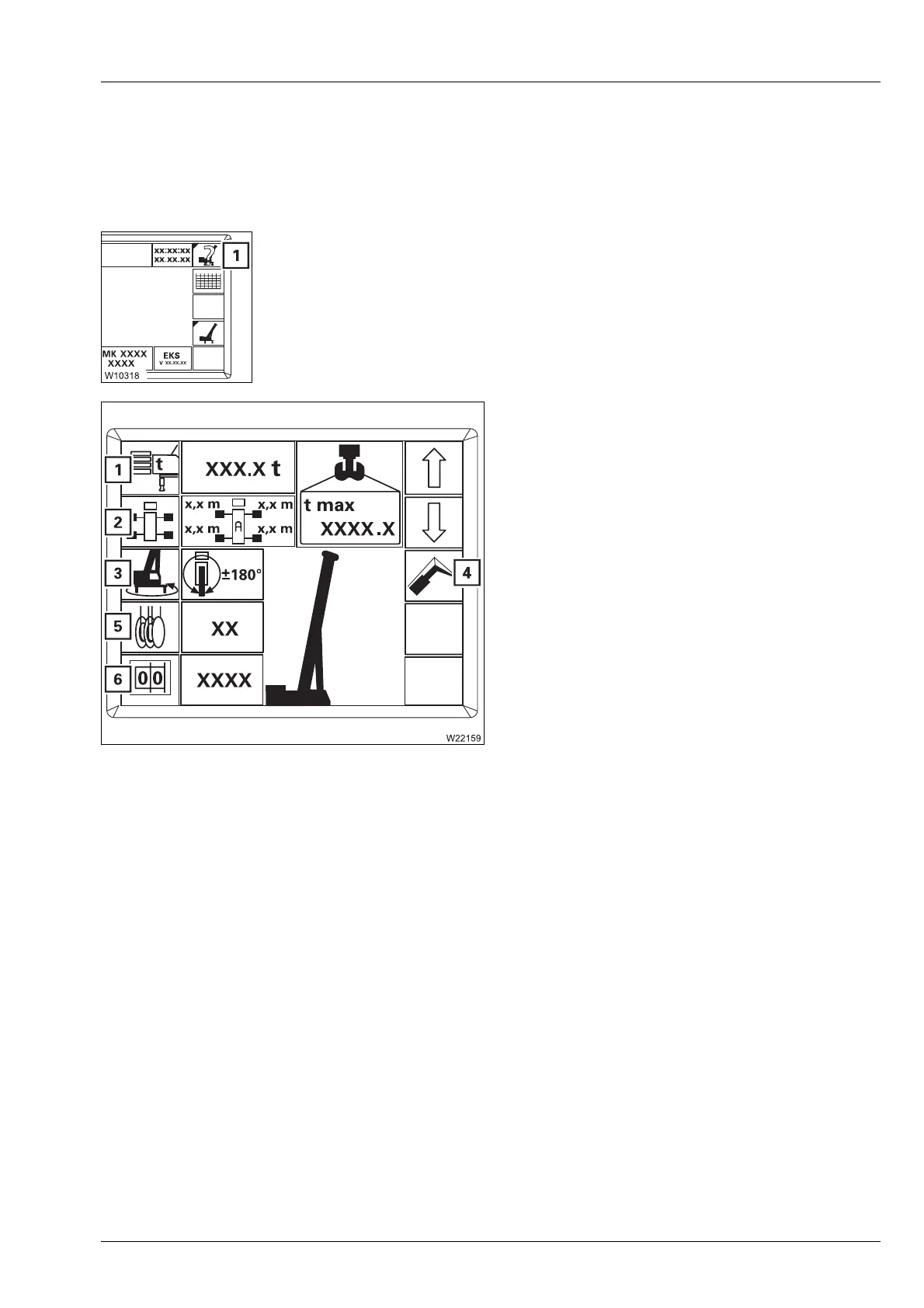

Opening the submenu
• If necessary, open the main menu ö and press (1) button once.
The
ö button is only active if all crane movements have been stopped.
The
Enter rigging mode submenu will open.
There are two ways of entering the current rig-
ging mode.
– Either enter the individual components (1)
to (5) one after the other.
– Or enter the RCL code (6) and the reeving
(5).
Then you must confirm and accept the newly
entered rigging mode.
The following section describes the input procedure based on the individual
components. If you want to enter the rigging mode based on the RCL code;
à Entering the RCL code, p. 11 - 28.
