Driving modes and rigging for on-road driving
6.4 Installing/removing outrigger beams
Operating manual GMK 6400 3 112 993 en 6 - 41
12.07.2013
6.4.4 Removing/attaching outrigger pads
You only need remove the outrigger pads if the outrigger beams are to be
transported lying on their side.
For transportation in a suitable holding frame, the outrigger beams can be
set down on the outrigger pad.
Removing
outrigger pads
Handling is easier if you remove the outrigger pad before removing the out-
rigger beams.

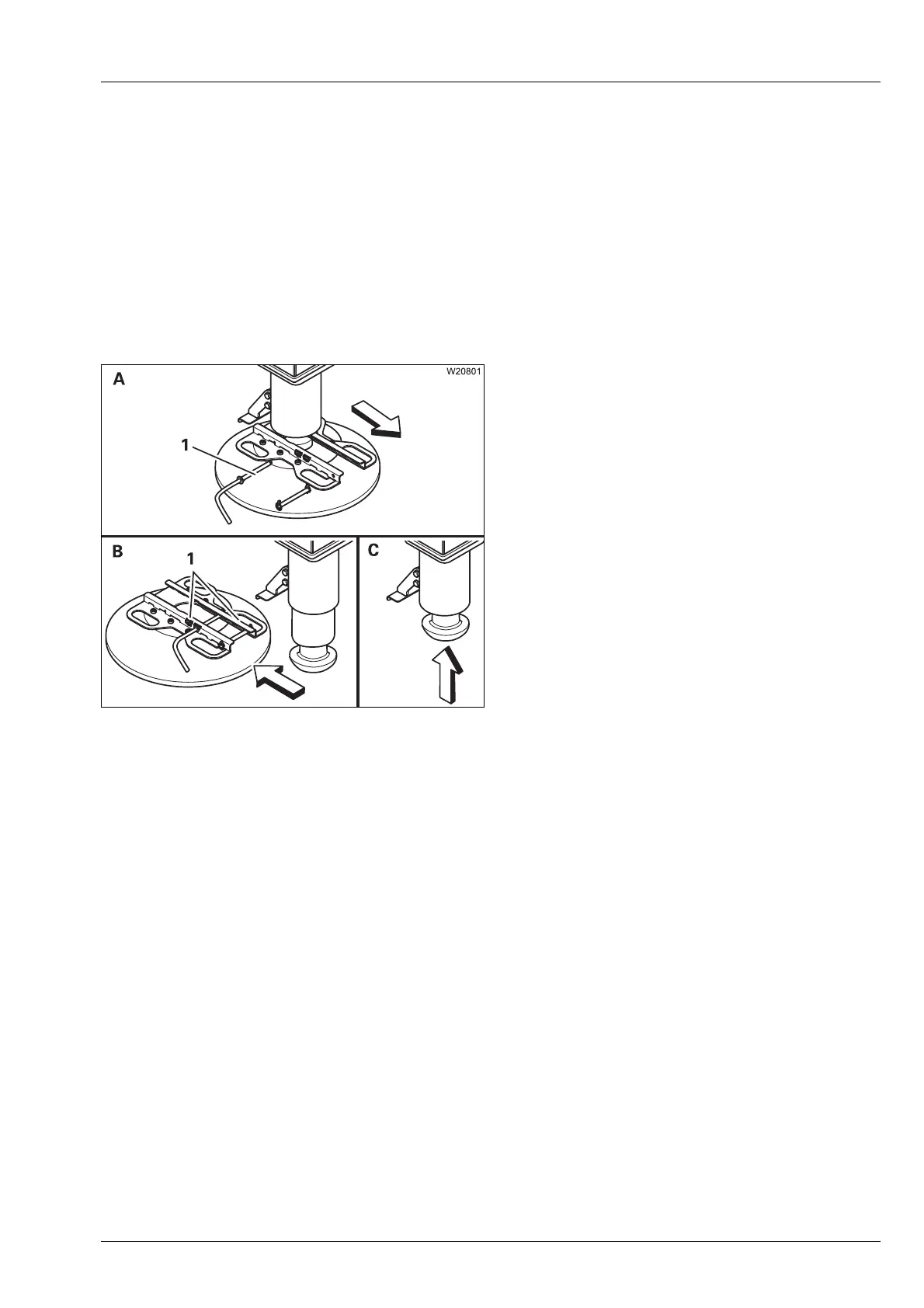

• (A) – Move the outrigger pad into the oper-
ating position.
• Remove the pins (1).
• Extend the outrigger cylinder until the out-
rigger pad just touches the ground but is not
yet under strain.
• (B) – Pull the outrigger pad off the outrigger
cylinder.
• Insert the pins (1) and secure them.
• (C) – Fully retract the outrigger cylinder.
• Remove the other outrigger pads in the
same way.
