Operating elements for crane operation
9.2 Short description of the operating elements
9 - 62 3 112 993 en Operating manual GMK 6400
12.07.2013
9.2.5 ECOS crane control
The truck crane GMK 6400 is equipped with the ECOS electronic crane con-
trol (Electronic Crane Operating System). The ECOS includes a control unit
in the crane cab, an operating unit in the driver's cab and several control
units (ESX0, ESX1, ESX2 etc.) and I/O circuit boards (I/O 0, I/O 1 etc.) distrib-
uted on the superstructure and carrier.
Control unit This section contains the operating elements that are the same for all menus
opened.

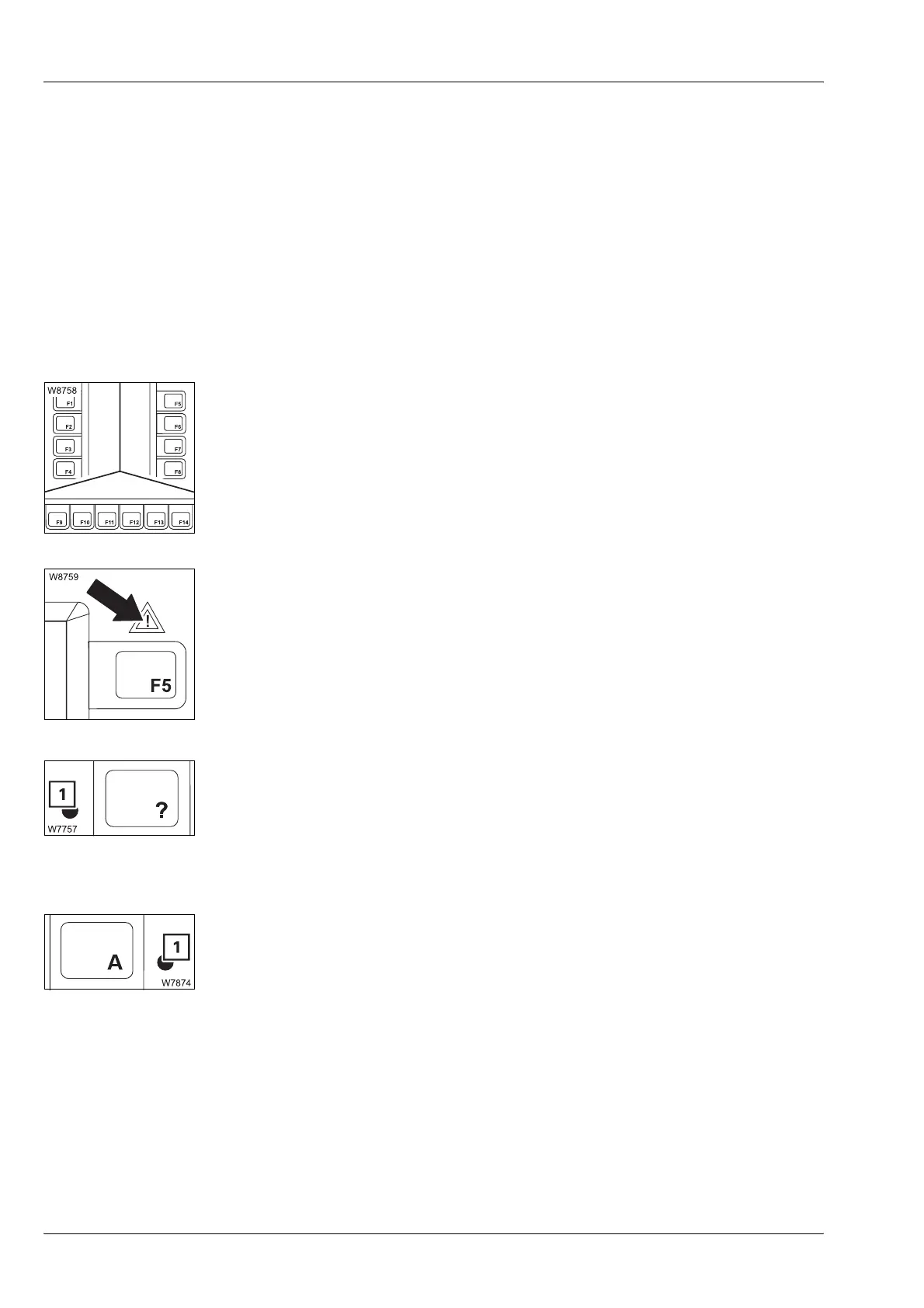

Buttons F1 to F14
The function of buttons F1 to F14 is shown on the symbol next to or above
the button. After the button is pressed, the function displayed is executed if
it has been released.
Error/warning message
Opening Errors submenu
The lamp (1) lights up or flashes.
Open Warning submenu
The lamp (1) lights up or flashes.
– Flashing: New warning message or error has occurred
–On: Error acknowledged – but still present
– Off: No warning message or error present
à p. 11 - 114
– Press the button 1 x: This opens the
Errors submenu
à p. 11 - 114
– Press the button 1 x: This opens the
Warning submenu for the super-
structure
à p. 11 - 111
