Driving
5.1 Before driving
5 - 18 3 112 993 en Operating manual GMK 6400
12.07.2013

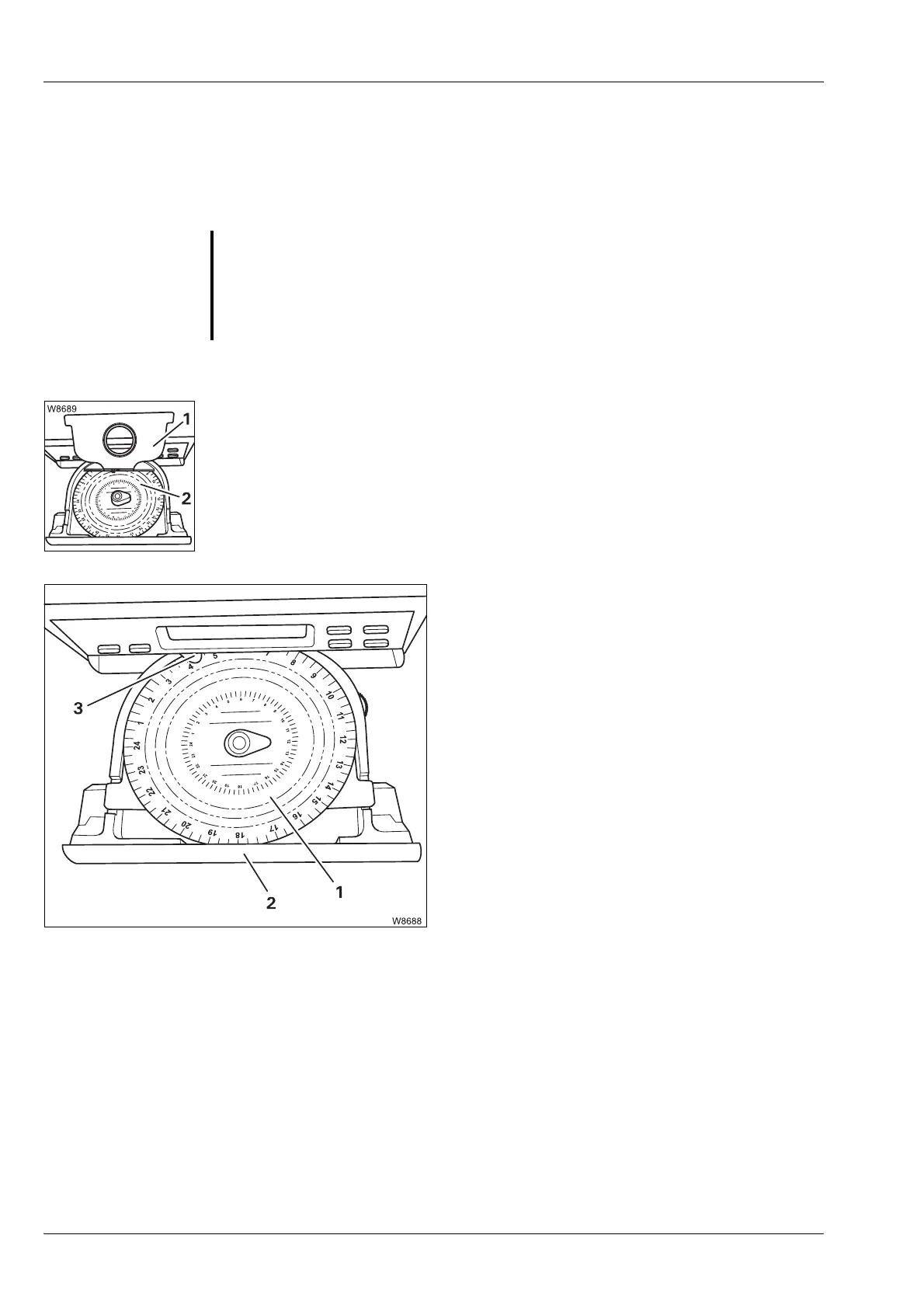

Inserting diagram sheets
H
Only insert diagram sheets that are properly marked.
The diagram sheets are always inserted with the front facing upwards.
With 2-driver operation, a diagram sheet (2) for driver 2 must be placed
below the isolating plate (1):
– After checking the time, leave the diagram sheet (2) where it is,
– After checking the time, insert the diagram sheet (2).
• Fold the isolating plate downwards.
• Put the diagram sheet (1) for driver 1 on the
isolating plate.
• Take care that the diagram sheet is under
the bracket (3).
• Push the drawer (2) back in until it engages.
For single-driver operation, the diagram sheet
mounting under the isolating plate is empty
and only the diagram sheet (1) for driver 1 is
inserted.
S
Risk of malfunctions in the electronics
If a diagram sheet has been damaged by being marked several times, this
might cause malfunctions in the electronics. Always insert the plastic sheet
diagram supplied should you not need to use the tachograph.
