Driving modes and rigging for on-road driving
6.3 Removing/installing main boom
6 - 28 3 112 993 en Operating manual GMK 6400
12.07.2013
Establishing The number of hoses/cables depends on how the truck crane is equipped.
– The main boom must be raised.

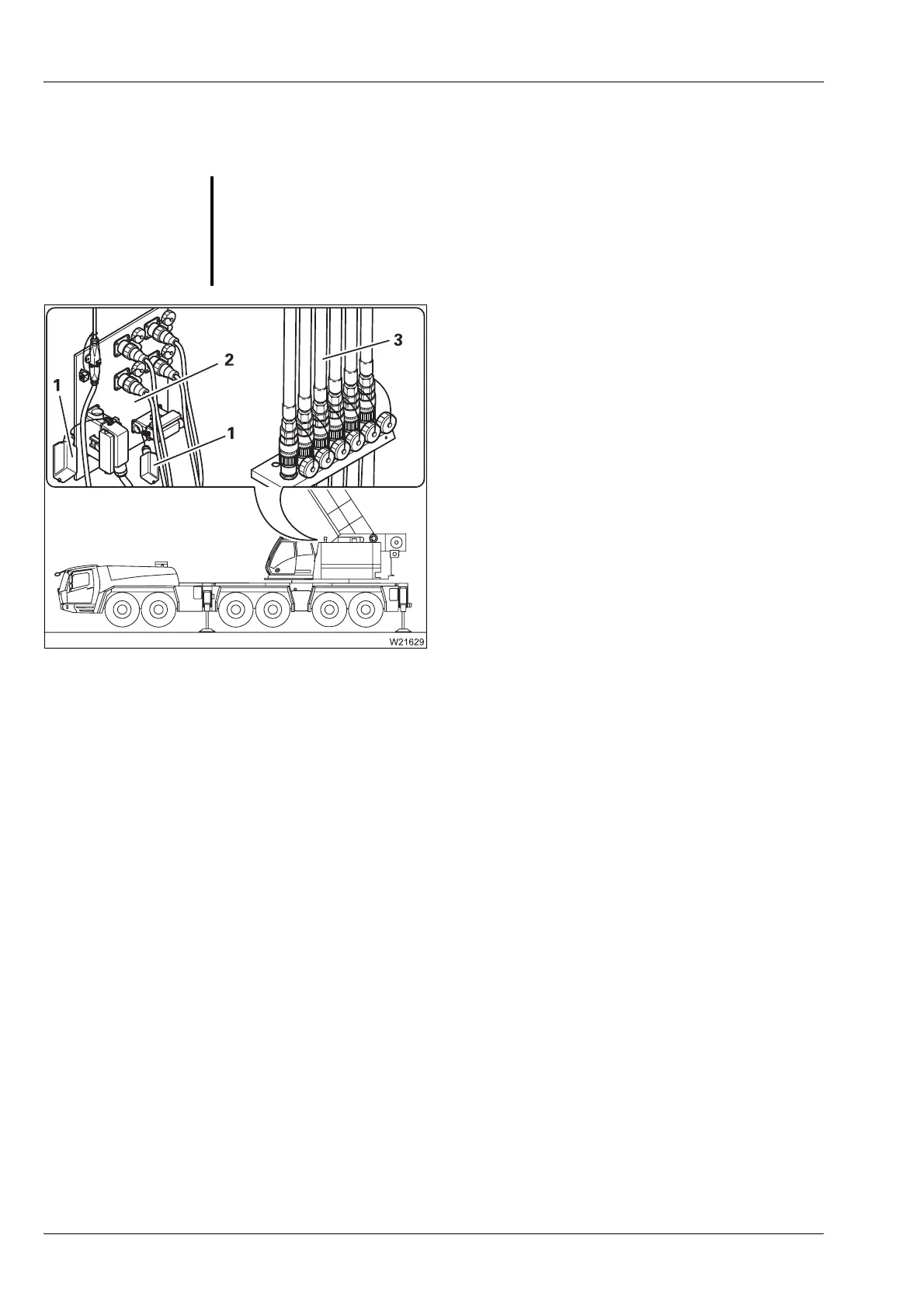

• Remove the bridging plugs (1).
• Connect the plugs (2) to the sockets.
The assignment is given by the number of
poles and the shape of the plug.
• Connect all hoses (3).
The assignment is given by the size and
colour designations.
Lay the hoses/cables so that they will not be
damaged.
S
Risk of malfunction in the superstructure electronics!
Always turn off the ignition in the crane cab before you establish or
separate the electrical connection. This prevents malfunctions in the
electronics and corresponding error messages in the subsequent crane
operation.
