Correction sheet GMK6400 3 302 804 en 1
27.08.2018
Contrary to the information specified in the operating manual,
there are corrected hoist rope reevings on the main boom for the
GMK6400 truck crane.
Only reeve the hoist rope as described/illustrated in this correction sheet.
It is important that you still observe all notes and safety instructions
regarding rigging work on the main boom in the operating manual
supplied.
With 7 head
sheaves
7 sheave hook block
s
Correction sheet

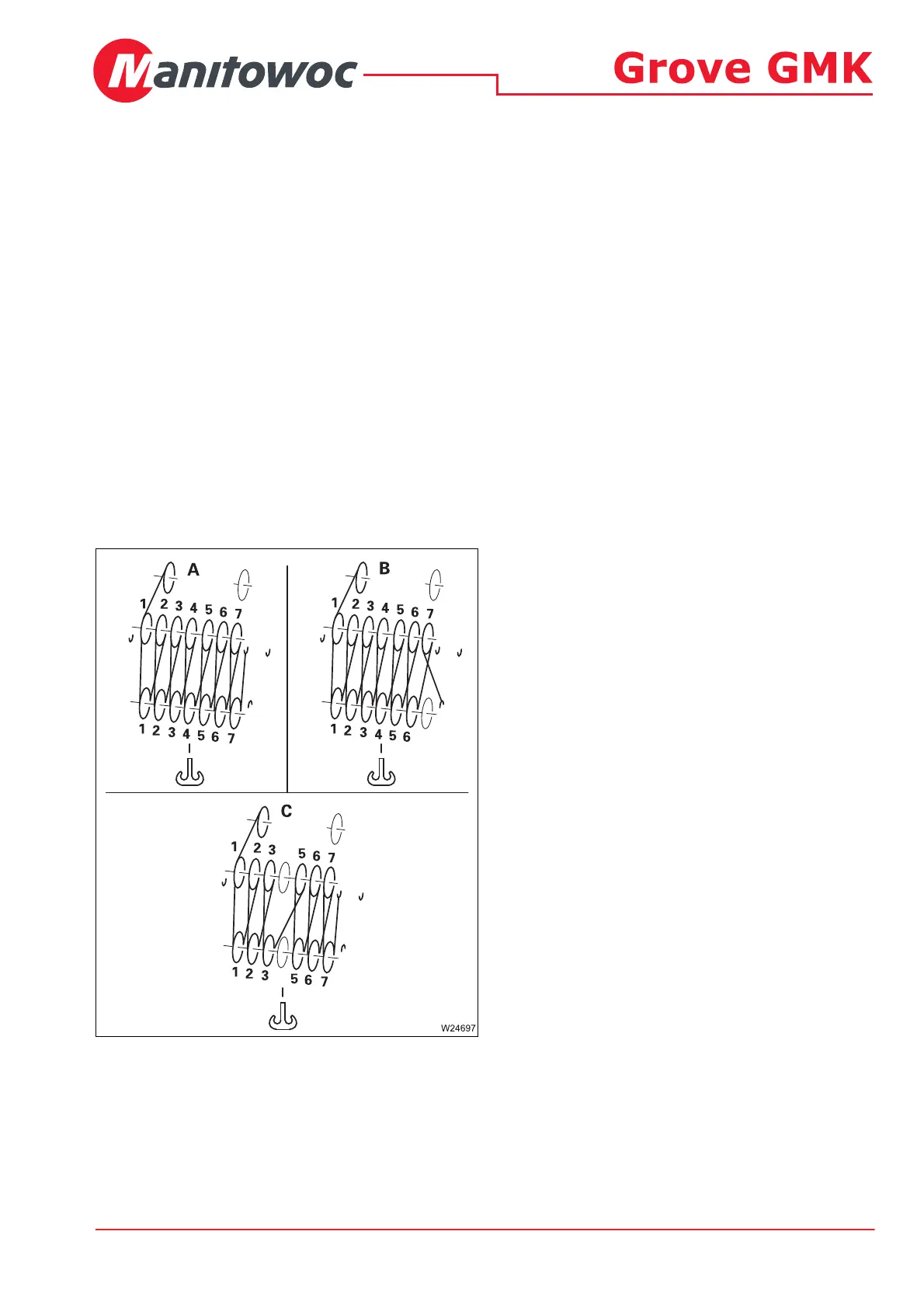

Possible reeving methods on the main boom
Reeving
A 14x
B 13x
C 12x
