Driving modes and rigging for on-road driving
6.5 Installing/removing the supporting box
6 - 58 3 112 993 en Operating manual GMK 6400
12.07.2013

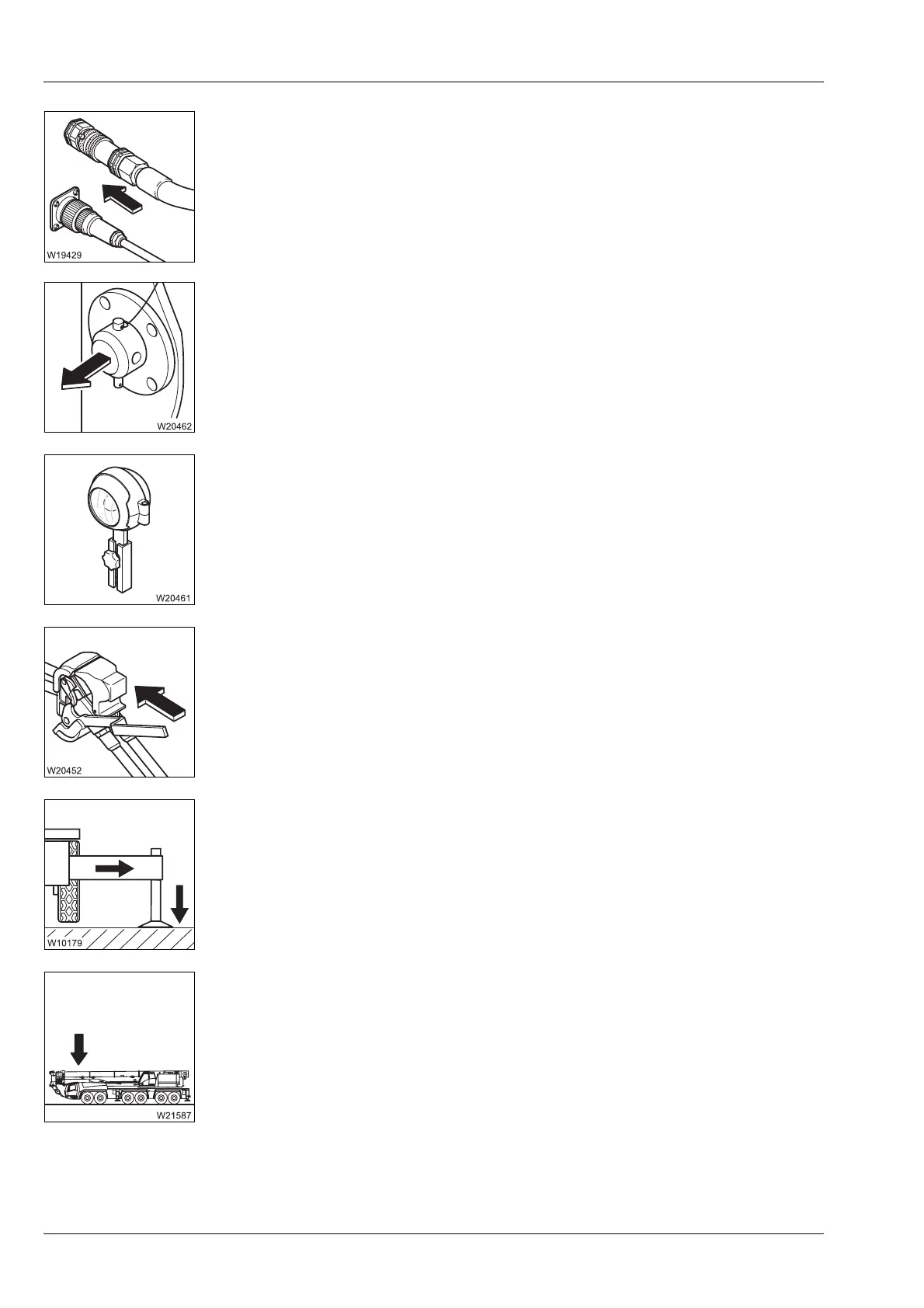

5. – Establishing an hydraulic connection; à p. 6 - 64,
– Establishing an electrical connection;
à p. 6 - 63.
6. Pin the outrigger box to the carrier;
à p. 6 - 71.
7. Install the reverse camera on the carrier;
à p. 6 - 68.
8. Where necessary, disconnect the pneumatic connections between the
carrier and outrigger box;
à p. 6 - 62.
9. If the truck crane is at the site:
– Retract auxiliary support;
à p. 6 - 60,
– Extend all outrigger beams to the necessary outrigger span, secure
them and stabilize the truck crane;
à CHECKLIST: Extending the out-
riggers
, p. 12 - 29.
10. If the truck crane has to be driven to the site:
With the RCL set accordingly, slew the superstructure to the front and
set down the main boom;
à Crane movements during installation and
removal
, p. 6 - 69.
– Retract the front outrigger cylinders and outrigger beams and secure;
à CHECKLIST: Retracting the outriggers, p. 12 - 31,
– Place the outrigger pads in the driving position;
à p. 12 - 43.
– Retract auxiliary support;
à p. 6 - 60.
