Driving modes and rigging for on-road driving
6.5 Installing/removing the supporting box
Operating manual GMK 6400 3 112 993 en 6 - 67
12.07.2013

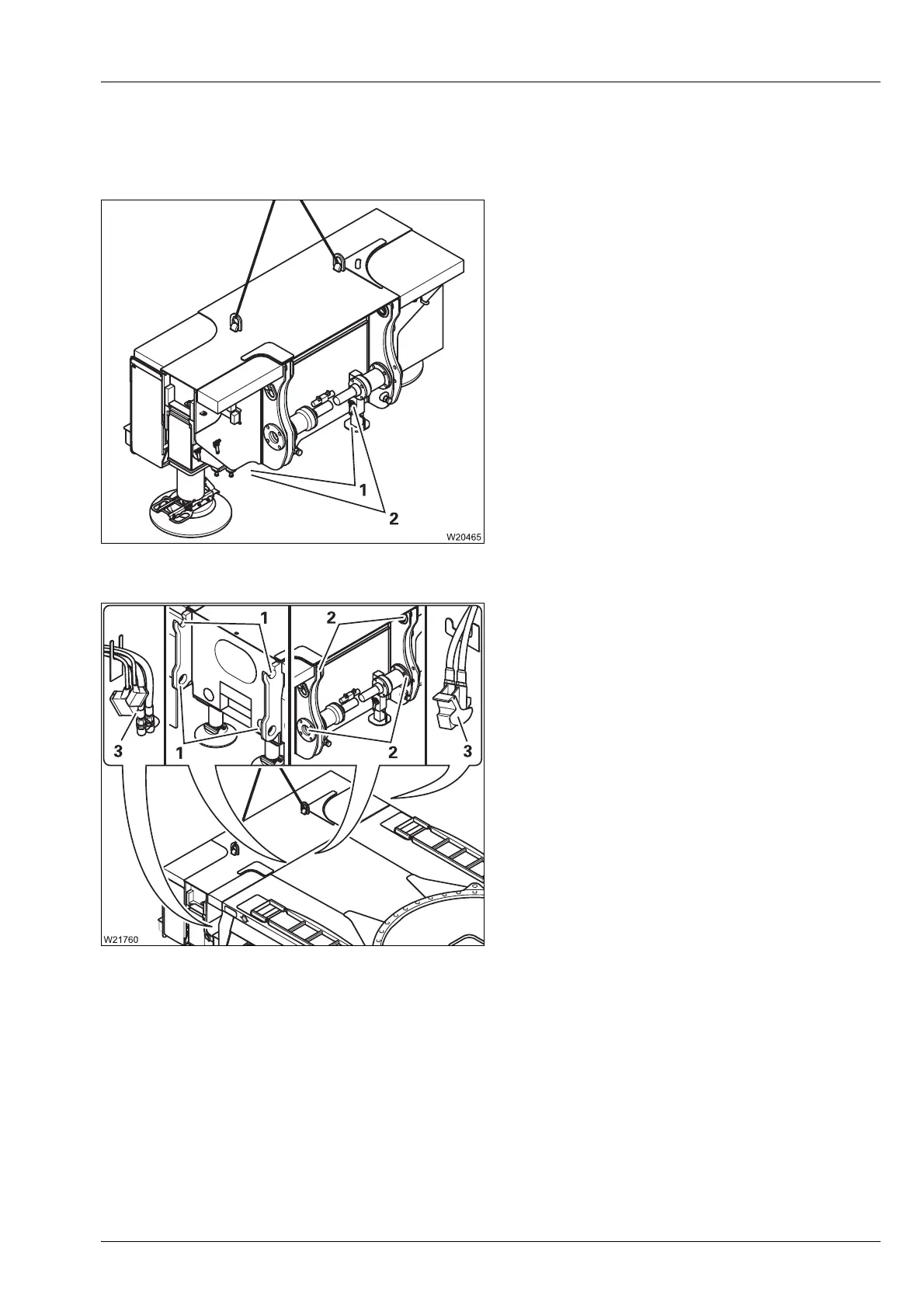

Attaching The supporting box is within one of the radii permitted by the RCL.
The supports must be retracted before hanging the box.
• Sling the outrigger box.
• Pull the locking pins (2).
• Retract the supports (1).
• Secure the supports; by inserting the lock-
ing pins into the lower hole.
• Where necessary to do so, bring all the out-
rigger pads into driving position;
à p. 12 - 43.
Do not override the RCL!
• Hoist the outrigger box onto the carrier in
such a way that the pins (2) on the outrigger
box are vertically above the mountings (1)
on the rear of the vehicle.
• Hang the outrigger box in the mountings (1).
Take care that the cables and hoses (3) are
not trapped and damaged.
