3 Functions of NB-Designer
3-78
NB-series Programmable Terminals NB-Designer Operation Manual(V106)

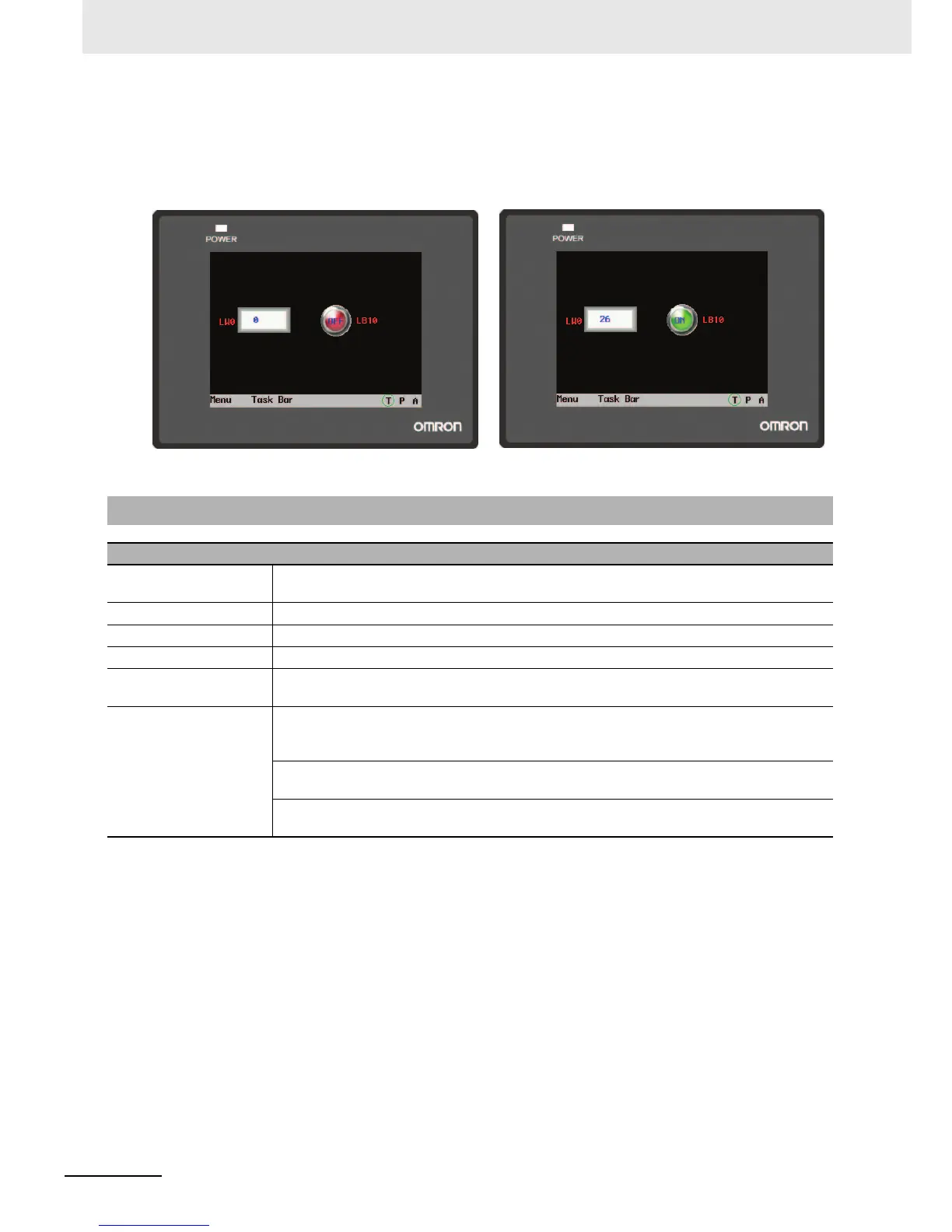

Perform the offline test. And when no data is written into the number input component LW0, LB10 is
“Off”, as shown in the following left graphics.
When the data is written into the number input component, LB10 is “On”, as shown in the following
right graphics.
3-5-12 Display Setting of Component
Display Setting for Component
Lock Position Checking this option means the component is locked. Once the component is locked, it can’t be
moved by the mouse or the moving keys in the keyboard.
X/Y Refers to the coordinate value of the vertex in the upper-left of the component.
Width/Height Refers to the width and height of the component (The unit is pixel point).
Display Checking this option means the current component is always in displayed state.
Not Display
[Touching is invalid]
Checking this option means the current component is always in “hide state” and the touching is
invalid when the component is hidden.
Conditional Display Security Level Control: Checking this option means the current component can be displayed
only when the security level of the operator is higher than the minimum security level already
set.
User Permission Control: Checking this option means the current component can be displayed
only when the operator has the set permission.
Indirect Reference: Checking this option means the current component can be displayed only
when the state of the specified bit memory or word memory meets the set conditions.
