3 Functions of NB-Designer
3-92
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
In addition, place 2 Number Input components with the addresses of LW15 and LW16 respectively as
well as 1 Number Display component with the address of LW5.
When LW15 is 10 and LW16 is 100, LW5 will increase by 10 each time when “Set” is pressed until the
upper limit (i.e. 100) is reached and then stop increase.

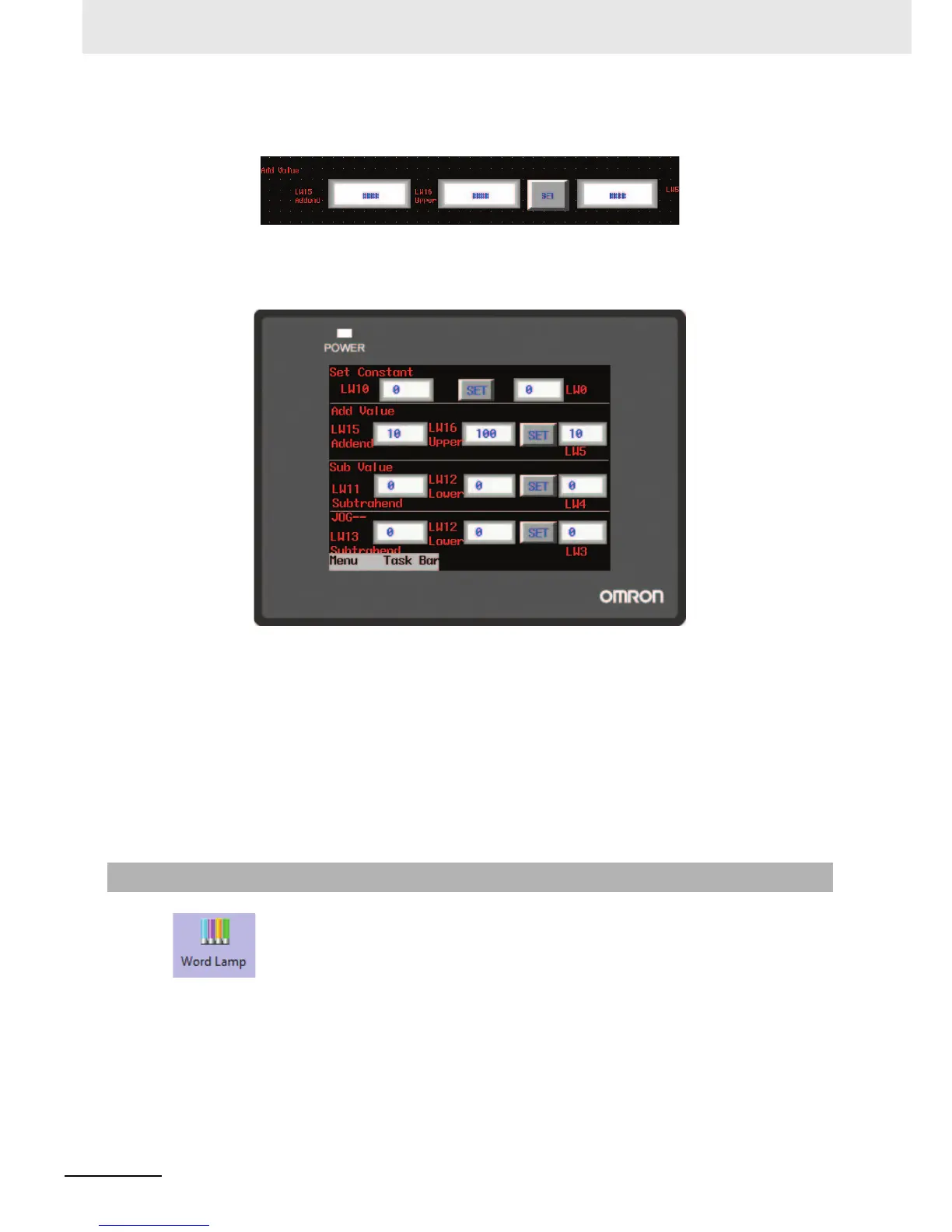

Perform the offline test and the effect is shown as below.
3
Switch to the [Label] tab and add the text describing the state.
4
Switch to the [Graphics] tab and select Vector Graphics or bitmap to display the bit address
state and represent the touching area.
5
Switch to the [Control Setting] tab and make the Security Setting and set the Triggering action.
6
Press the [OK] button to complete the setup of the Command Button component.
Word Lamp is the component which will switch the display information according to the
value of the specified word address.
3-6-5 Word Lamp
