6 Descriptions of New Functions Added into NB-TW01B
6-24
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
 Saving the related information into the external memory:

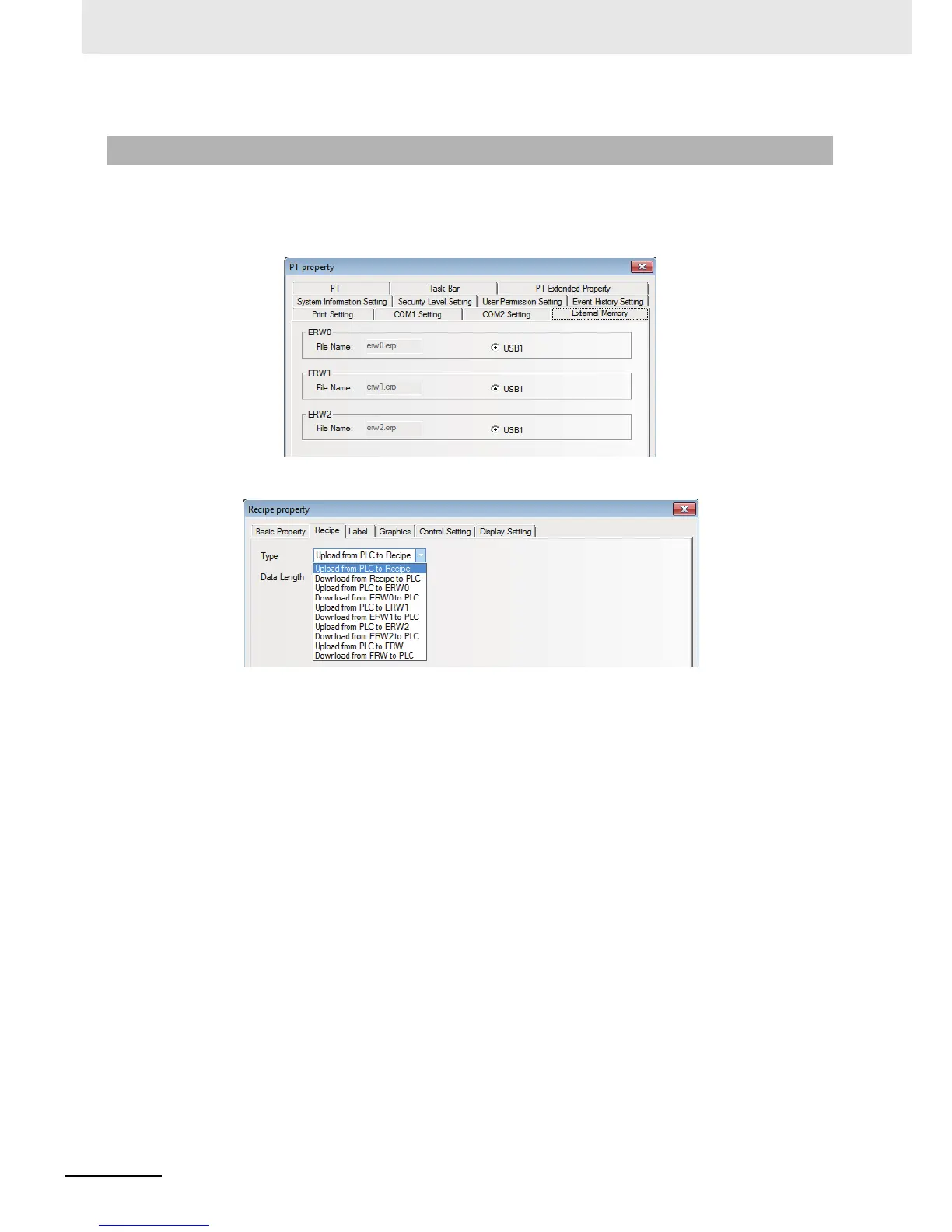

Select the external memory in the [External Memory] tab in the [PT Property] dialog box, as shown
below.
Later, make settings in the [Recipe] tab in the [Recipe Property] dialog box.
The following functions can be realized:
Upload from PLC to ERW0: Transfers the data in memory specified by PLC or controller to the ERW0
memory of the external memory.
Download from ERW0 to PLC:Transfers the data in ERW0 memory of the external memory to the
memory specified by PLC or controller.
Upload from PLC to ERW1: Transfers the data in memory specified by PLC or controller to the ERW1
memory of the external memory.
Download from ERW1 to PLC:Transfers the data in ERW1 memory of the external memory to the
memory specified by PLC or controller.
Upload from PLC to ERW2: Transfers the data in memory specified by PLC or controller to the ERW2
memory of the external memory.
Download from ERW2 to PLC:Transfers the data in ERW2 memory of the external memory to the
memory specified by PLC or controller.
6-3-5 Recipe Data
