Word Switch is the component which changes the status value of the value specified for
each status value and send the value to the specified address. The status value is changed by
increasing or decreasing for each touch operation or by selecting from the list. When changing the
status, the mapping value specified for each status will be sent to the specified memory. The statuses
can be set up to 256.
Process of adding one Word Switch component
1

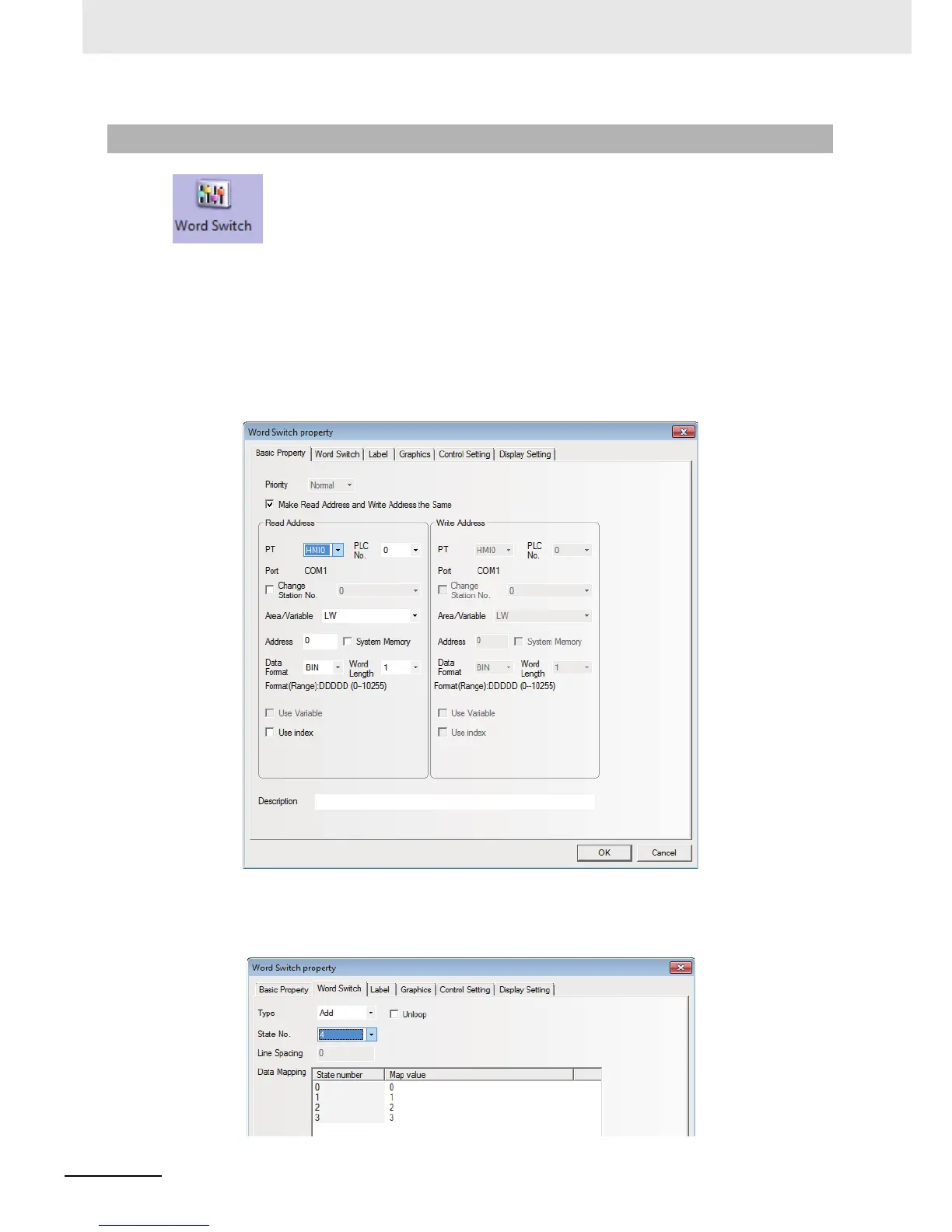

Drag the Word Switch icon after it is pressed will make the [Basic Properties] of Word Switch
component pop up.
2
Switch to the [Word Switch] tab and set the State No. and the value corresponding to each
state for the component. You can set the state from 1 to 256 in the dropdown box
corresponding to “State No.”.
