Omron NB-series User Manual

3 Functions of NB-Designer
3-190
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
3 Switch to the [Control Setting] tab and make the Security Setting and set the Triggering action.
4 Press the [OK] button to complete the setup of the Table component.

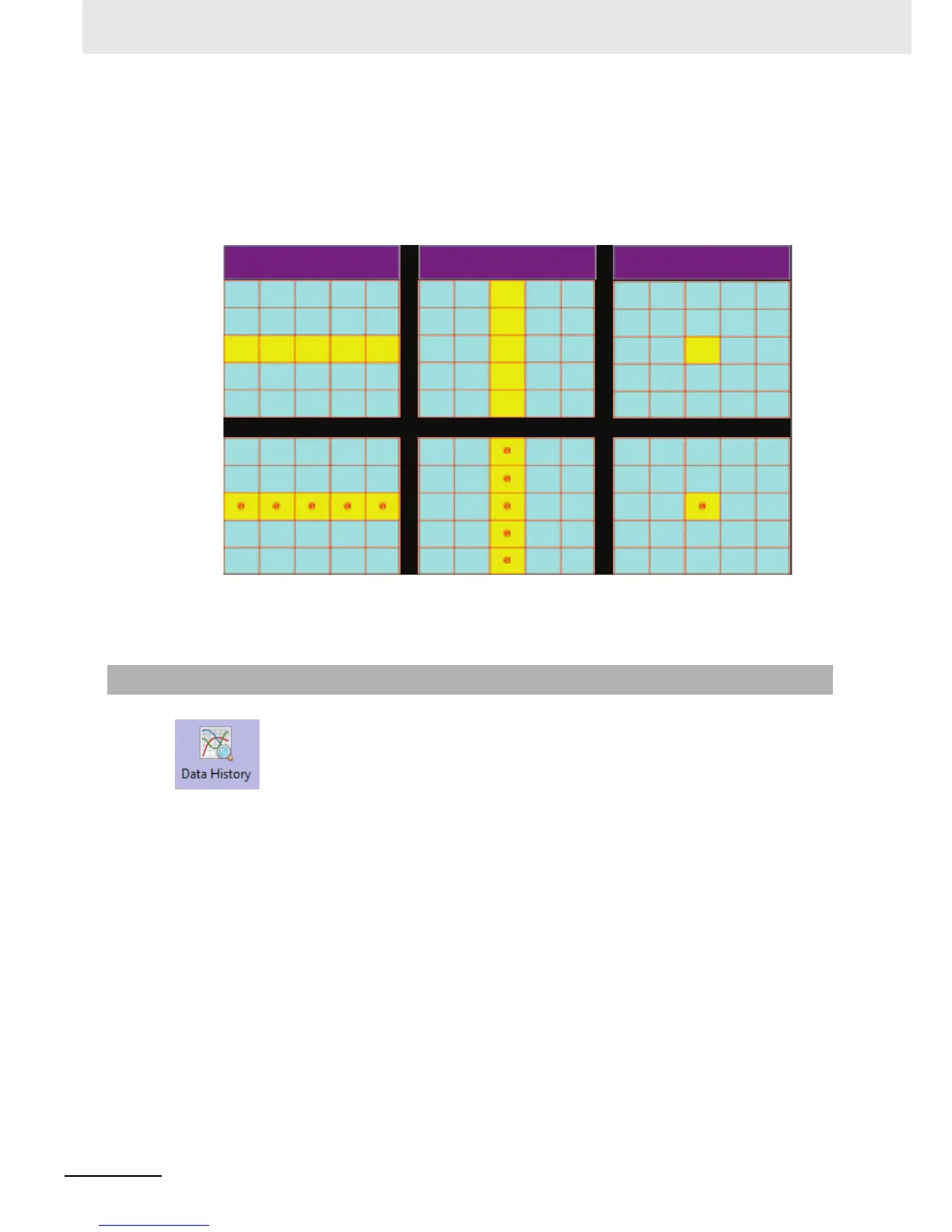

The test effect of the Table component is as shown below.
If required, the Table component can also be used in combination with the Number Input component
and the Macro, thus controlling the display condition through the Macro.
The Data History component can be used to read a series of date in consecutive memories
from the specified word memory(s) inside PT, PLC or word memory(s) of the controller periodically and
display them in the table form.
Note 1 The sampled data must be consecutive. When the “Save to Recipe Data Field” is checked in the [Save
Data History] tab, only the saving of a little amount of data is possible for the limited capacity of recipe data
field.
2 The [Read Address] for the Data History component is the memory address for data sampling by the 1st
channel.
3 The Word Length of memory for Data History component is determined by the channel number, i.e. if
channel number is m (0<m<17), the World Length will be m.
4 Using the Data History component, the user must be check one or both of “Save to Recipe Data Field” and
“Save to External Device” options in the [Save Data History] tab in the [Data History Component Property]
dialog box.
3-6-29 Data History
Select by row 2 Select by col 2 Select by cell 2
Grid component application
