6 Descriptions of New Functions Added into NB-TW01B
6-14
NB-series Programmable Terminals NB-Designer Operation Manual(V106)

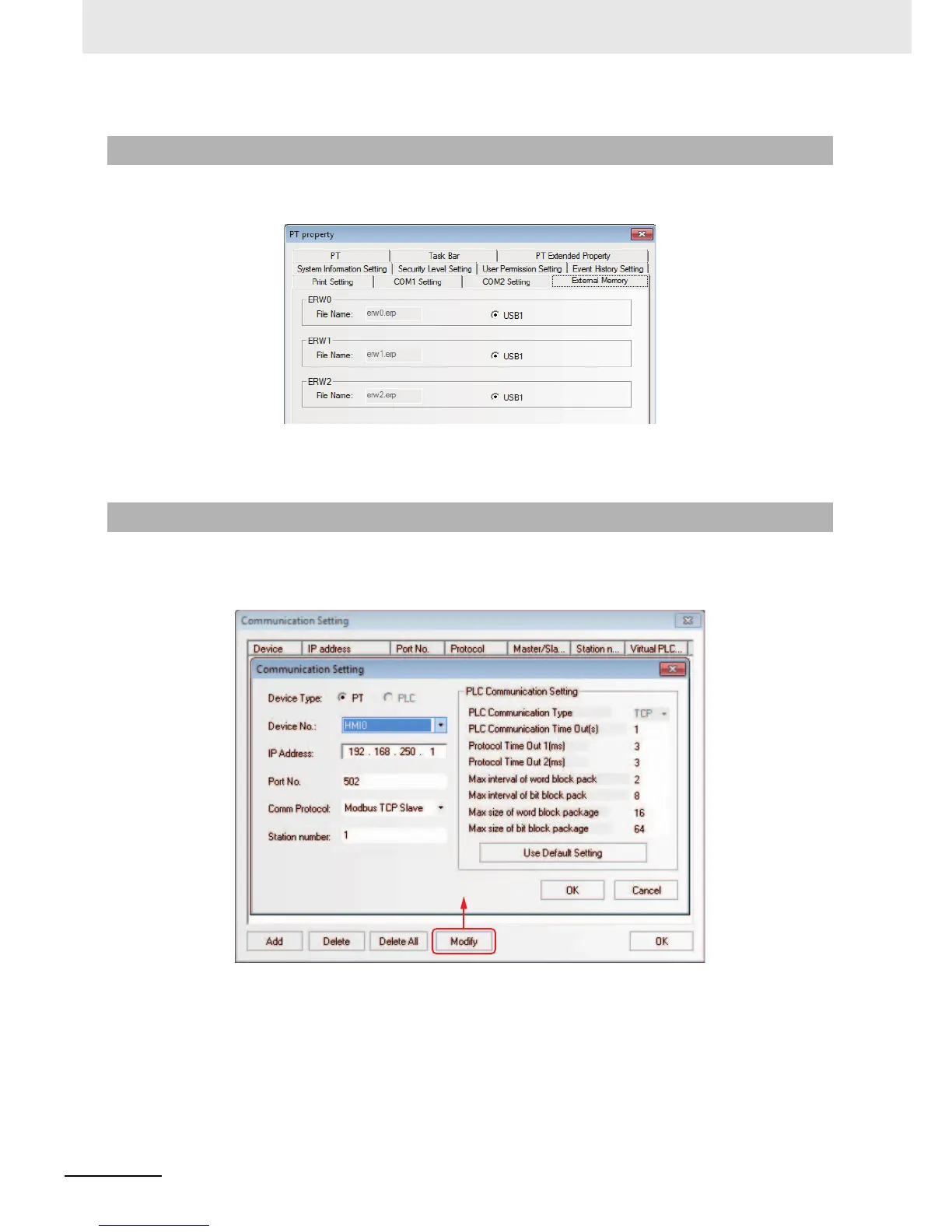

The [External Memory] tab allows checking the ERW0, ERW1, and ERW2 areas which were defined as
specific storage areas for the external memory.
The data in ERW will be stored into the specified external memory with “erp” as the file format and the
storage path of “/exmem/erwx.erp”. (x = 0, 1, 2)
The “Communication Setting” option is used to make the “Communication Setting” for the Ethernet
communication, i.e. to configure the Ethernet communication protocol and set some related
communication parameters.
6-2-4 External Memory
6-2-5 Communication Setting
