3-189
3 Functions of NB-Designer
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
3-6 Parts
3

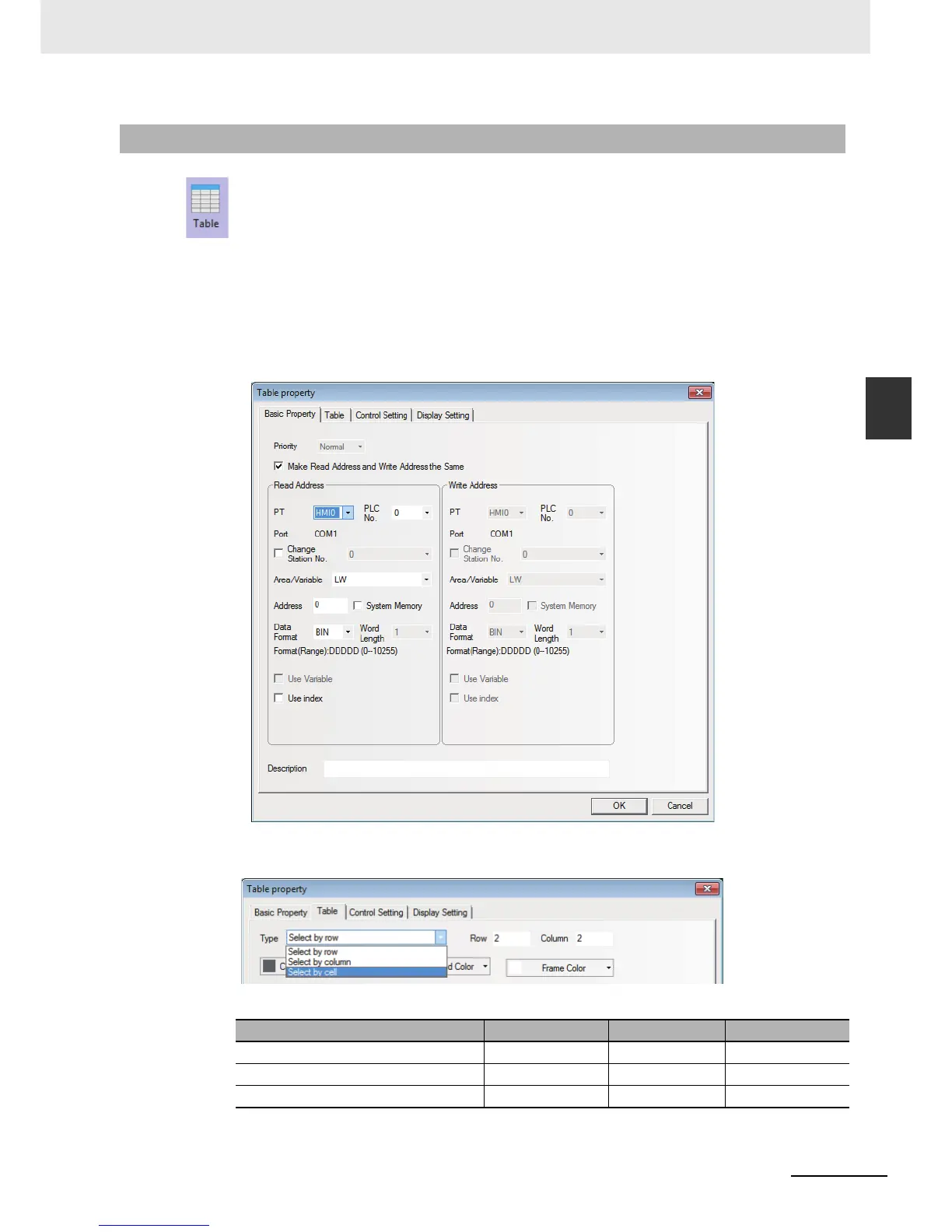

3-6-28 Table
The Table component can make the selection type of “Select by row”, “Select by Column” and
“Select by cell”. The user can set the “Row”, “Column”, “Color when Selected”, “Background Color”,
“Border Color”, and write the selected Row No. and Column No. into the specified memory.
Process of adding one Table component
1
Press the Table component icon, drag it to the screen, then the [Basic Properties] dialog box of
the Table component will pop up.
2
Switch to the [Table] tab and make the settings of “Row”, “Column” and “Type”.
The related Properties are as follows:
3-6-28 Table
Type Select by row Select by col Select by cell
memory corresponding to Row First address - First address
memory corresponding to Column - First address First address + 1
Number of Occupied memories 1 1 2
