Omron NB-series User Manual

3 Functions of NB-Designer
3-164
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
Scroll Bar is used to change the value in the specified word memory by pressing the slider.
 Process of adding one Scroll Bar component

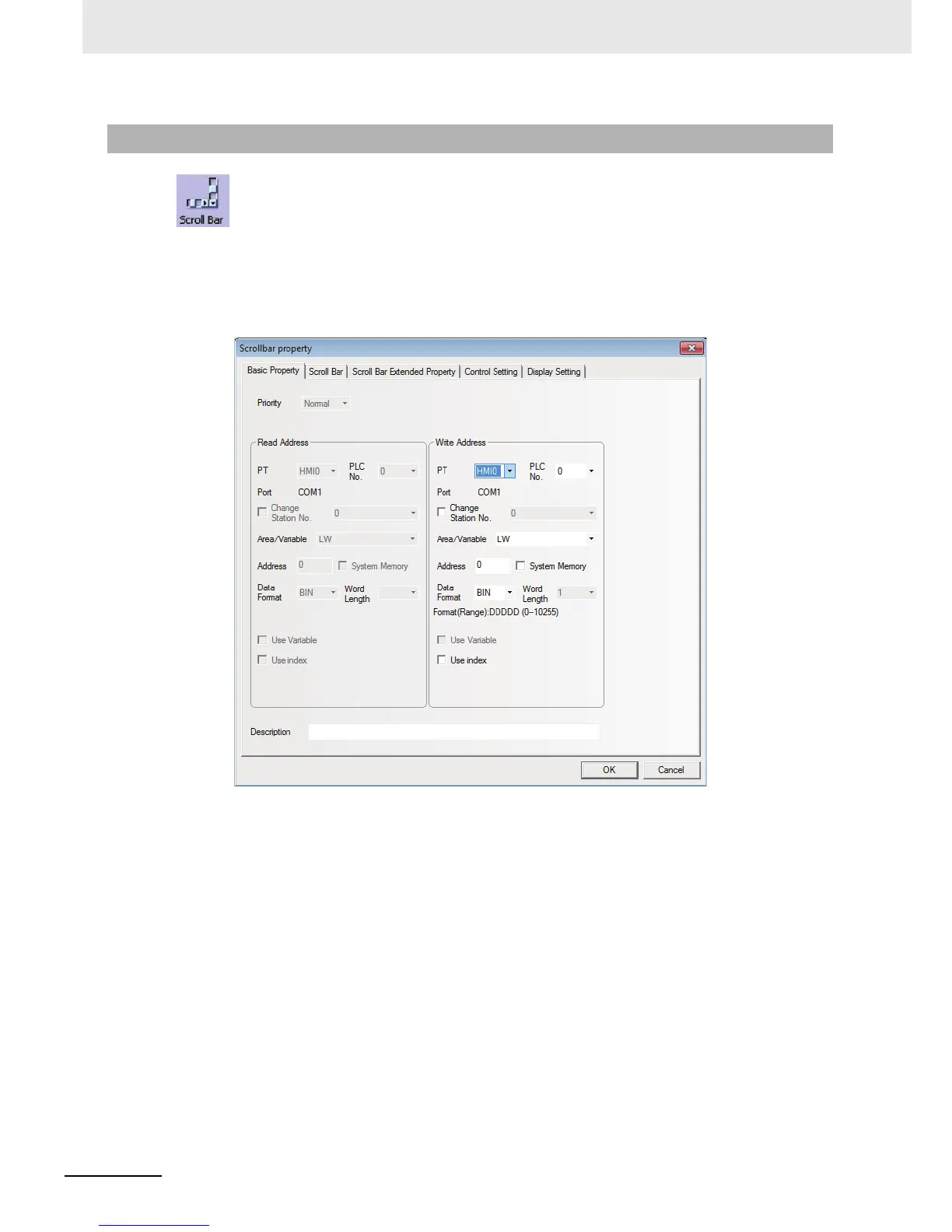

1 Press the Scroll Bar component icon, drag it to the screen, then the [Basic Properties] dialog
box of the Scroll Bar component will pop up.
Write Address: Refers to the address of word memory of the current browsing index value for
the Scroll Bar component.
Address: Refers to the first address of the word address corresponding to Scroll Bar.
Word Length: Displays the data length of the write address, which is 1 by default.
3-6-22 Scroll Bar
