3-219
3 Functions of NB-Designer
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
3-7 Function Parts
3
3-7-8 Data Transmission
5

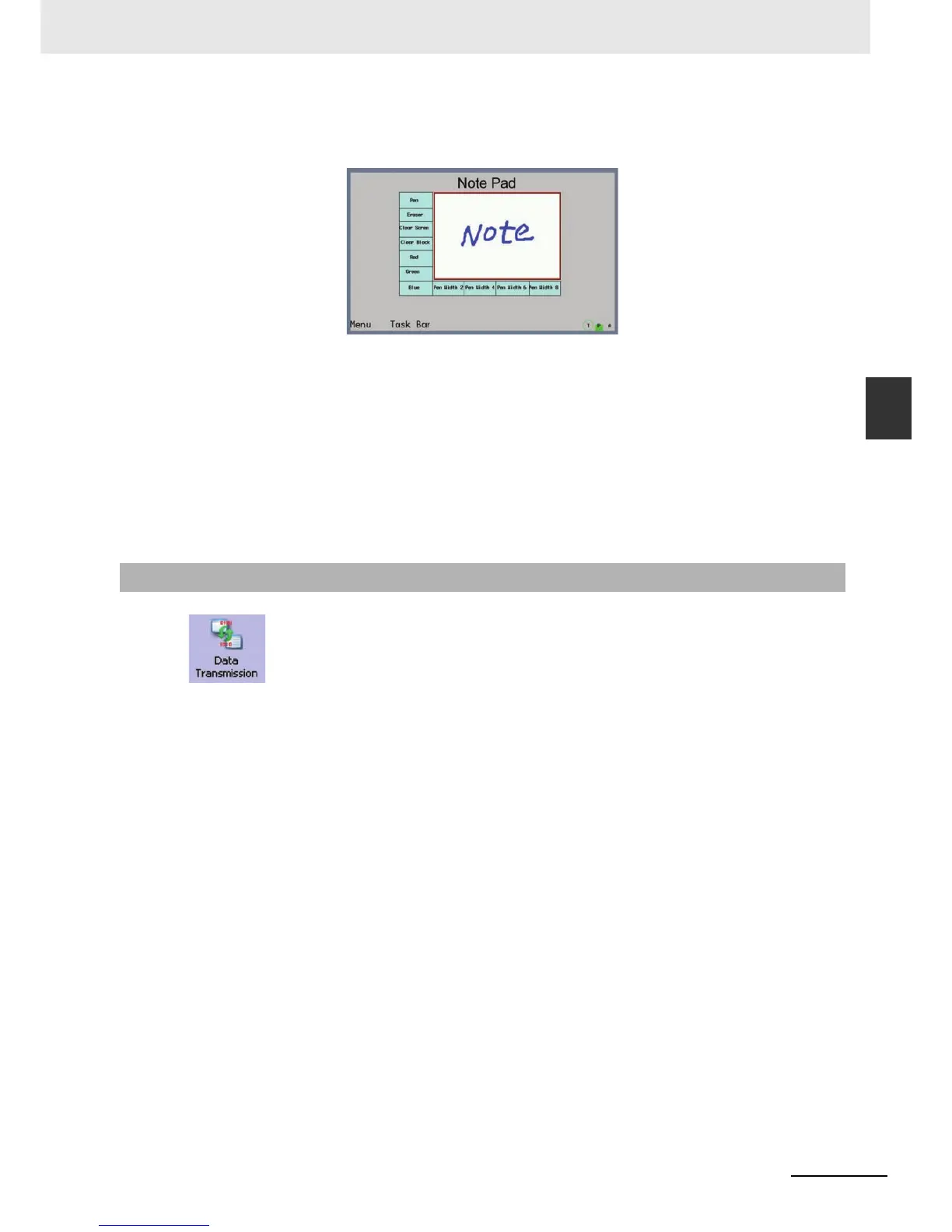

[Save] and [Compile] the project files and execute [Offline Test] and result in the display as
follows.
The system reserves the following areas for the system memory:
• LB9020 to LB9032: [Pen], [Eraser], [Clear Block],
• LB9030 to LB9032: pen size,
• LW9006 : operation mode of Notepad,
• LW9007 : pen size
• LW9008 : color of pen selecting among 256 colors.
For the details, refer to 3-11 Address of System Memory (Page 3-319).
Note 1 Each PT can only use one Notepad component. If there are more than one Notepad components, an error
occurs at the compilation.
2 The data in the Notepad will not be saved, i.e. be lost, when the power of PT is OFF.
Data Transmission component can make the data in the specified memory address
transferred to the other memory address. Data Transmission can be triggered by the manual touching
method or the state change of the specified address.
3-7-8 Data Transmission
To Next Page
