Bitmap component is used to call and display the bg-form graphics registered in the system
graphics library or the graphics library in Project File Window. Bitmap component is not controlled by
the memory, and doesn’t have multiple states, thus the bitmap corresponding to the graphics state
specified by you at the designing time will always be displayed. For the creation and usage of bitmap,
refer to [3-5-6 Bitmap].
1

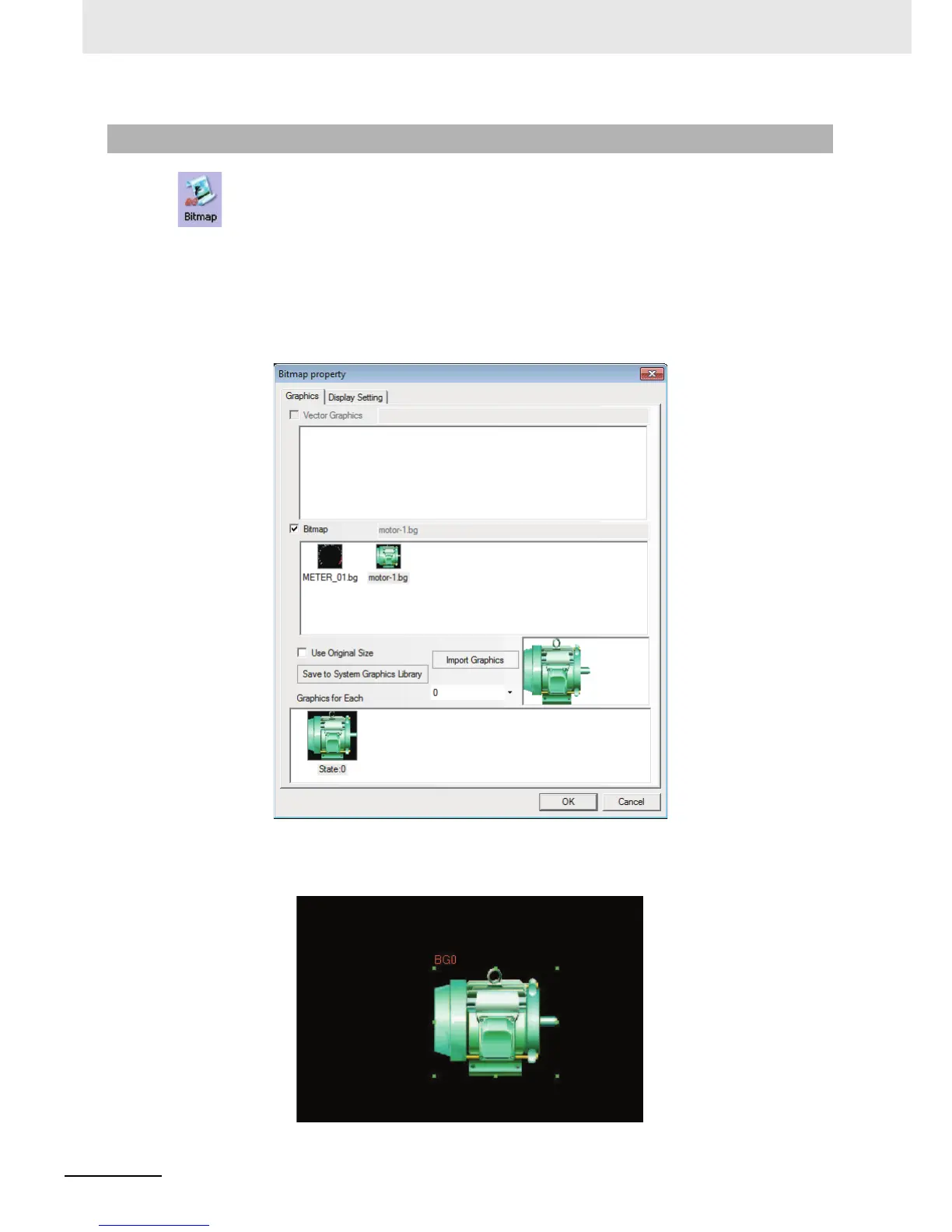

First press the Bitmap icon, drag it to the screen, then select the bitmap you want to use, as
shown below.
2
Press the [OK] button, and then adjust the position and the size of the Bitmap in the screen, as
shown below:
3-7-5 Bitmap
