When the corresponding control is triggered, PLC Control component can activate one
specific operation.
PLC Control component is a powerful component group, which can realize a large variety of functions
because it is more powerful than the general component. And its functions are as follows:
(1) Switch Screens: Changes the current screen.
(2) Write data (current base screen number) into PLC: Transfers the current Screen No. to the PLC.
(3) General-purpose PLC control: Realizes the data transmission between the PLC address and
LW/RW.
(4) Backlight Off: Turns off the backlight.
(5) Backlight Off (Write Back): Turn OFF the back light. (The control bit will be reset.)
(6) Execute Macro: Executes the corresponding Macro number when the condition is met.
(7) Backlight On: Turns on the backlight.
(8) Backlight On (Write Back): Turn ON the back light. (The control bit will be reset.)
(9) General PLC Control (Expansion)
(10) Change Screen (Ignore screen 0)
Process of creating one PLC Control
1

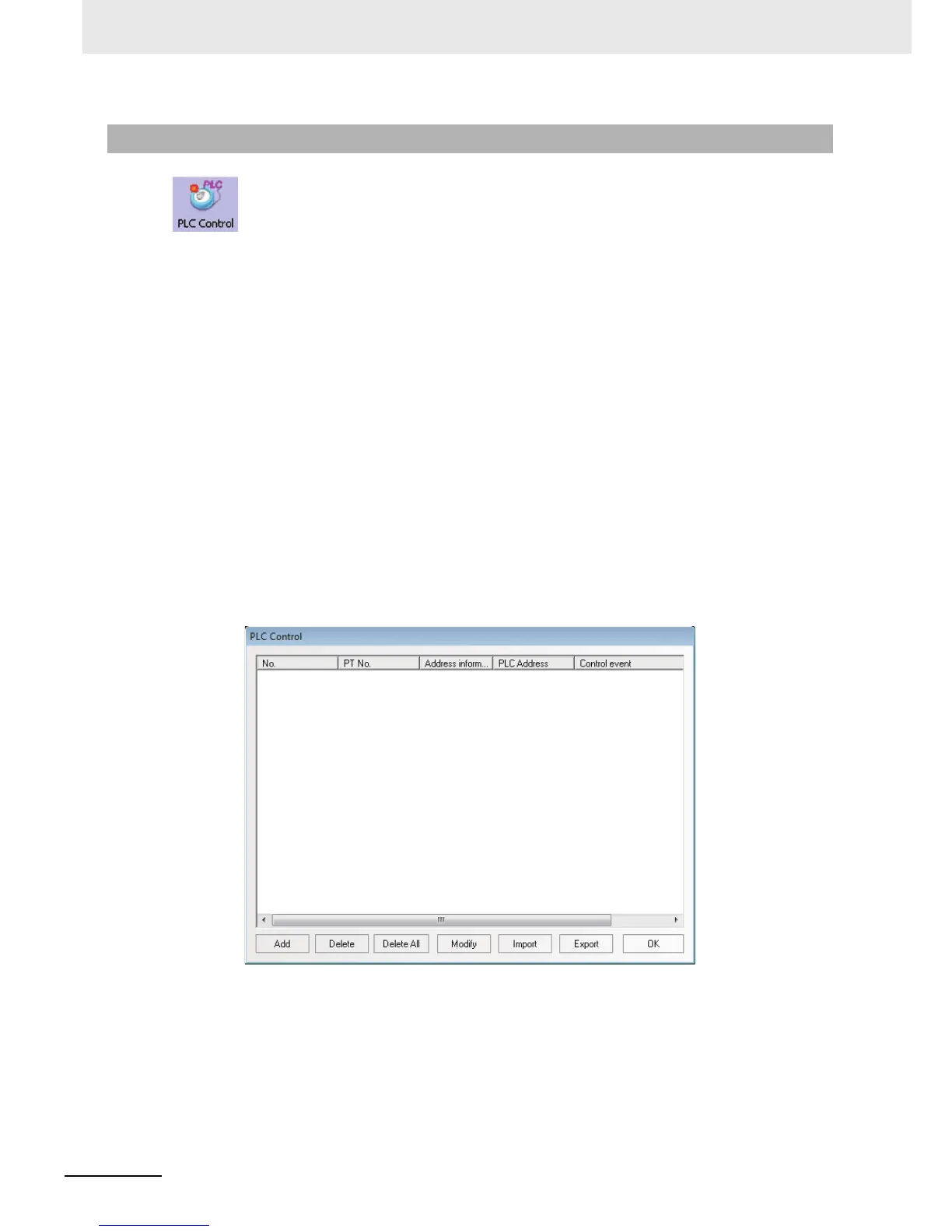

Press the PLC Control icon to make the list of PLC Control pop up.
2
Press “Add” button to create a new PLC Control or press “Modify” and “Delete” buttons to
modify the PLC Control and delete the selected setting respectively.
