7 PictBridge Printing
7-4
NB-series Programmable Terminals NB-Designer Operation Manual(V106)

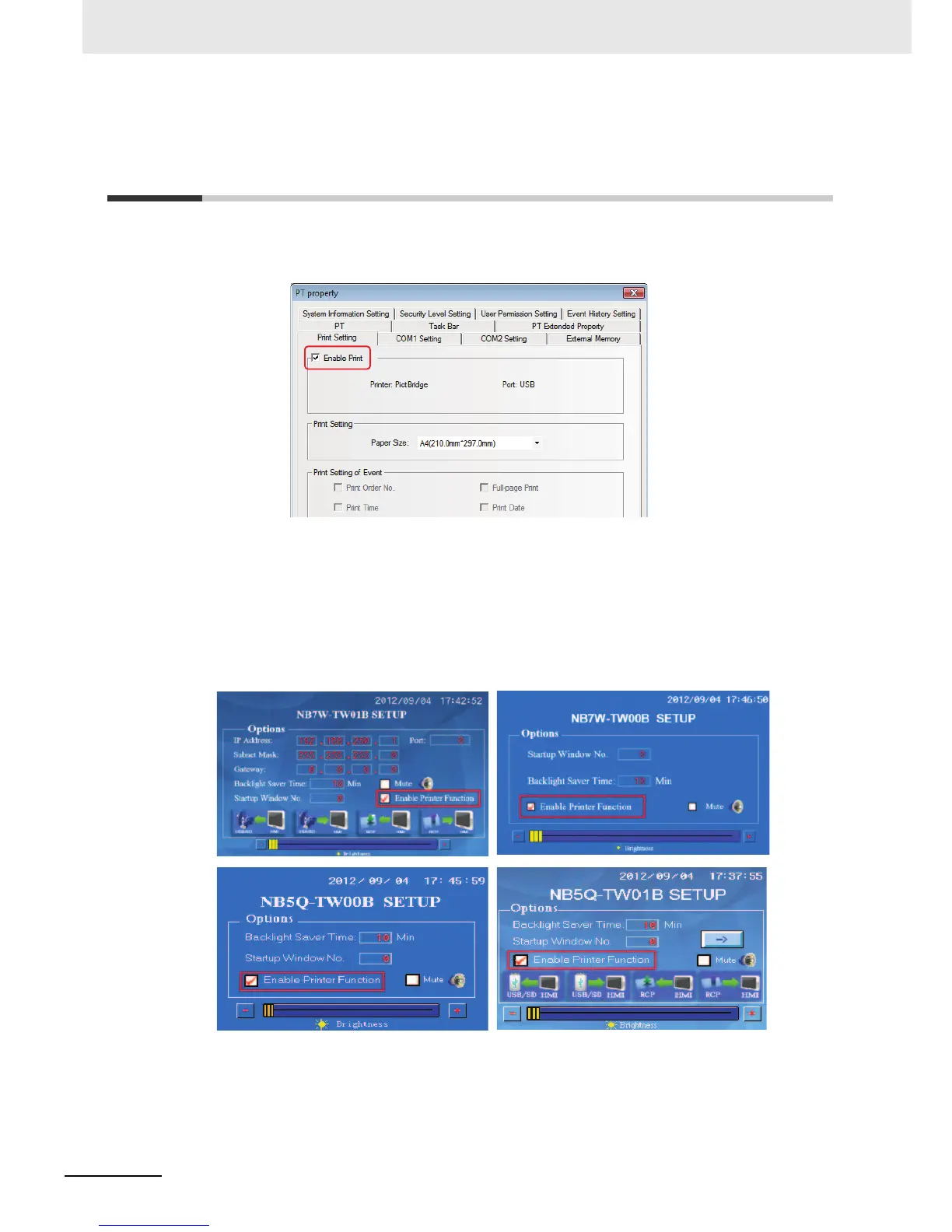

7-2 Setting Method for Using Printing
Function
1
After the project being completed, compile it with the [Enable Print] option in the [Print Setting]
tab in the [PT Property] dialog box being checked.
2
Set the DIP switches SW1 and SW2 on the back side both to ON. Then press the Reset switch,
and restart the NB Unit to enter the System Setting Mode. Then download project to the NB Unit
after the compilation is completed.
3
Check the “Enable Printer Function” option to enable the printing operation.
The locations of “Enable Printer Function” in the System Setting Mode for different PTs (NB10W
is the same as NB7W, and NB3Q is the same as NB5Q.) are shown as follows:
4
Set the DIP switches SW1 and SW2 both to OFF, and restart the NB unit to enter the User
Project Mode.
5
Use the USB cable to connect the USB Slave port on the back side of NB Unit with the printer
for printing.
To Next Page
