3-187
3 Functions of NB-Designer
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
3-6 Parts
3
3-6-27 Touch Trigger
2

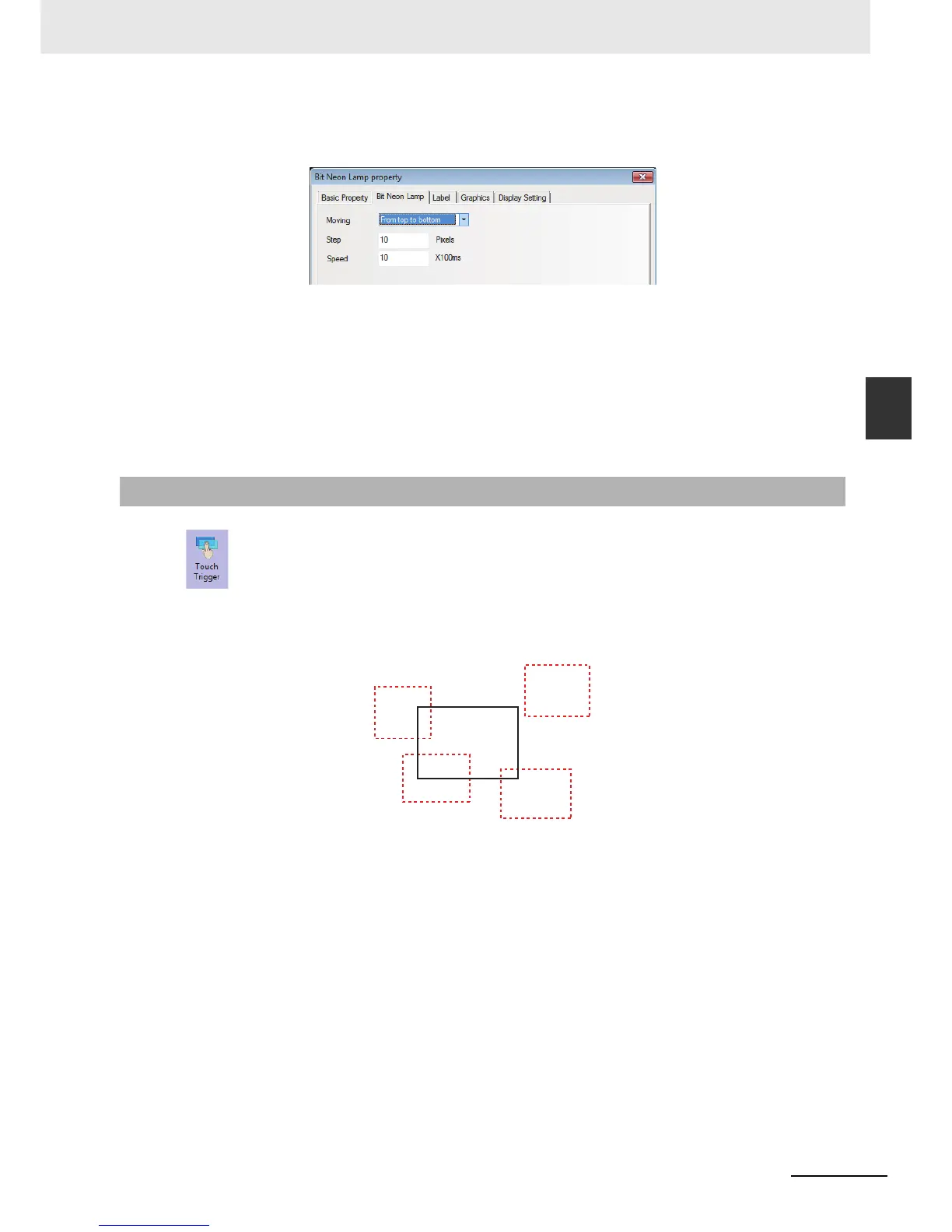

Switch to the [Bit Neon Lamp] tab and make settings of “Moving Type”, “Step” and “Speed”
respectively.
3
Switch to the [Label] tab and add the text corresponding to the state.
4
Switch to the [Graphics] tab and select the Vector Graphics or bitmap representing the
touching area and touching state.
5
Press the [OK] button to complete the setup of the Bit Neon Lamp component.
The Touch Trigger component is applicable to the conditions where the several components can
be triggered to act not through the triggering method. When the triggering conditions for the specified
memory of the Touch Trigger component are satisfied, the components placed in the valid area for the
Touch Trigger component can be triggered to act.
1), 3) and 4) locate in the valid triggering area, while 2) locates in the invalid triggering area.
Therefore, when the set triggering conditions for the specified memory of the Touch Trigger component
are satisfied, the components in area 1), 3) and 4) will be triggered, while that in area 2) will not be
triggered.
3-6-27 Touch Trigger
Touch Trigger
component
2)
3)
4)
1)
