Editing component function
For the Copy and Paste operations, if a component is copied in the same screen, the copied
component will be placed in the position deviated 10-pixel away the original position. If the
component is copied in different screen, the copied component will be placed in the position of
the original position.
If multiple components are operated by the functions such as “Arrange Width”, “Arrange
Height”, and “Arrange Size”, the specific operation process is as follows: Select one component
as the reference, then perform “Width”, “Height”, or “Size” modifications. (If you use the “Shift”
key to select, then the component firstly selected should be as the reference, while the
component at the leftmost should be used as the reference during the selection made by
dragging the mouse. The selected mark for the reference is indicated by the solid rectangle,
while the selected mark for the other components is indicated by the hollow rectangle.)
2
Proportionally zoom multiple components simultaneously

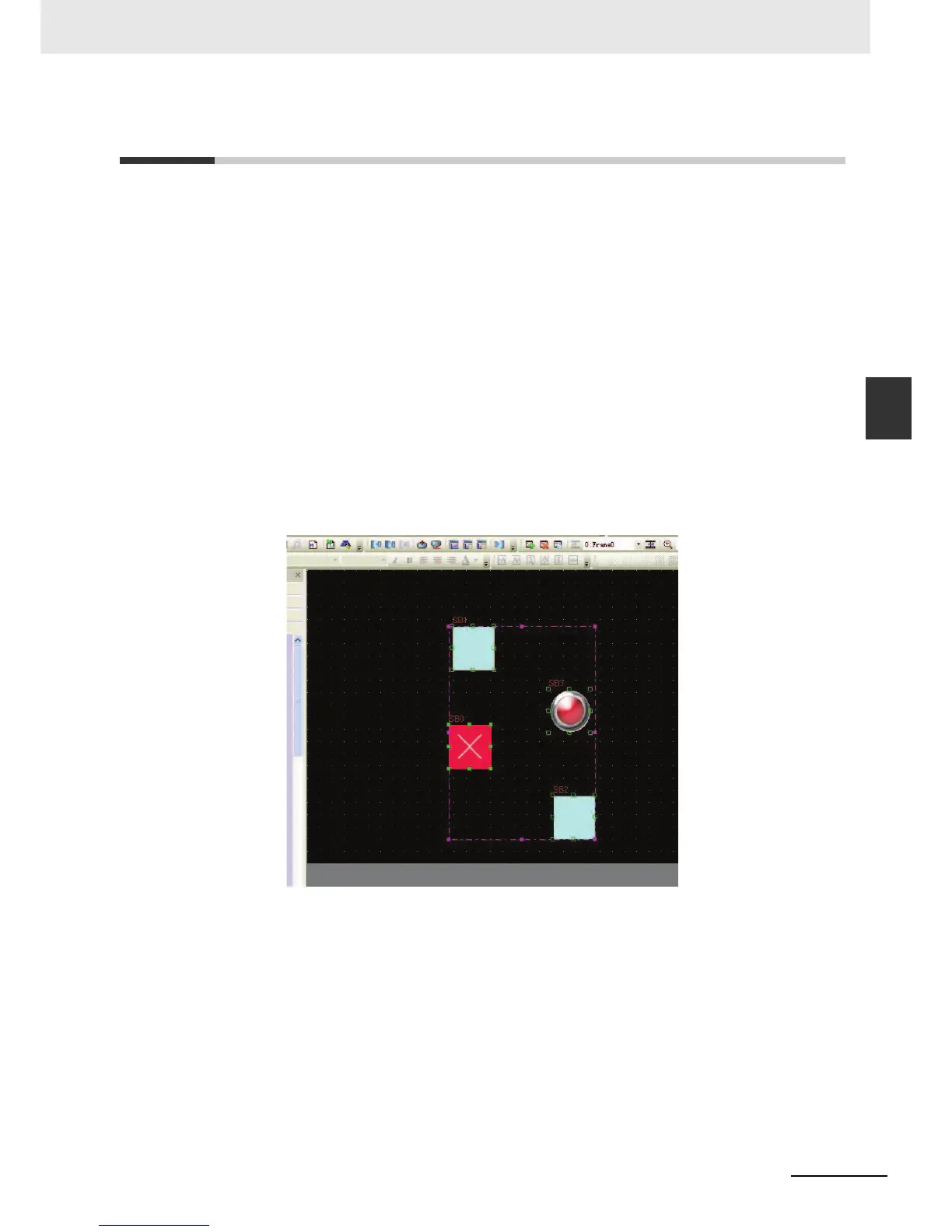

When the multiple components in the editing screen are selected together, selected area will
appear, and the user resize the multiple components simultaneously dragging by mouse each
point on the corners.
Resize the multiple components simultaneously dragging by mouse each point on the corners.
Above, the selected area is pink.
