3 Functions of NB-Designer
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
3-7 Function Parts
3
3-7-11 Indirect Shape
The Indirect Shape component can modify the positions and sizes of the rectangle, ellipse or
line by changing the value of the memory.

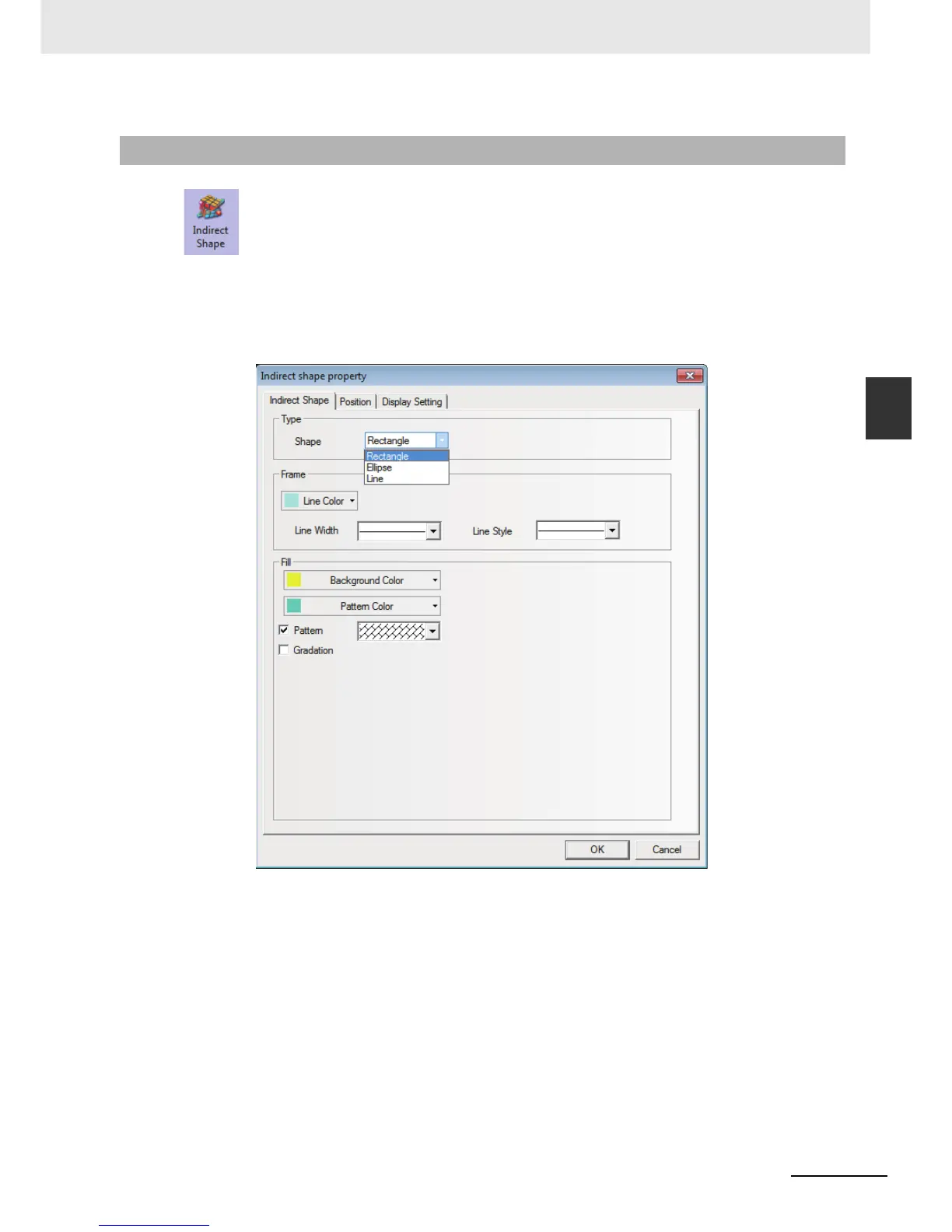

 Indirect Shape Properties
1 Indirect Shape tab
Type: Sets the shape type from the available types of the Rectangle, Ellipse and Line.
Frame/Line: Sets the Line Color, Line Width and Line Style for the rectangle and ellipse, and
line.
Fill: Sets the fill color and the fill style for the rectangle and ellipse.
