3 Functions of NB-Designer
3-298
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
The message in default can be changed to the required text.

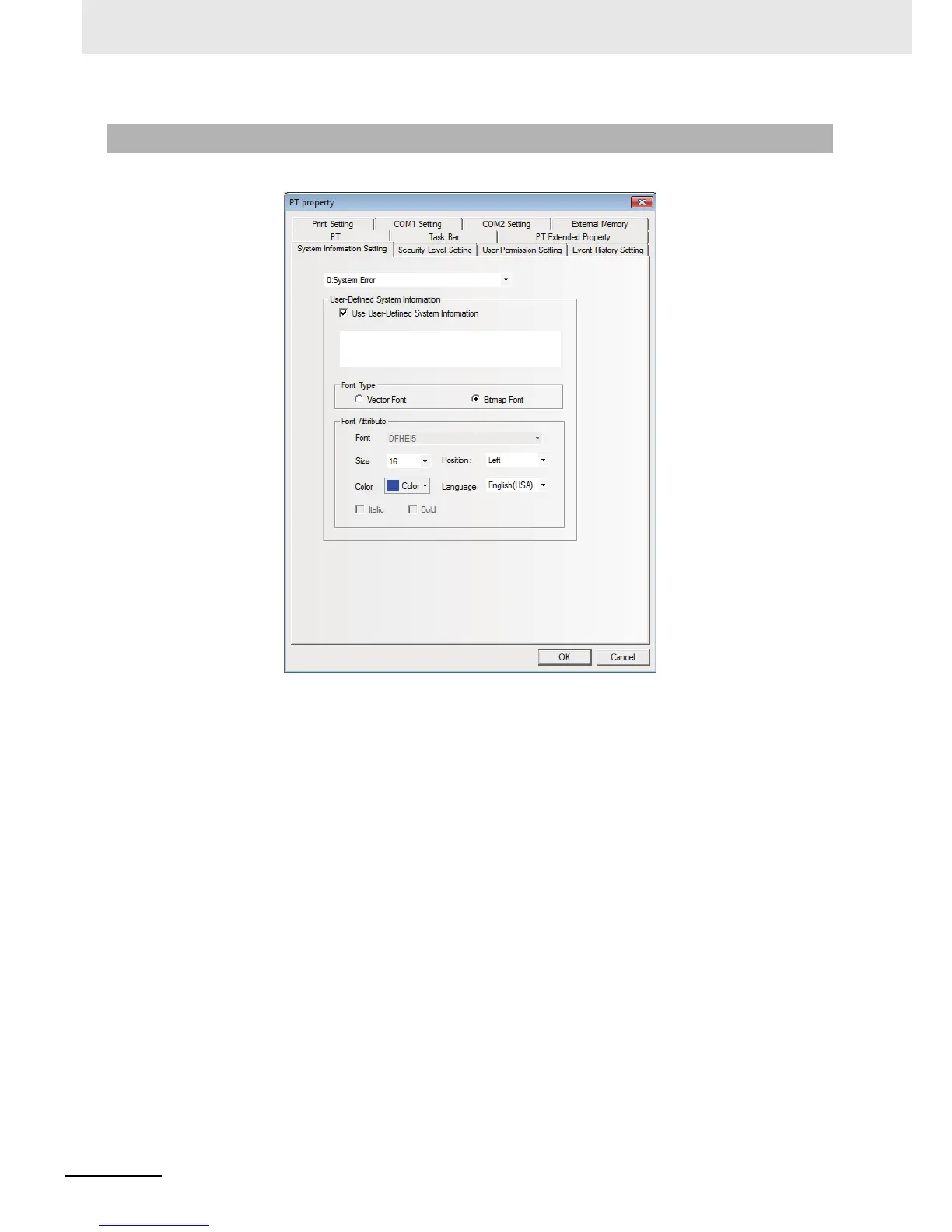

Enter the [System Information Setting] tab in PT Property, select the [Use User-Defined System
Information] option to enter the corresponding text to the item of selected system information in the text
box. This text supports Vector Font and Bitmap Font, as shown above.
Example: Change “PLC No Response” to “No Response”.
(1) Enter the [System Information Setting] tab in PT Property.
(2) Select “2: PLC No Response” in the drop-down box of the system information, and check
the [Use User-Defined System Information] option and input “No Response” in the text input
box.
(3) Use the Vector Font with the following settings, i.e. AR PL UMing CN, the size of 16, red
and Bold.
3-10-4 System Information Setting
