3 Functions of NB-Designer
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
3-6 Parts
3
3-6-4 Command Button
Read Address: Bit address controls the display information of Bit Switch such as the status,
graphic, and label.
Write Address: Bit address writes the status of On or Off controlled by the Bit Switch.
Address: Refers to the Read/Write Address corresponding to the switch.
2

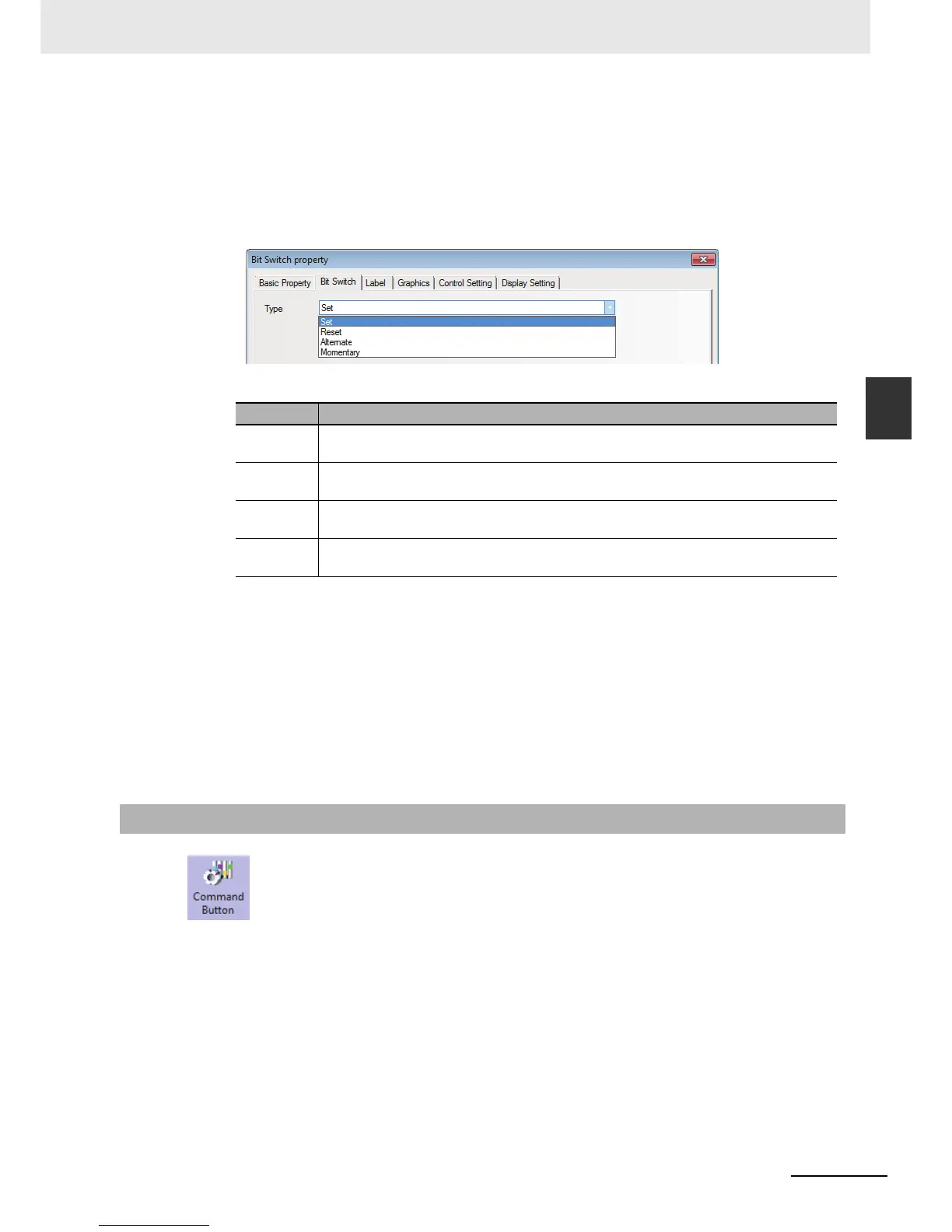

Switch to the [Bit Switch] tab and set switch type.
Types and Functions of Switch
3
Switch to the [Label] and add the text corresponding to the state.
4
Switch to the [Graphics] tab, and select Vector Graphics or bitmap to display the bit address
state and represent the touching area.
5
Switch to the [Control Setting] tab and make the Security Setting and set the Triggering action.
6
Press the [OK] button to complete the setup of the Bit Switch component.
Command Button component also defines a touching area and the state value will be input
into the specified word address when the area is enabled.
Type Descriptions
Set The specified bit address will turn On when the component is pressed. The state
remains even if the component is released.
Reset The specified bit address will turn Off when the component is pressed. The state
remains even if the component is released.
Alternate The state of the specified bit address will change once (OnOffOn) when the
component is pressed each time.
Momentary The specified bit address state will turn On or Off when the component is pressed or
released respectively.
