Setting Originals
34
3

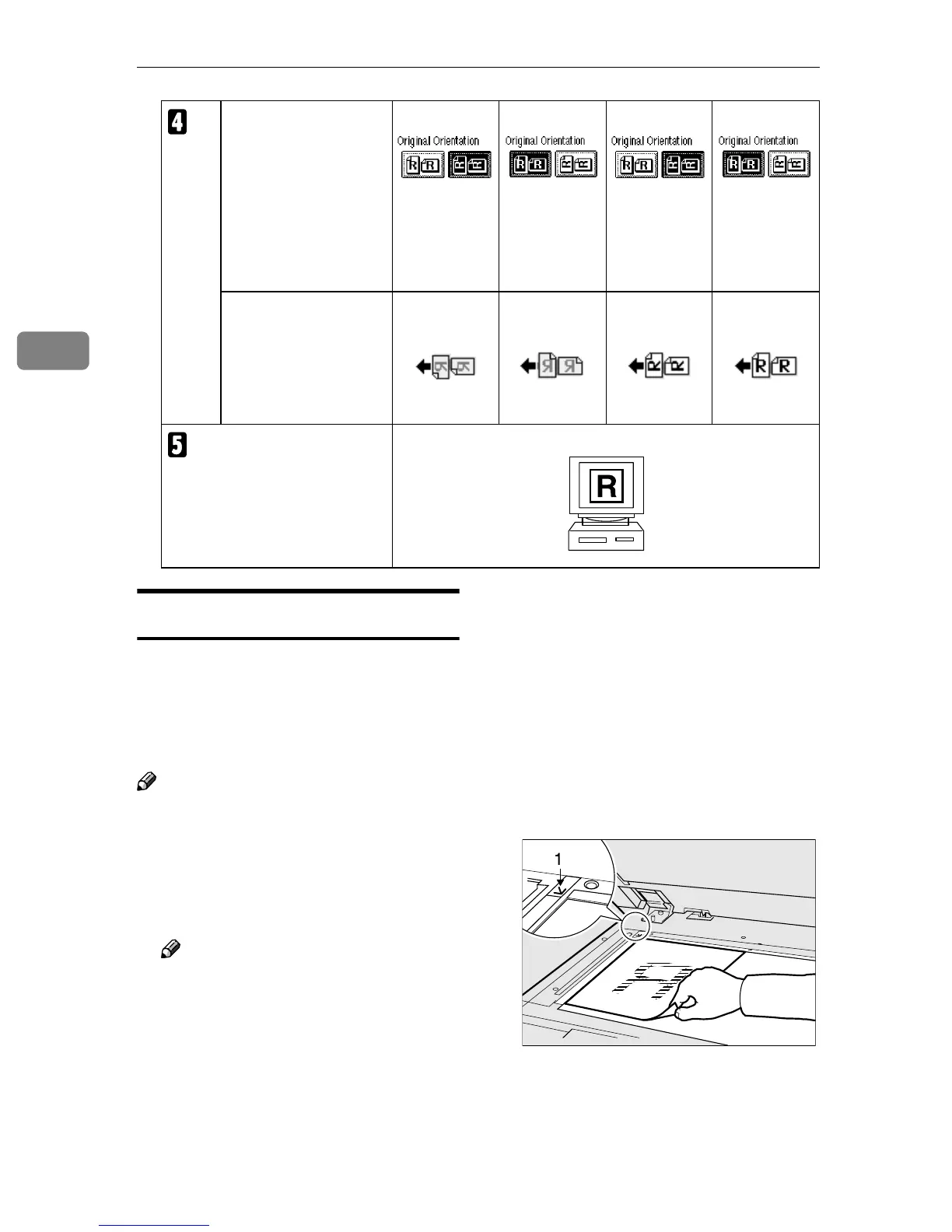

Placing on the Exposure Glass
Originals which do not fit into the
ADF, such as sheets with glued-on
parts, books, etc., can be placed di-
rectly on the exposure glass for scan-
ning.
Note
❒ For information about the origi-
nals which can be placed on the ex-
posure glass, see Copy Reference.
A
AA
A
Lift the exposure glass cover or
the ADF.
Note
❒ Lift the exposure glass cover or
ADF more than 30 degrees. The
opening/closing action triggers
the automatic original size de-
tection process.
B
BB
B
Place the original on the exposure
glass with the side to be scanned
facing down. Align the original
with the back left corner mark.
There are two original orienta-
tions.
❖
❖❖
❖ When placing the original so that
the top edge touches the rear of
the exposure glass
1. Positioning mark
Speci-
fy the
orien-
tation.
When scanning using
the e-mail function,
the Scan to Folder
function, the Docu-
ment Server function,
or the delivery scan-
ner function.
(Specified on the con-
trol panel screen)
When scanning using
the TWAIN scanner
function
(Specified in the Scan-
ner Control dialog
box)
The original displayed on a
computer
ZKNY030E
