2.12.2 Frame instructions
Function

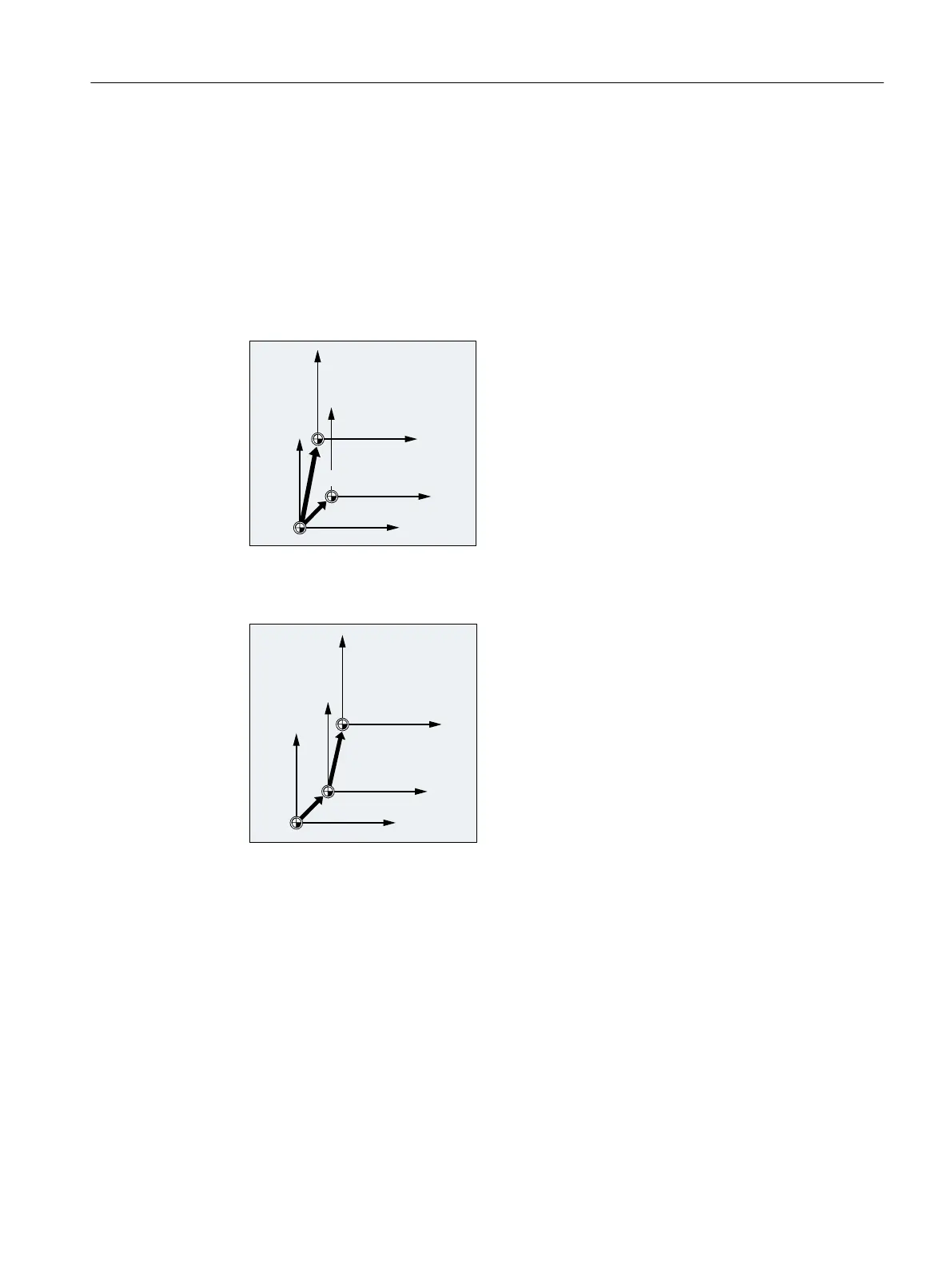

The statements for programmable frames apply in the current NC program. They function as
either additive or substitute elements:
● Substitute statement
Deletes all previously programmed frame statements. The reference is provided by the last
settable zero offset called (G54 to G57, G505 to G599).
75$16
;
;
<
<
;
<
75$16
● Additive statement
Appended to existing frames. The reference is provided by the currently set workpiece zero
or the last workpiece zero programmed with a frame statement.
75$16
$75$16
;
;
<
<
<
;
Application example
1. Move the zero point of the workpiece coordinate system (WCS).
2. Rotate the workpiece coordinate system (WCS) to orientate a plane parallel to the desired
work plane.
Fundamentals
2.12 Coordinate transformations (frames)
NC programming
Programming Manual, 12/2019, 6FC5398-2EP40-0BA0 307
