No. Tool type
220 Center drill
230 Countersink
231 Counterbore
240 Tap regular thread
241 Tap fine thread
242 Tap Whitworth thread
250 Reamer
Tool parameters

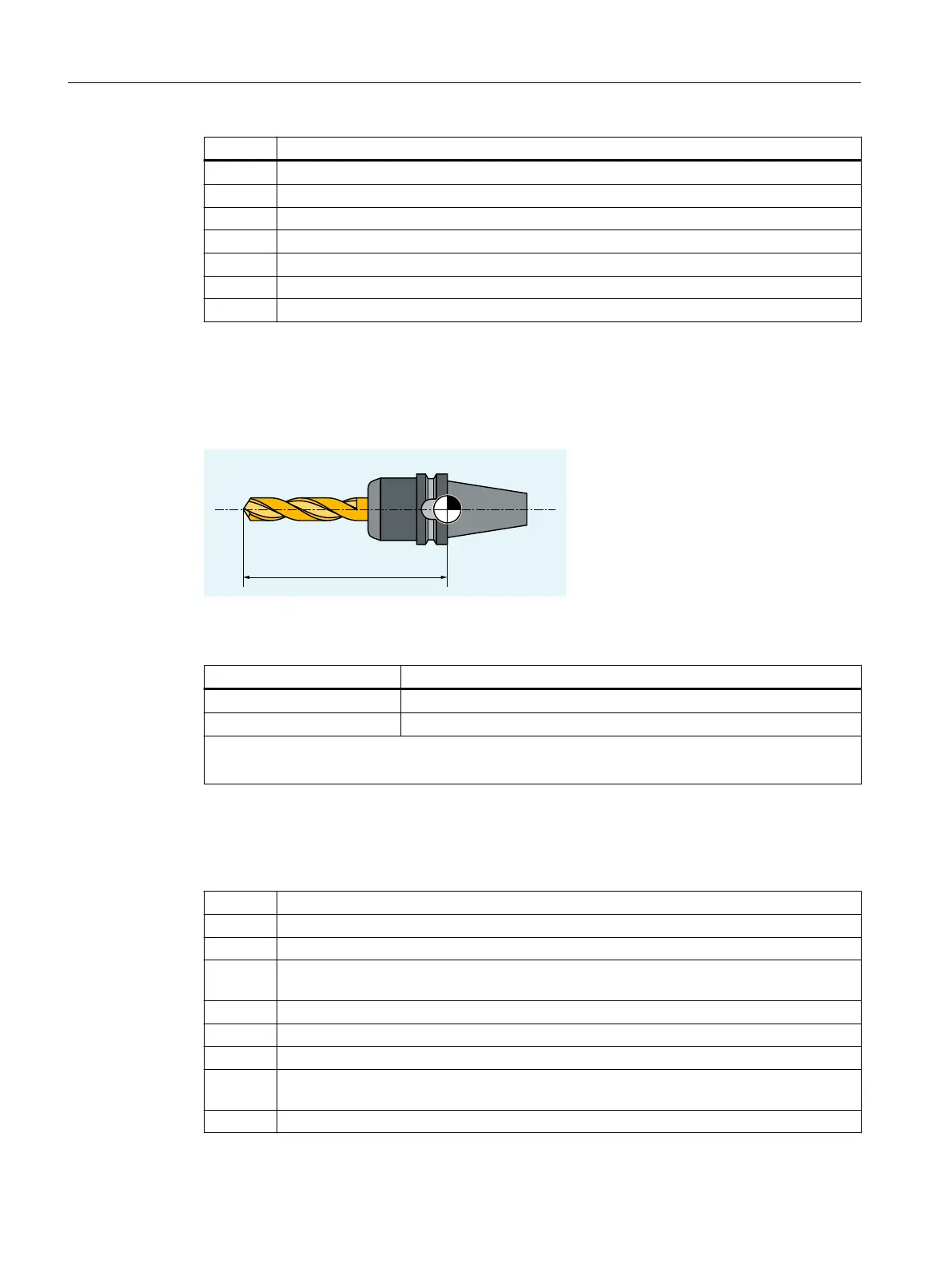

The following diagram provides an overview of which drill tool parameters are entered in the
compensation memory:
T Tool carrier reference point
L1 Length 1
Tool parameters Meaning
$TC_DP1 Tool type
$TC_DP3 Geometry - length 1
● Wear values corresponding to the requirements.
● Other values should be set to 0.
2.5.5.4 Grinding tools
The following tool types are available in the "Grinding tools" group:
400 Surface grinding wheel
401 Surface grinding wheel with monitoring
402 Surface grinding wheel without monitoring without base dimension (TOOLMAN)
403 Surface grinding wheel with monitoring without base dimension for grinding wheel periph‐
eral speed GWPS
410 Facing wheel
411 Facing wheel (TOOLMAN) with monitoring
412 Facing wheel (TOOLMAN) without monitoring
413 Facing wheel with monitoring without base dimension for grinding wheel peripheral speed
GWPS
490 Dresser
Fundamentals
2.5 Tool offsets
NC programming
74 Programming Manual, 12/2019, 6FC5398-2EP40-0BA0
