Air Bag System: 8B-53
2 1) With ignition switch OFF, disconnect “G67” connector
located near the glove box.
2) Check proper connection to instrument panel harness
connector at terminal “G67-1” and “G67-2”.
3) If OK, then connect special tools (B) and (C) to “G67”
connector disconnected in Step 1).
Special tool
(B): 09932–75010
(C): 09932–77320
4) Check SDM DTC.
With ignition switch ON, is DTC B1044 indicated?
Go to Step 3. “BLU/RED” or “YEL/
RED” circuit shorted to
power supply circuit.
(Between “G68” and
“G65” connectors)
Step Action Yes No
(B)
(C)

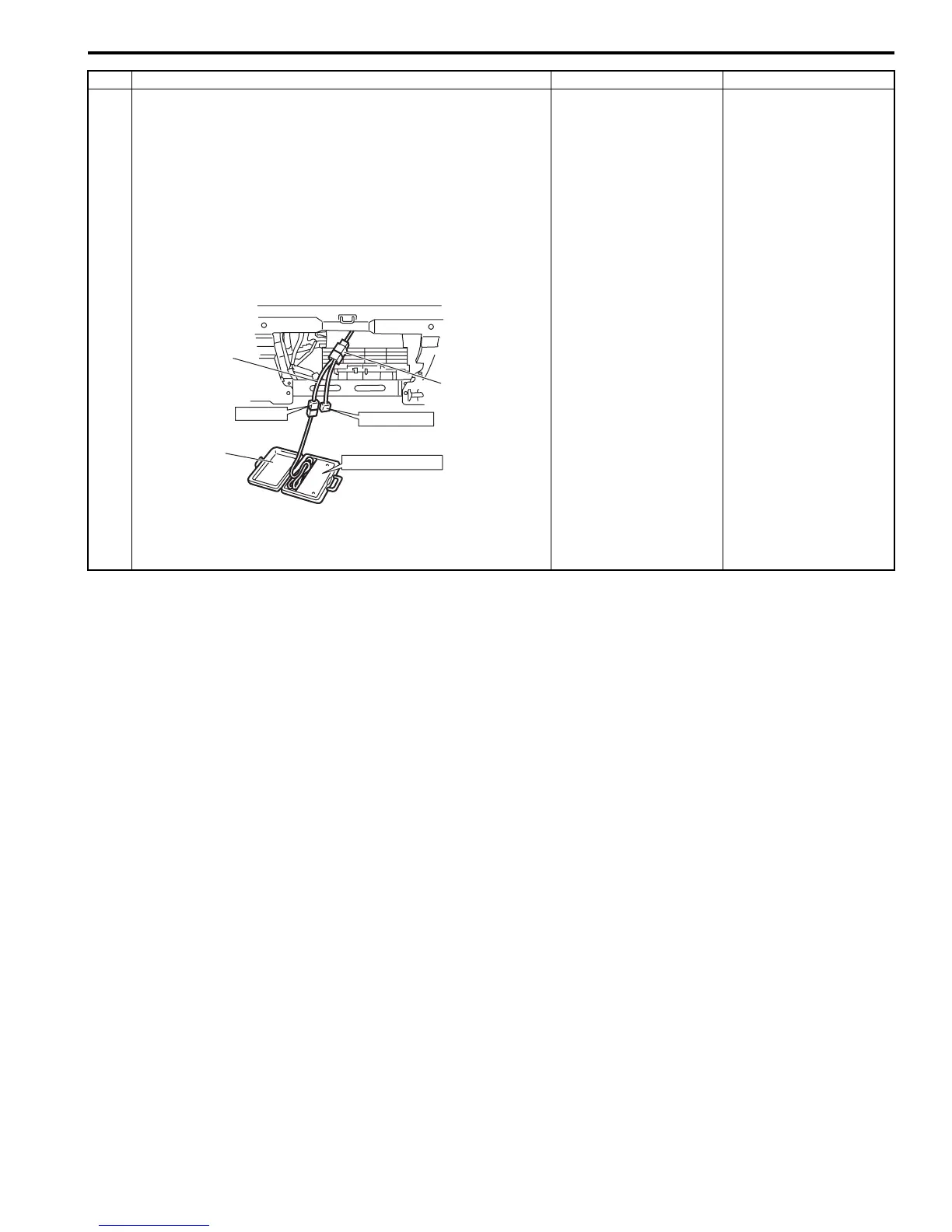

STEERING WHEEL
PASSENGER
DRIVER
“G67”
I5JB0A820034-01
