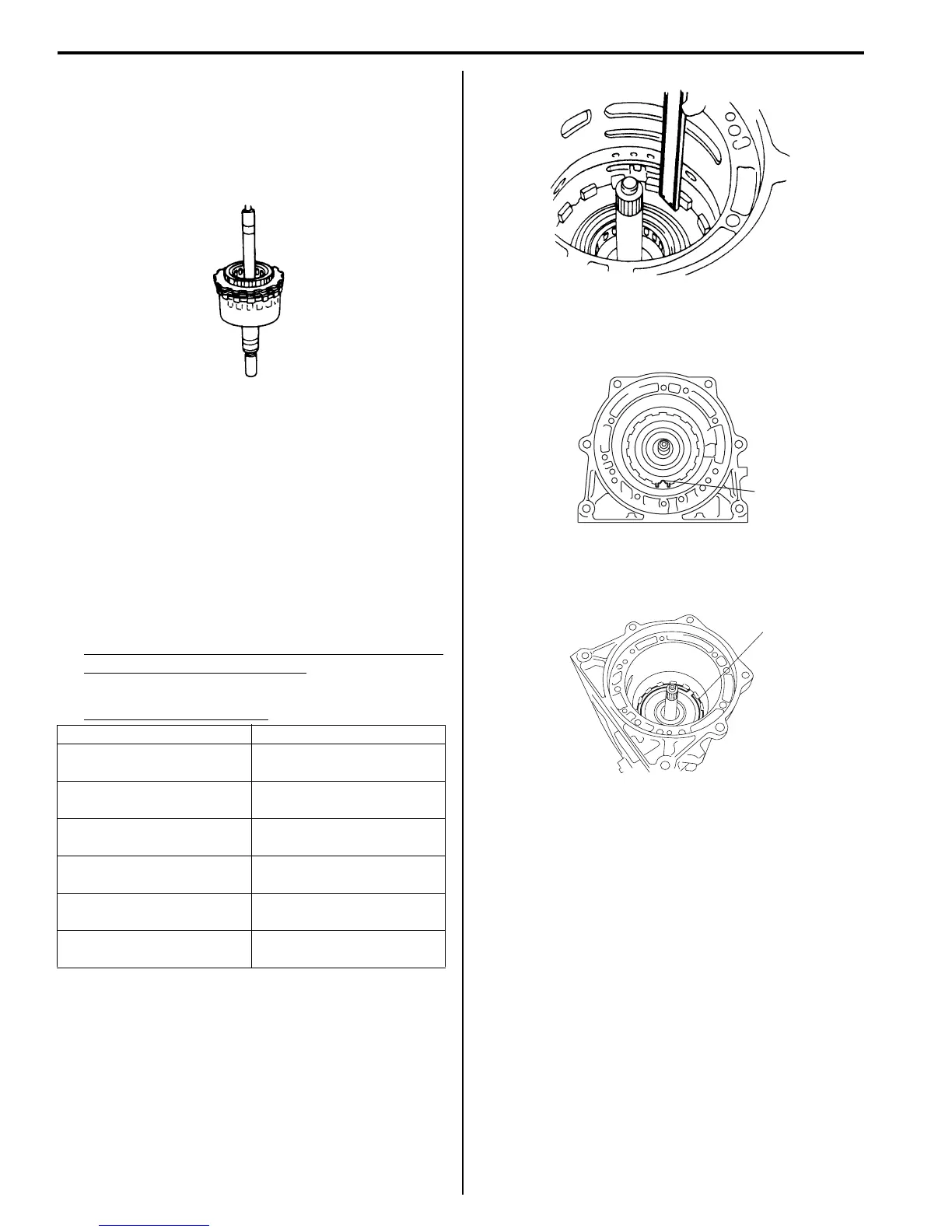

5A-128 Automatic Transmission/Transaxle:
9) Remove reverse brake reaction plate of planetary
gear assembly and align lugs of reverse brake plate,
reverse brake disc and reverse brake backing plate.
Install planetary gear assembly to transmission case
so that aligned lugs fit in groove in transmission
case.
10) Measure clearance between reverse brake plate and
lugs of transmission case.
If measured value is less than standard range, it is
possible that something is installed improperly or
dust or fluid is on reverse brake disc, etc. If it
exceeds standard range, adjust it to standard
clearance with selective reverse brake backing
plates as shown after making sure reverse brake
disc, reverse brake plate and reverse brake backing
plate are in good condition. If the clearance is out of
specification, select another plate with suitable
thickness from the list below and replace it.
Standard clearance between reverse brake plate
and lugs of transmission case
0.52 – 1.27 mm (0.020 – 0.050 in.)
Available plate thickness
11) Install reverse brake reaction plate so that its lug with
dent (1) comes to specified position as shown in
figure.
12) Using screwdriver with vinyl tape or the like wound at
its tip, install retaining reaction plate ring (1). After
installation, check that ring is in groove securely.
Identification No. Thickness
No identification
2.95 – 3.05 mm
(0.116 – 0.120 in.)
“325”
3.20 – 3.30 mm
(0.126 – 0.120 in.)
“350”
3.45 – 3.55 mm
(0.136 – 0.140 in.)
“375”
3.70 – 3.80 mm
(0.146 – 0.150 in.)
“400”
3.95 – 4.05 mm
(0.156 – 0.159 in.)
“425”
4.20 – 4.30 mm
(0.165 – 0.169 in.)
IYSQ01510241-01
IYSQ01510242-01
1
I5JB0A510132-01
1
I5JB0A510084-01
